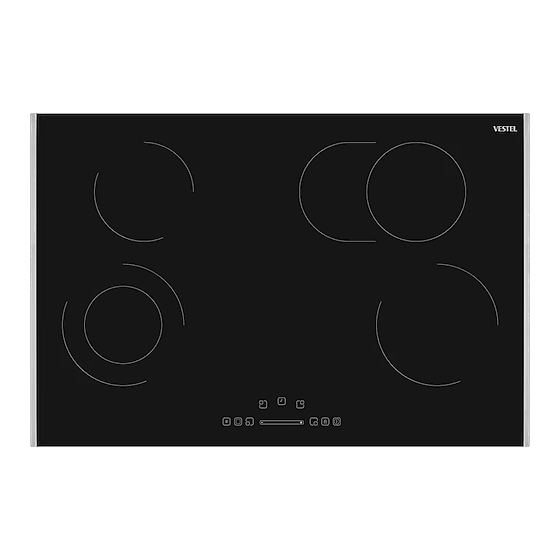

VESTEL AO-78370 S User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN
Hob / User Manual
AO-78370 S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AO-78370 S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VESTEL AO-78370 S

Summary of Contents for VESTEL AO-78370 S

  • Page 1 Hob / User Manual AO-78370 S...
  • Page 2 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Type Meaning...

  • Page 3: Table Of Contents

    CONTENTS 1.SAFETY INSTRUCTIONS ....................4 1.1 General Safety Warnings ....................4 1.2 Installation Warnings ......................6 1.3 During Use ........................7 1.4 During Cleaning and Maintenance .................7 2.INSTALLATION AND PREPARATION FOR USE ..............9 2.1 Installation of the Hob .....................9 2.2 Electrical Connection and Safety.................. 11 3.PRODUCT FEATURES ....................12 4.USE OF PRODUCT ......................13 4.1 Hob controls .........................13...

  • Page 4: Safety Instructions

    1. SAFETY INSTRUCTIONS • Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary. • This manual has been prepared for more than one model therefore your appliance may not have some of the features described within.
  • Page 5 WARNING: Danger of fire: Do not store items on the cooking surfaces. WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. • For models which incorporate a hob lid, clean any spillages off the lid before use and allow the cooker to cool before closing the lid.

  • Page 6: Installation Warnings

    CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only. It should not be used for any other purpose or in any other application, such as for non-domestic use, in a commercial environment or for heating a room.

  • Page 7: During Use

    • Protect your appliance from the atmosphere. Do not expose it to sun, rain, snow, dust or excessive humidity. • Materials around the appliance (i.e. cabinets) must be able to withstand a minimum temperature of 100°C. • The temperature of the bottom surface of the hob may rise during operation, therefore a board must be installed underneath the product.
  • Page 8 • Do not remove the control knobs to clean the control panel. • To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents when needed. CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed...

  • Page 9: Installation And Preparation For Use

    2. INSTALLATION AND PREPARATION FOR USE WARNING : This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide Minimum Minimum 42 cm 42 cm and in compliance with the current local regulations.
  • Page 10 Separator Separator • Apply the supplied one-sided self- adhesive sealing tape all the way Worktop mounting around the lower edge of the cooktop. bracket Do not stretch the tape. Self-adhesive sealing tape • Screw the 4 worktop mounting brackets on to the side walls of the appliance. EN - 10...

  • Page 11: Electrical Connection And Safety

    • Insert the appliance into the aperture. 2.2 eleCtriCal ConneCtion anD Safety WARNING: The electrical connection of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance with the current local regulations.

  • Page 12: Product Features

    3. PRODUCT FEATURES Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. List of Components 1. Ceramic Heater 2. Control Panel EN - 12...

  • Page 13: Use Of Product

    4. USE OF PRODUCT If there is no operation within 10 seconds, the display for all heaters will switch off. If the displays switch off, the heater will be 4.1 hob ControlS sent into Stand-By mode. The appliance is operated by pressing is pressed for more than 2 seconds buttons and the functions are confirmed by (in Operating-Mode), the appliance will...
  • Page 14 Triple Zone. The Triple Zone Indicator will timer (no Cooking Zone Indicator will be illuminate to confirm this. flashing, they are all on or off). Pressing again will switch off the Triple Pressing for a second time will assign a Zone of the heater.
  • Page 15 process. Child lock (and unlocking) is only pressing , a Cooking Zone Indicator will available in the S-Mode. flash for the timer it is assigned to. If no Cooking Zone Indicator flashes, the minute First, must be pressed until the buzzer minder timer value will be shown on the sounds, then simultaneously press the right Timer Display.
  • Page 16 Sensor Safety Cut-Off Operating Time Limitations Button monitoring is included to prevent the The hob control unit has a limitation on appliance from unwanted button operation. the operating time. If the heat setting for a In cases where one or more buttons are heater has not been changed for a certain pressed for longer than 12 seconds, the time, the heater will switch off automatically.

  • Page 17: Accessories

    • Make sure the bottom of the pan is dry Important: Always push the safety before placing it on the hob. cover back over the razor blade after use. • While the cooking zone is in operation, Take care when using the spatula and keep it is important to ensure that the pan is it out of the reach of children.
  • Page 18 Cleaning the Ceramic Glass Ceramic glass can hold heavy utensils but may be broken if it is hit with a sharp object. WARNING : Ceramic Cooktops - if the surface is cracked, to avoid the possibility of an electric shock, switch off the appliance and call for service.

  • Page 19: Troubleshooting&Transport

    6. TROUBLESHOOTING&TRANSPORT 6.1 troubleShootinG If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Check the household fuse for the appliance. Hob control card’s display is blacked out.
  • Page 20 52202020...
