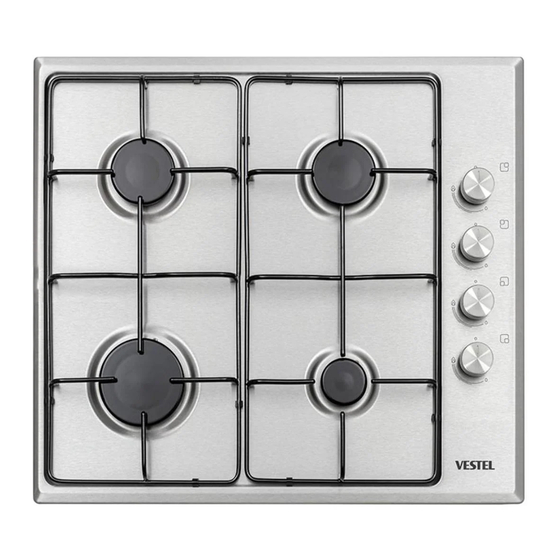

  • Page 1 BUILT-IN GAS HOB AOX-6004 DG AOB-6004...
  • Page 2 We hope you enjoy using your device. This product was manufactured in environmentally friendly VESTEL BEYAZ EŞYA A.Ş. facilities with no harm to the nature. Important Safety-Related Information Please read the instructions in this manual carefully to know your device quickly and make use of all of its functions and keep for future reference.

  • Page 3: Table Of Contents

    CONTENTS: 1. BRIEF PRESENTATION OF PRODUCT 2. WARNINGS 3. INSTALLATION AND PREPARATIONS FOR USE Installation of product 3.2 Gas connection 3.3 Electric connection and safety 3.4 Gas conversion 4. USE OF YOUR PRODUCT 4.1 Use of gas burners 4.2 Use of hotplate 4.3 Accesorries 5.

  • Page 4: Brief Presentation Of Product

    1. BRIEF PRESENTATION OF PRODUCT The visuals used in the operating manual are intended for providing information on the components of the appliance only. Components may differ as per appliance model. It is important that you should read this manual for best performance and to extend the life of your appliance.

  • Page 5: Warnings

    2. WARNINGS READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE USING YOUR APPLIANCE, AND KEEP IT IN A CONVENIENT PLACE FOR REFERENCE WHEN NECESSARY. THIS MANUAL IS PREPARED FOR MORE THAN ONE MODEL IN COMMON. YOUR APPLIANCE MAY NOT HAVE SOME OF THE FEATURES THAT ARE EXPLAINED IN THIS MANUAL.
  • Page 6 - WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. - WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
  • Page 7 2. WARNINGS -Do not use steam cleaners for cleaning the appliance. -Your appliance is produced in accordance with all applicable local and international standards and regulations. - Maintenance and repair work must be made only by authorized service technicians. Installation and repair work that is carried out by unauthorized technicians may endanger you.
  • Page 8 - This appliance is not connected to a combustion products evacuation device. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation. - If after 15 s the burner has not lit, stop operating the device and open the compartment door and/or wait at least 1 min before attempting a further ignition of the burner.
  • Page 9 2. WARNINGS Installation Warnings - Do not operate the appliance before it is fully installed. - The appliance must be installed by an authorized technician and put into use. The producer is not responsible for any damage that might be caused by defective placement and installation by unauthorized people.
  • Page 10 During usage - Do not put flammable or combustible materials, in or near the appliance when it is operating. - Do not leave the cooker while cooking with solid or liquid oils. They may catch fire on condition of extreme heating. Never pour water on to flames that are caused by oil.
  • Page 11 - Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present. During cleaning and maintenance - Always turn the appliance off before operations such as cleaning or maintenance.
  • Page 12 Information related to transport If you need any transport; keep the original case of product and carry it with its original case when needed to be carried. Follow the transport signs on packaging. Tape the hob on upper parts, caps and crowns and pan supports to the cooking panels.

  • Page 13: Installation And Preparations For Use

    3. INSTALLATION AND PREPARATIONS FOR USE Important: This appliance must be installed by a qualified people according to the manufacturers installation instructions, local building regulations, gas authority codes and electrical wiring instructions. 3.1. Installation of your product Advice for the installer Important •...
  • Page 14 3. INSTALLATION AND PREPARATIONS FOR USE • For rooms with a volume of between 5 m and 10 m a permanent ventilation of 50 cm free area will be required unless the room has a door which opens directly the outside air in which case no permanent ventilation is required.
  • Page 15 3. INSTALLATION AND PREPARATIONS FOR USE • Place the hob in the cut out. Then mark the location of the hob on the cooktop with a marker. • Take out the hob. Place the gasket on the line you merked. Be sure the line centres the gasket.
  • Page 16 Technical Specifications AOX-6004 AOX-6004 DG Model AOB-6004 AOW-6004 Product Dimensions (HeightxWidthxDepth) (Including control panel) 39 x 580 x 510 Banko Boşaltması...

  • Page 17: Gas Connection

    3. INSTALLATION AND PREPARATIONS FOR USE • Carefully trim away the excess sealing material “C” from around the appliance. Important: If the appliance is to be installed above a cupboard or drawer it is absolutely assential that you place a seperator between the base of the appliance and the drawer unit. Emptying of the Burned Gases from Environment The cooking appliances that operate with gas, throw the burned gas wastes out directly to the outside or through the cooker hoods that are connected to the a chimney that opens directly to the...

  • Page 18: Electric Connection And Safety

    3. INSTALLATION AND PREPARATIONS FOR USE During connections always keep the nut on the gas manifold fixed, while rotating the counter-part. Use spanners of appropriate size for safe connection. For all surfaces between different components, always use the seals provided in the gas conversion kit. The seals used during connection should also be approved to be used in gas connections.

  • Page 19: Gas Conversion

    3. INSTALLATION AND PREPARATIONS FOR USE • You have to ensure the power cord with suitable insulation to be connected to the power source during the connection. If there is no appropriate earthed electric outlet in accordance with regulations in the place where the appliance to be installed, contact to our authorized service. The earthed electric outlet must be close to the appliance.
  • Page 20 3. INSTALLATION AND PREPARATIONS FOR USE Spanner Injector Figure 7 Figure 6 Adjusting the reduced flame position: The flame length in the minimum position is adjusted with a flat screw located on the valve. For valves with flame failure device, the screw is located on the side of the valve spindle(Figure 8-9). For valves without flame failure device, the screw is located inside the valve spindle(Figure 10).

  • Page 21: Use Of Your Product

    4. USE OF YOUR PRODUCT 4.1 Use of gas burners Ignition of the burners To determine which knob controls which burner, check the position symbol above the knob. • Manual Ignition If your appliance is not equipped with any ignition aid or in case there is a failure in the electric network, follow the procedures listed below: To ignite one of the burners, press and turn its knob counter-clockwise so that the knob is in maximum position, approach a match, taper or another manual aid to its upper circumference.
  • Page 22 4. USE OF YOUR PRODUCT Control of the hob burners OFF position MAX. position MIN. position MODULATE Figure 12 The knob has 3 positions: Off (0), maximum (big flame symbol) and minimum (small flame symbol). After you ignite the burner in maximum position; you can adjust the flame length between maximum and min.

  • Page 23: Use Of Hotplate

    4. USE OF YOUR PRODUCT Make sure that the tips of the flames do not spread out of the outer circumference of the pan, as this may also harm the plastic accessories around the pan (handles etc.). Figure 14 When the burners are not in use for prolonged periods, always turn the main gas control valve off. Warning: •...
  • Page 24 4. USE OF YOUR PRODUCT Hotplate Knob Position - Function 0 Off position 1 To melt butter etc. and to warm small quantities of liquid. 2 To warm bigger quantities of liquid. To prepare creams and sauces. 3 To defrost food for cooking 4 To cook delicate meat and fish 5 To roast meat and steak 6 To boil big quantities of liquid or to fry.

  • Page 25: Accesorries

    4. USE OF YOUR PRODUCT • To ensure long life, the hotplate must be thoroughly cleaned with appropriate cleaning products. To avoid rustiness and to keep them new it is recommended to rub the hotplate lightly with tissue with a small amount of oil. Do not use a steam cleaner. •...

  • Page 26: Cleaning And Maintenance

    5. CLEANING AND MAINTENANCE 5.1 Cleaning Be sure that all control switches are off and your appliance cooled before cleaning your oven. Plug off the appliance. Check whether they are appropriate and recommended by the manufacturer before using the cleaning materials on your oven. As they may damage the surfaces, do not use caustic creams, abrasive cleaning powders, thick wire wool or hard tools.

  • Page 27: Maintenance

    5. CLEANING AND MAINTENANCE Cleaning hotplates: Clean the hotplates with a damp sponge and then dry them by turning them on for a few seconds. To maintain their appearance, apply a small amount of oil on the surface of hotplates. The hotplate trim rings can be cleaned with products intended for stainless steel.

  • Page 28: Service And Transport

    When you notice an abnormal situation in your appliance, you may attempt to troubleshoot according to the following descriptions. If your appliance does not still operate properly, contact to Vestel Call Center. You may access the authorized services list from the eb site.
  • Page 29 INJECTOR TABLE G30 28-30mbar 7,5 kW 545 G20 20 28-30 I2H3B/P Class: 3 mbar mbar LARGE BURNER DIA. of INJECTOR (1/100mm) NOMINAL RATING (KW) CONSUMPTION 285,7 l/h 218,1 g/h MEDIUM BURNER DIA. of INJECTOR (1/100mm) NOMINAL RATING (KW) 1,75 1,75 CONSUMPTION 166,7 l/h 127,2 g/h MEDIUM BURNER...
  • Page 30 Brand AOX-6004 AOX 6004 DG Model AOB-6004 AOW-6004 Type of Hob Number of Cooking Zones Heating Technology-1 Size-1 Auxiliary Energy Efficiency-1 Heating Technology-2 Size-2 Semi-Rapid Energy Efficiency-2 59,0 Heating Technology-3 Size-3 Semi-Rapid Energy Efficiency-3 59,0 Heating Technology-4 Size-4 Rapid Energy Efficiency-4 57,0 Energy Efficiency of Hob 58,3...
  • Page 31 Disposal of the Appliance in an Environmental Friendly Manner This symbol on the appliance or on the packaging of the appliance indicates that the appliance shall be handled as household waste. Instead of this, it shall be delivered to the applicable waste collection point where electrical and electronic equipment are recycled.
  • Page 32 Optional Rights of Customer Consumer may exercise any of his/her optional rights below within two years of expiry period starting with the date of delivery of the good to the consumer if the good is found to be defective as per the provisions of Law on the Protection of Consumers no. 6502, even if the defect is found later;...
