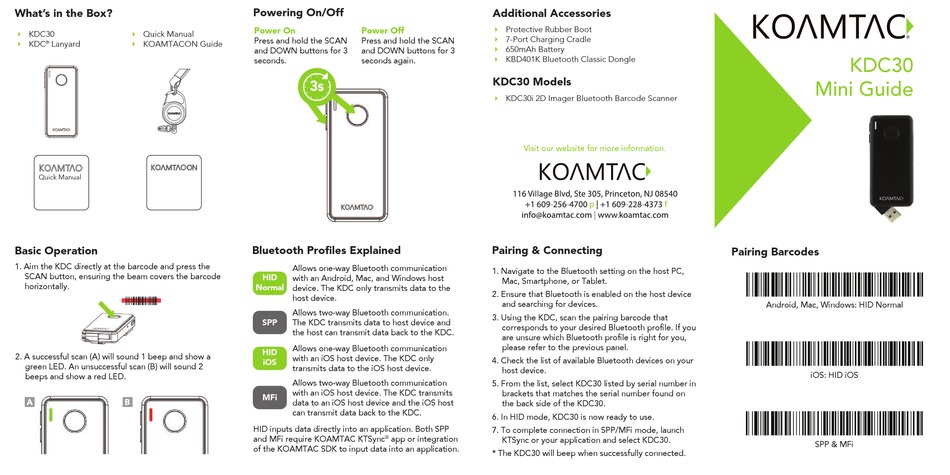

KoamTac KDC30i Mini-Manual

What's in the Box?
KDC30 Quick Manual
• •
KDC Lanyard Koamtacon Guide
• ® •
Quick Manual

Basic Operation

1. Aim the KDC directly at the barcode and press the
SCAN button, ensuring the beam covers the barcode
horizontally.
2. A successful scan (A) will sound 1 beep and show a
green LED. An unsuccessful scan (B) will sound 2
beeps and show a red LED.

Powering On/Off

Power On Power Off
Press and hold the SCAN Press and hold the SCAN
and DOWN buttons for 3 and DOWN buttons for 3
seconds. seconds again.
3s
Bluetooth Pro les Explained
Allows one-way Bluetooth communication
HID
with an Android, Mac, and Windows host
Normal
device. The KDC only transmits data to the
host device.
Allows two-way Bluetooth communication.
SPP The KDC transmits data to host device and
the host can transmit data back to the KDC.
Allows one-way Bluetooth communication
HID
with an iOS host device. The KDC only
iOS
transmits data to the iOS host device.
Allows two-way Bluetooth communication
with an iOS host device. The KDC transmits
MFi
data to an iOS host device and the iOS host
can transmit data back to the KDC.
HID inputs data directly into an application. Both SPP
and MFi require KOAMTAC KTSync app or integration
®
of the KOAMTAC SDK to input data into an application.
Additional Accessories
Protective Rubber Boot
•
7-Port Charging Cradle
•
650mAh Battery
•
KBD401K Bluetooth Classic Dongle
•
KDC30 Models

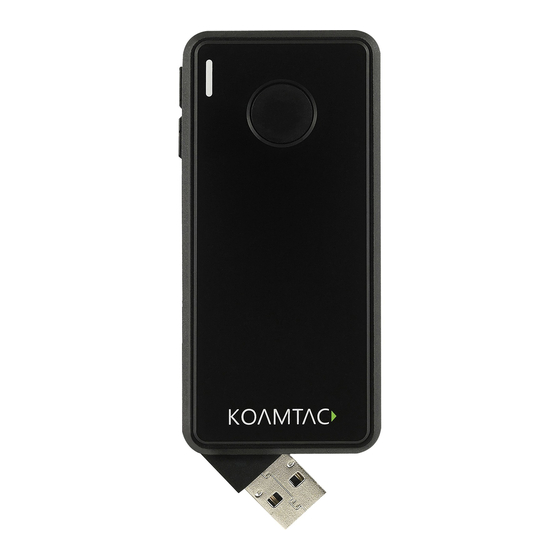

KDC30i 2D Imager Bluetooth Barcode Scanner
•
Visit our website for more information.
Pairing & Connecting
1. Navigate to the Bluetooth setting on the host PC,
Mac, Smartphone, or Tablet.
2. Ensure that Bluetooth is enabled on the host device
and searching for devices.
3. Using the KDC, scan the pairing barcode that
corresponds to your desired Bluetooth profile. If you
are unsure which Bluetooth profile is right for you,
please refer to the previous panel.
4. Check the list of available Bluetooth devices on your
host device.
5. From the list, select KDC30 listed by serial number in
brackets that matches the serial number found on
the back side of the KDC30.
6. In HID mode, KDC30 is now ready to use.
7. To complete connection in SPP/MFi mode, launch
KTSync or your application and select KDC30.
* The KDC30 will beep when successfully connected.
®
KDC30
Mini Guide

Pairing Barcodes

Android, Mac, Windows: HID Normal
iOS: HID iOS
SPP & MFi
