KDC380 QG
Quick Guide
Type-C USB Version
116 Village Blvd, Suite 305, Princeton, NJ 08540 USA
©2020-2022 KOAMTAC, Inc.
T: + 1-609-256-4700 F: +1-609-228-4373
QG_KDC380_20220624
info@koamtac.com
www.koamtac.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KDC380 QG and is the answer not in the manual?

Questions and answers

Summary of Contents for KoamTac KDC380 QG

  • Page 1 KDC380 QG Quick Guide Type-C USB Version 116 Village Blvd, Suite 305, Princeton, NJ 08540 USA ©2020-2022 KOAMTAC, Inc. T: + 1-609-256-4700 F: +1-609-228-4373 QG_KDC380_20220624 info@koamtac.com www.koamtac.com...
  • Page 2: Table Of Contents

    KDC380 QG Quick Guide Contents Product Introduction ............................. 2 KDC380 Diagram ............................2 How to turn on and off ..........................2 Pairing (Bluetooth or NFC) ............................ 3 Bluetooth Profiles Explained ......................... 3 Bluetooth Pairing a KDC380 to your smart device with special barcodes ..........4 Bluetooth Pairing a KDC380 to your smart device with NFC (Android Only) ...........
  • Page 3: Product Introduction

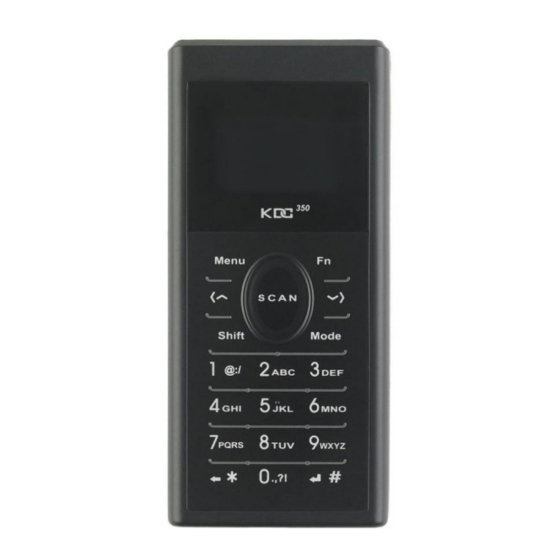

    KDC380 QG Quick Guide Product Introduction The KDC380 Bluetooth barcode scanner is a 1D Laser/CCD or 2D Imager Bluetooth Barcode Data Collector supporting Bluetooth Low Energy (BLE) v5.0. 1.1 KDC380 Diagram Type-C USB Port 1.2 How to turn on and off Refer to the figure in section 1.1 to locate the SCAN and DOWN buttons.
  • Page 4: Pairing (Bluetooth Or Nfc)

    KDC only transmits data to the Windows PC. Note: HID inputs data directly into an application. SPP requires the KOAMTAC KTSync® app or integration of KOAMTAC SDK to input data into an application. To gain access to the SDK, please complete the form here: https://www.koamtac.com/sdk/...
  • Page 5: Bluetooth Pairing A Kdc380 To Your Smart Device With Special Barcodes

    KDC380 QG Quick Guide 2.2 Bluetooth Pairing a KDC380 to your smart device with special barcodes Bluetooth Profile & Pairing #1. HID-BLE & Pairing (Android, iOS, Mac) #2. HID-Windows & Pairing (Windows) #3. SPP-BLE & Pairing (Android, iOS, Mac, Windows) a.
  • Page 6: Bluetooth Pairing A Kdc380 To Your Smart Device With Nfc (Android Only)

    KDC380 QG Quick Guide e. In SPP Profile for iOS, the KDC is NOT listed on your host device, so you should launch KTSync or your application and select the KDC 380 listed by serial number in bra ckets that matches the serial number found on the back side of the KDC 380.
  • Page 7: Usage

    KDC380 QG Quick Guide Usage 4.1 Using Keyboard Wedge (HID Keyboard) This option is only available using Bluetooth connection with HID profile. Once the KDC is paired with the host, open any application with a text field and tap on the text field. Scan any barcode and it will populate in the text field.
  • Page 8 KDC380 QG Quick Guide In Always-pairing mode, an application can connect to a KDC without reading a pairing barcode, so the connection procedure is a little different. a) In the KTSync app, tap the Connect icon at the bottom left of the app.
  • Page 9: Using Ktsync Keyboard - Android

    KDC380 QG Quick Guide 4.3 Using KTSync Keyboard – Android Once your KDC is connected to KTSync, you can use your KDC as a keyboard. a) While KTSync is running in the background, navigate to Settings > Language & Input > Virtual Keyboard >...
  • Page 10: Using Ktsync Keyboard - Ios

    KDC380 QG Quick Guide 4.4 Using KTSync Keyboard – iOS Once your KDC is connected to KTSync, you can use your KDC as a keyboard. a) Navigate to the iPhone/iPad/iPod Settings > General > Keyboard > Keyboards > Add New Keyboard...
  • Page 11: Using Other Developed Applications With Sdk - Android/Ios

    Quick Guide 4.5 Using other Developed Applications with SDK – Android/iOS A Software Development Kit (SDK) for Android and iOS is available to all KOAMTAC customers to ensure smooth development of applications that work seamlessly with a KDC scanner. It’s easy to request the SDK from the...
  • Page 12: Product Specifications

    KDC380 QG Quick Guide Product Specifications Design Companion Bluetooth Barcode Scanner 1.7” x 3.7” x 0.9” Physical Size (43 mm x 94 mm x 24 mm) Weight 3.0 oz (85 g) Supporting OS Android / iOS / Windows / Mac OS X...
  • Page 13 KDC380 QG Quick Guide Regulatory CE, FCC, KC, J-MIC, VCCI, SRRC, RoHS Compliant Charging Cradle Yes (1-slot / 4-slot) Accessories Finger Trigger Glove / Ring Protective Boot See Reference Manual for more detailed information. Visit store.koamtac.com to purchase additional products and accessories.
  • Page 14: Social Distancing Feature

    - the need to maintain distance between people for their health and safety. Reopening your business is already an undertaking but ensuring social distance among your workers is made easy with the KOAMTAC social distancing feature.
  • Page 15: Enabling The Social Distancing Feature Via The Kdc Menu

    KDC380 QG Quick Guide 6.2 Enabling the Social Distancing Feature via the KDC Menu If you prefer to enable the social distancing feature by navigating through the KDC menu, then follow the instructions below: a) From KDC BLE Config menu, select Social Dist. to configure...
  • Page 16 KDC380 QG Quick Guide Host Alert Enable Disable KDC Alert Beep Enable Beep Disable Vibrate Enable Vibrate Disable Store Data Enable Store Data Disable Security Key Disabled Fixed Key Custom Key See Reference Manual for more detailed information. Visit store.koamtac.com to purchase additional products and accessories.
  • Page 17: Enabling The Social Distancing Feature Via The Ktsync Application

    KDC380 QG Quick Guide 6.4 Enabling the Social Distancing Feature via the KTSync application The social distancing feature can also be configured in the KTSync application. * Note: This menu is only shown when KTSync is connected to a KDC BLE device running firmware version 050025 or higher.
  • Page 18: Examples Of Social Distance Alerts & Social Distance Alert Data

    KDC380 QG Quick Guide 6.5 Examples of Social Distance Alerts & Social Distance Alert Data Whenever the KDC is connected, the KDC is sending social distance alert data to host device if host alert is enabled and another KDC is found within the selected distance range.
  • Page 19 KOAMTAC devices and accessories are not medical devices and are not intended for use in any medical or inherently infectious setting, or where exposure to bodily or hazardous fluids may be expected, or where the risk of exposure through inhalation is high.
