Promis COLpro222DX-OZview User Manual page 8

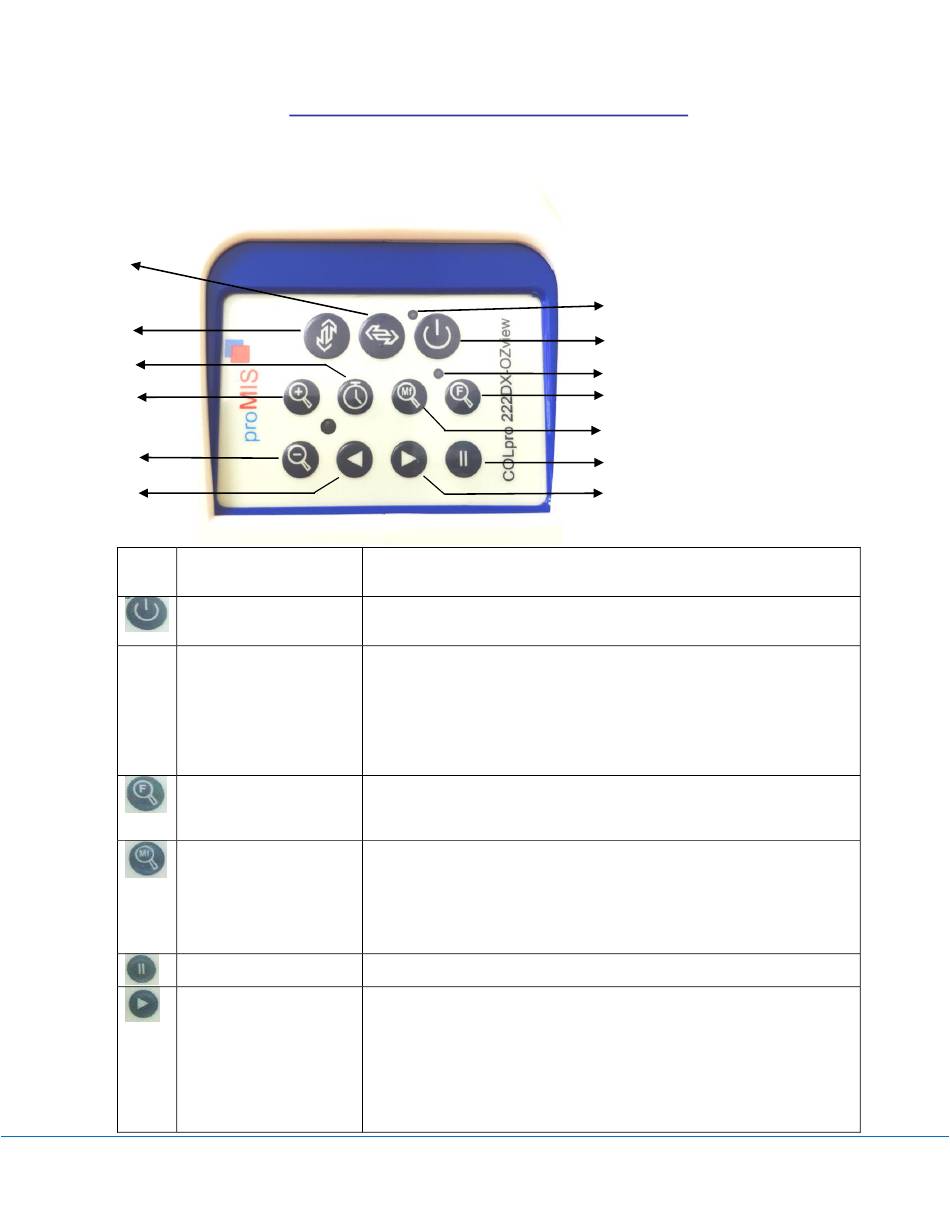

CAMERA HEAD CONTROL PANEL – FUNCTIONS
M
L
K
J
I
H
◦
LED for Power
ON/OFF Switch
◦
LED for Auto Focus
Auto Focus
Intensity Variation
Pause or Freeze
Green Filter ON
& Blue Filter
Operator's Manual Ver: PMA-VYR-0218NA-GIMA
LED next to the ON/OFF Switch lights up, when power is ON from ON/OFF
switch (B)
Press once to get the device camera and illuminator ON & if pressed again, it
will turn OFF.
If the LED next to Auto Focus lights up, it means that the camera is in the
auto focusing mode. When it goes off, it means that the device is in manual
focus mode. When the camera is in auto focus mode, it searches the object
automatically & adjusts the image clarity according to the distance between
the Colposcope & the object. When the LED goes off, then the camera is in
manual focus mode & it needs to be directed towards the object & could be
manually adjusted to the clearest image.
Under default condition, the unit stays in Auto focus mode that means LED
(C) is glowing. To switch ON the manual focus mode, press the auto focus
button again. Under this condition, LED (C) goes off.
a.: When the colposcope is in auto focus mode (i.e Auto Focus LED is
glowing) then this button works as an intensity mode selector. One of the 5
Levels of Intensity can be selected by pressing this button. Level of intensity
is indicated by l1, I2-----I5 on screen. I1 is the brightest of all.
b. Manual Focus: When the camera is in manual focus mode (i.e Auto Focus
LED is not glowing), press this button to start manual focus.
This button allows you to freeze the required image that needs to be stored
for reviewing. Press the button again, image will be unfrozen.
Press this button to get the green filter ON & the system will automatically
filter the red tissue in the image being observed and highlight the enhanced
vascular image. It also gives the excellent color contrast for viewing vascular
pattern without any light loss.
One of the 4 levels of green filter can be selected by pressing this button.
First push of this button, switches from Normal image to Green Image G1/
thereafter, each next push of this button selects next levels of Green Filter.
Green Filter status is Indicated by G1, G2, G3, G4 on screen.
- 8 -
A. LED for Power
B. On/Off Switch
C. LED for Auto Focus
D. Auto Focus
E. Intensity Variation /
A
Manual Focus
F. Pause or freeze
G. Green Filter On
B
H. Green Filter Off and color
contrast selector
C
I. Zoom Out
D
J. Zoom In
K. Timer & Zoom Factor Display
E
L. E-Flip
M. Mirror Image
F
G
COLpro222DX-OZview
