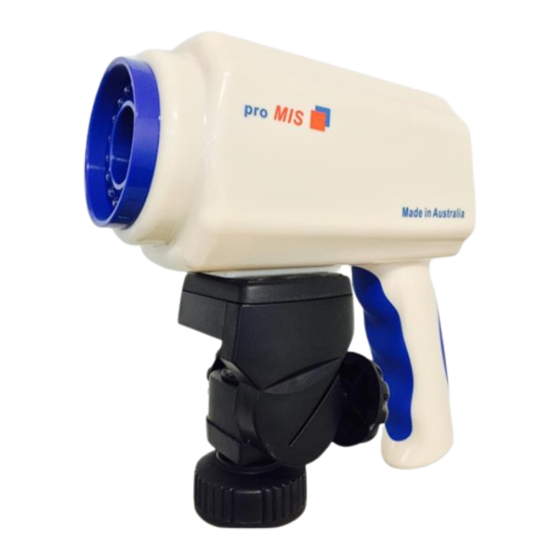

Digital Video Colposcope
Model: COLpro222DX-OZview
Promis Medical (Australia) Pty Ltd
Unit 46, Level 3, 11-13 Brookhollow Avenue
Baulkham Hills, NSW 2153, Australia
Promis Medical Systems GmbH
P forzheimer S tr. 46
75015 Bretten, GERMANY
Operator's Manual Ver: PMA-VYR-0218NA-GIMA
M
ANUAL
- 1 -
COLpro222DX-OZview
Advertisement
Related Manuals for Promis COLpro222DX-OZview
Summary of Contents for Promis COLpro222DX-OZview
- Page 1 SER’S ANUAL Digital Video Colposcope Model: COLpro222DX-OZview Promis Medical (Australia) Pty Ltd Unit 46, Level 3, 11-13 Brookhollow Avenue Baulkham Hills, NSW 2153, Australia Promis Medical Systems GmbH P forzheimer S tr. 46 75015 Bretten, GERMANY Operator’s Manual Ver: PMA-VYR-0218NA-GIMA...
-
Page 2: Table Of Contents
This manual contains information, which may not be copied or duplicated, in full or in part, without the explicit approval of Promis Medical (Australia) Pty Ltd. We reserve the right to make any change in the operator manual, which may affect instructions in this manual, without giving prior notice. The user of this equipment shall be solely responsible for any kind of damage, malfunction to the unit or user as a result of improper use or any kind of repair or alteration done by anyone other than us or a technician duly authorized by the manufacturer to do so. - Page 3 When connecting the signal cables, handle them carefully. Align the connectors, do not plug or unplug with strong force, otherwise, the cable and connectors may be damaged, which will impact the image quality or camera power supply or even the equipment. Operator’s Manual Ver: PMA-VYR-0218NA-GIMA - 3 - COLpro222DX-OZview...
-
Page 4: Sec 4
Packing materials should be put away from children reach or handled according to related regulations. • In case any doubt arises, please consult with Promis Medical (Australia) Pty Ltd. as soon as possible. Please comply with the items stipulated in the manual. This manual is not the replacement of medical regulations. - Page 5 Make sure to insert the camera head cable through the first hole of vertex plate adaptor 1 and then 2 hole as shown in the reference picture. Reference picture for Step 4 Operator’s Manual Ver: PMA-VYR-0218NA-GIMA - 5 - COLpro222DX-OZview...
- Page 6 A. 4.”. Then rotate the camera according to the moving direction of cable, thus to avoid twisting or damaging of the cable. Step 7 Operator’s Manual Ver: PMA-VYR-0218NA-GIMA - 6 - COLpro222DX-OZview...
- Page 7 SVHS video output & BNC output for connection to a suitable video device such as Medical grade monitor. Switch ON the main power button provided on the camera head panel. The system is now ready for use. Operator’s Manual Ver: PMA-VYR-0218NA-GIMA - 7 - COLpro222DX-OZview...
- Page 8 First push of this button, switches from Normal image to Green Image G1/ thereafter, each next push of this button selects next levels of Green Filter. Green Filter status is Indicated by G1, G2, G3, G4 on screen. Operator’s Manual Ver: PMA-VYR-0218NA-GIMA - 8 - COLpro222DX-OZview...
- Page 9 C. Zoom IN D. Zoom OUT E. Pause F. Green Filter ON G. Green Filter OFF H. Manual Focus I. Auto Focus J. Timer & Zoom Factor Display K. Mirror Image L. E-Flip Operator’s Manual Ver: PMA-VYR-0218NA-GIMA - 9 - COLpro222DX-OZview...
-
Page 10: Sec 5
DVC-IB-00-001 Stand with vertex DVC-STD-0-001 Camera Module DVC-CM-00-001 Y/C Cable DVC-SC-00-001 BNC to RC Cable DVC-BC-00-001 Power Cord Australia DVC-PC-00-003 Europe DVC-PC-00-002 South Africa & India DVC-PC-00-001 12 volt power supply DVC-IB-PS-010 Operator’s Manual Ver: PMA-VYR-0218NA-GIMA - 10 - COLpro222DX-OZview... -
Page 11: Sec 7 System Maintenance
- Do not use strong solvents to clean any part of Colposcope. - Do not leave any solution residue on the device, if so, please wipe it off quickly with a cloth damped in water Operator’s Manual Ver: PMA-VYR-0218NA-GIMA - 11 - COLpro222DX-OZview... -
Page 12: Sec. 9 Labelling Format For Traceability
1 year from the date of original delivery of the COLpro222DX-OZview unit by us or Dealer or Agent to the customer. This warranty applies only to an original purchase world-wide from us or Dealer or Agent. -
Page 13: Sec 9
Sec 9 LABELLING FORMAT FOR TRACEABILITY: Promis Medical (Australia) Pty Ltd Unit 46, Level 3, 11-13 Brookhollow Avenue Baulkham Hills, NSW 2153, AUSTRALIA Promis Medical Systems GmbH P forzheimer S tr. 46 75015 Bretten, GERMANY Videocolposcopio Digitale 29620 - Digital Videocolposcope... - Page 14 Sec 10 CHECK LIST for ACCESSORIES for PROMIS COLpro222DX-OZview POWER CORD SVHS CABLE BNC CABLE REMOTE CONTROL SOFTWARE INSTALLATION CD AND USB DONGLE KEY (LICENSE TO RUN THE SOFTWARE) : PART OF SOFTWARE USB FOOTSWITCH WITH EXTENSION CABLE : PART OF SOFTWARE...
