Sec 4 - Promis COLpro222DX-OZview User Manual

•
When not in use, the colposcope power supply shall be turned off, and the camera shall be covered to prevent
dust.
•
To prevent accidental power failure and other potential accidents, use uninterruptible power system with the
colposcope.
•
Before cleaning the system, make sure to disconnect the system power cable.
•
Clean according to the items specified by Promis Medical (Australia) Pty Ltd.
•
Keep cellular phones away from the device.
•
Packing materials should be put away from children reach or handled according to related regulations.
•
In case any doubt arises, please consult with Promis Medical (Australia) Pty Ltd. as soon as possible.
Please comply with the items stipulated in the manual. This manual is not the replacement of medical regulations.
•

Sec 4

INSTALLATION
COLpro222DX-OZview is an easy system to install. Please be sure that all electrical, electronic and environmental
requirements are met before installation of the system.
Installation: Composition & Assembly
Vertical Pole Composition: Vertical pole (lower) "FIGURE A. 4." with interface box "FIGURE A. 5." can be
connected to the external display monitor to constitute a complete diagnosis system. It can also be connected to
computer workstation to save, analyze print patient information etc. Its height can be adjusted according to actual
needs.
External Cable of interface box
•
Use accompanying power cord; insert one end into "FIGURE B. 3." and the other end to power socket in
wall.
•
Connect one end of S-Video cable / BNC cable to "FIGURE B. 1." / "FIGURE B. 2." and the other end to an
external display monitor.

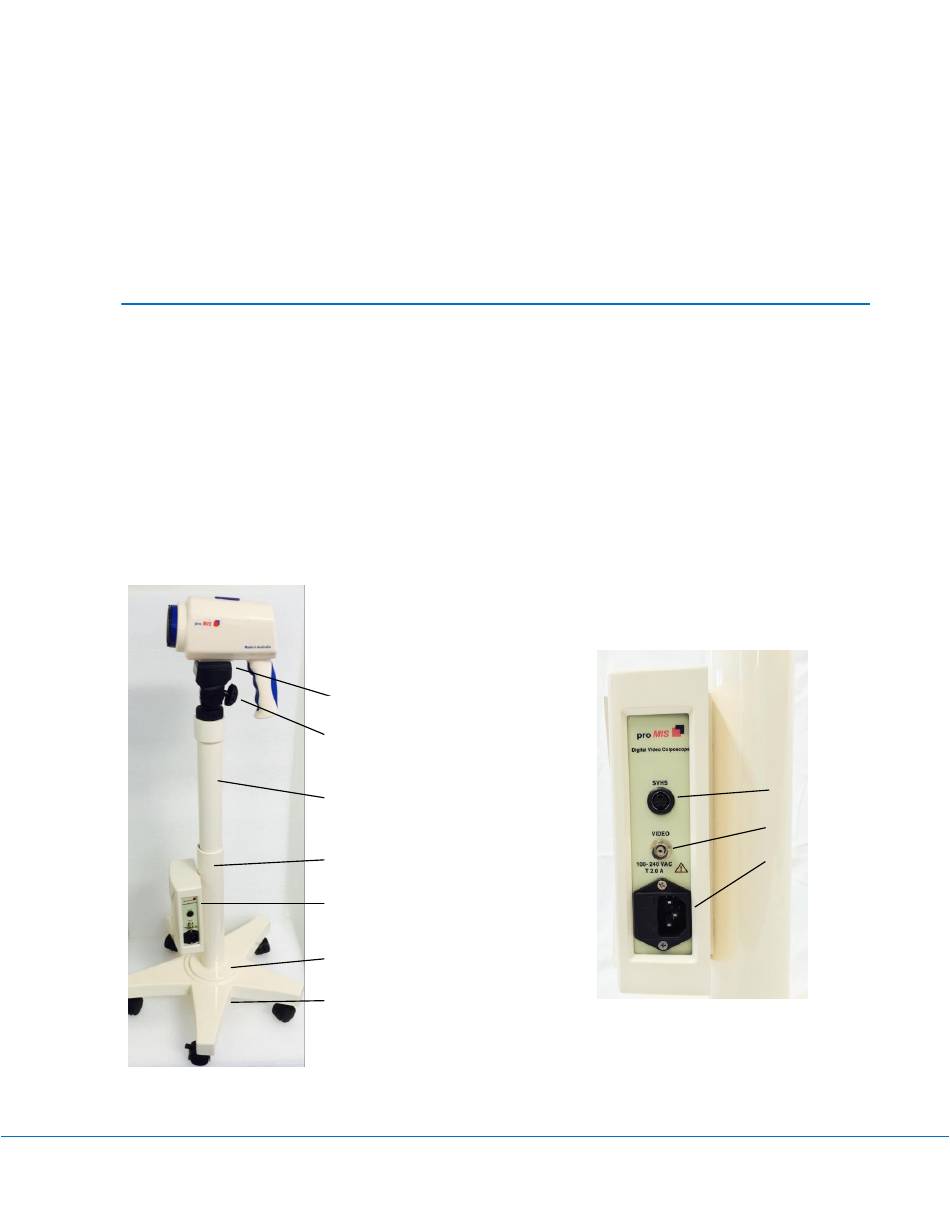

Fig. A. Vertical stand
Interface Box Composition
Operator's Manual Ver: PMA-VYR-0218NA-GIMA
1. Vertex plate
adapter
2. Knob
3. vertical pole (upper)
4. vertical pole (lower)
5. Interface Box
6. rolling star base
7. nut (underneath this
star base)
Fig. B Interface Box
- 4 - COLpro222DX-OZview
1.
S-Video output
2. BNC Video Output
3. AC Power Socket
& Fuse
