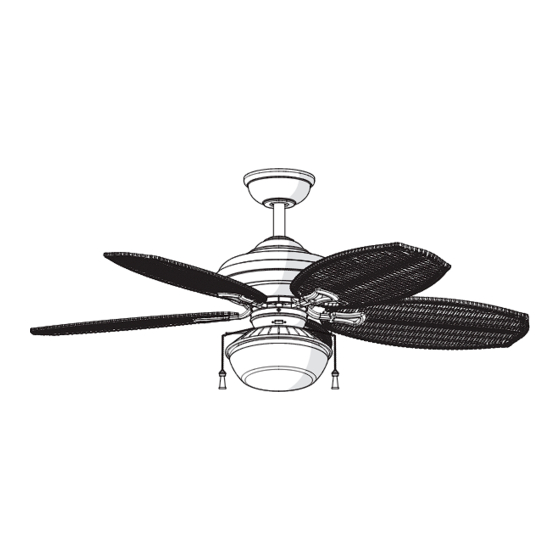

Summary of Contents for HAMPTON BAY PALM BEACH III 51499
Page 1
THANK YOU We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................12 Warranty ................3 Care and Cleaning ............. 13 Pre-Installation ..............3 Troubleshooting ..............13 Installation ................6 Safety Information To reduce the risk of electric shock, ensure the electricity has WARNING: To reduce the risk of personal injury, do been turned off at the circuit breaker or fuse box before you not bend the blade brackets (also referred to as...
A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Hampton Bay hereby disclaims any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law.
Page 4
Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Part Description Quantity Wire connecting nuts Extra blade bracket attachment hardware Hanger pin Pull chain Locking pin Plastic cap to be used for a fan with- Rubber gasket for close-to-ceiling out a light kit mounting...
Page 5
Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Light kit tter assembly (inside canopy) Decorative motor collar cover Ball/downrod assembly Blade bracket ( ange), screws Canopy with canopy ring attached pre-installed Fan-motor assembly Blade Glass bowl CFL Light bulbs, 14-W Maximum IMPORTANT: This product and/or components are governed by one or more of the following U.S.
Installation MOUNTING OPTIONS WARNING: To reduce the risk of re, electric shock or NOTE: You may need a longer downrod to maintain personal injury, mount to outlet box marked “acceptable proper blade clearance when installing on a steep, sloped for fan support of 35 lbs. (15.9 kg) or less” and use ceiling.
Page 7
Assembly - Standard Ceiling Mount Preparing for mounting Routing the wires □ □ Remove the canopy ring (L) from the canopy (C) by turning Route the wires exiting the top of the fan-motor the ring to the right until it unlocks. housing (D) into the decorative motor collar cover (F) □...
Page 8
Assembly - Close-to-Ceiling Mount Preparing for mounting Routing the wires □ □ Remove the canopy ring (L) from the canopy (C) by turning the Remove three of the six screws and lock washers (II) (every ring to the right until it unlocks. other one) securing the motor collar (M) to the top of the fan- □...
Assembly - Hanging the Fan (continued) Making the electrical connection Mounting the fan WARNING: When using the standard ball/downrod mounting, the IMPORTANT: Use the wire connecting nuts (AA) supplied with tab in the ring at the bottom of the slide-on mounting bracket your fan.
Page 10
Assembly - Attaching the Fan Blades Fastening the blade brackets to Attaching the blades to the blade the motor brackets □ Mount the fan blade (H) to the blade bracket (G) by align- IMPORTANT: Remove the rubber stopper on the black bracket ing the three key-slot holes in the blade (H) with the three below the motor in order to attach the blade assembly to posts on the top of the blade bracket (G).
Page 11
Assembly - Attaching the Light Kit Fitter Assembly Attaching the light kit tter assembly CAUTION: To reduce the risk of electric shock, disconnect the electrical supply circuit to the fan before installing the light xture. NOTE: This light kit cannot be transferred to another fan. □...
Page 12
Operating Your Fan The pull chain controls the fan speed as follows: 1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off Speed settings for warm or cool weather depend on factors such as room size, ceiling height, number of fans, and so on.
Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □...
Page 14
Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
Page 15
GRACIAS POR TU COMPRA Apreciamos la con anza que has depositado en Hampton Bay al comprar este ventilador de techo. Nos esforzamos para continuamente crear productos de calidad diseñados para mejorar tu hogar. Visítanos por Internet para ver nuestra línea completa de productos disponibles para las...
Page 16
Tabla de contenido Tabla de contenido .............. 2 Ensamblaje ................7 Información de seguridad........... 2 Funcionamiento ..............12 Garantía ................3 Mantenimiento y limpieza ..........13 Preinstalación ..............3 Solución de problemas ............. 13 Instalación ................6 Información de seguridad Para disminuir el riesgo de descarga eléctrica, asegúrate de ADVERTENCIA: Para reducir el riesgo de lesiones cortar la electricidad del cortacircuitos o la caja de fusibles...
Cualquier servicio realizado por personal no autorizado invalidará la garantía. No existe ninguna otra garantía expresa. Mediante la presente, Hampton Bay se exime de cualquier garantía, incluyendo pero sin limitarse a aquellas de comercialización e idoneidad para un n particular, de acuerdo a lo contemplado por la ley.
Page 18
Preinstalación (continuación) HERRAJES INCLUIDOS NOTA: No se muestra el tamaño real de los herrajes. Pieza Descripción Cantidad Pieza Descripción Cantidad Tuercas de conexión de cables Herrajes adicionales para montaje de aspas Pasador de soporte Interruptor de cadena Pasador de cierre Tapa de plástico para utilizar con el Junta de goma para montaje cerca del ventilador sin kit de luces...
Page 19
Preinstalación (continuación) CONTENIDO DEL PAQUETE Pieza Descripción Cantidad Pieza Descripción Cantidad Soporte de montaje deslizante Ensamblaje del soporte del kit de (dentro de la cubierta) luces Ensamblaje de tubo bajante/bola Cubierta decorativa del collarín del motor Cubierta con anillo de cubierta acop- lado Soporte del aspa (brida), tornillos preinstalados...
Instalación OPCIONES DE MONTAJE ADVERTENCIA: Para reducir el riesgo de incendio, descarga NOTA: Tal vez necesites un tubo bajante más largo para eléctrica u otras lesiones, instala sólo en una caja eléctrica mantener la altura mínima adecuada de las aspas, al clasi cada como “apropiada para sostener ventiladores de instalar el ventilador en un techo inclinado.
Page 21
Ensamblaje - Montaje estándar en techo Preparación para el montaje Disposición de los cables □ □ Retira el aro (L) de la cubierta (C), girándolo a la derecha Inserta los cables que salen por la parte superior de la hasta soltarlo. carcasa del motor del ventilador (D) en la cubierta decorativa □...
Page 22
Ensamblaje – Montaje "cerca del techo" Preparación para el montaje Disposición de los cables □ □ Retira el aro en la cubierta (L) de la cubierta (C), girando el aro Retira tres de los seis tornillos y arandelas de seguridad (II) a la derecha hasta soltarlo.
Ensamblaje - Cómo colgar el ventilador (continuación) Cómo hacer las conexiones eléctricas Cómo montar el ventilador ADVERTENCIA: Cuando uses el ensamblaje del tubo bajante/bola IMPORTANTE: Usa las tuercas de conexión de cables (AA) que estándar, la pestaña en el aro en la parte inferior del soporte de montaje vienen con tu ventilador.
Page 24
Ensamblaje - Cómo jar las aspas del ventilador Cómo jar los soportes de las Cómo conectar las aspas a los aspas al motor soportes de las aspas □ Monta las aspas del ventilador (H) al soporte del aspa IMPORTANTE: Quita el tope de goma del soporte negro bajo (G) alineando los tres ori cios tipo ojo de cerradura en el el motor para instalar el ensamblaje de las aspas en el motor.
Page 25
Ensamblaje - Cómo instalar el ensamblaje del soporte del kit de luces Cómo instalar el ensamblaje del soporte del kit de luces PRECAUCIÓN: Para disminuir el riesgo de descarga eléctrica, desconecta el circuito de energía del ventilador antes de instalar la lámpara. NOTA: Este kit de luces no puede transferirse a otro ventilador.
Page 26
Cómo usar el ventilador El interruptor de cadena controla las velocidades del ventilador de la siguiente manera: 1 vez: Alta, 2 veces: Media, 3: Baja y 4: Apagado. Las con guraciones de velocidad para clima cálido o frío dependen de factores como tamaño de la habitación, altura del techo, cantidad de ventiladores y demás.
Mantenimiento y limpieza ADVERTENCIA: Asegúrate de que la electricidad esté apagada antes de limpiar el ventilador. □ Debido al movimiento natural del ventilador, algunas conexiones pueden a ojarse. Revisa las conexiones de soporte, soportes y accesorios de aspas dos veces al año. Veri ca que estén seguras. No es necesario desmontar el ventilador del techo. □...
Page 28
¿Preguntas, problemas o piezas faltantes? Antes de regresar a la tienda, llama al servicio al cliente de Hampton Bay de lunes a viernes, de 8:00 a.m. a 6:00 p.m. (hora estándar del Este) 1-855-HD-HAMPTON HAMPTONBAY.COM Conserva este manual para uso en el futuro.
