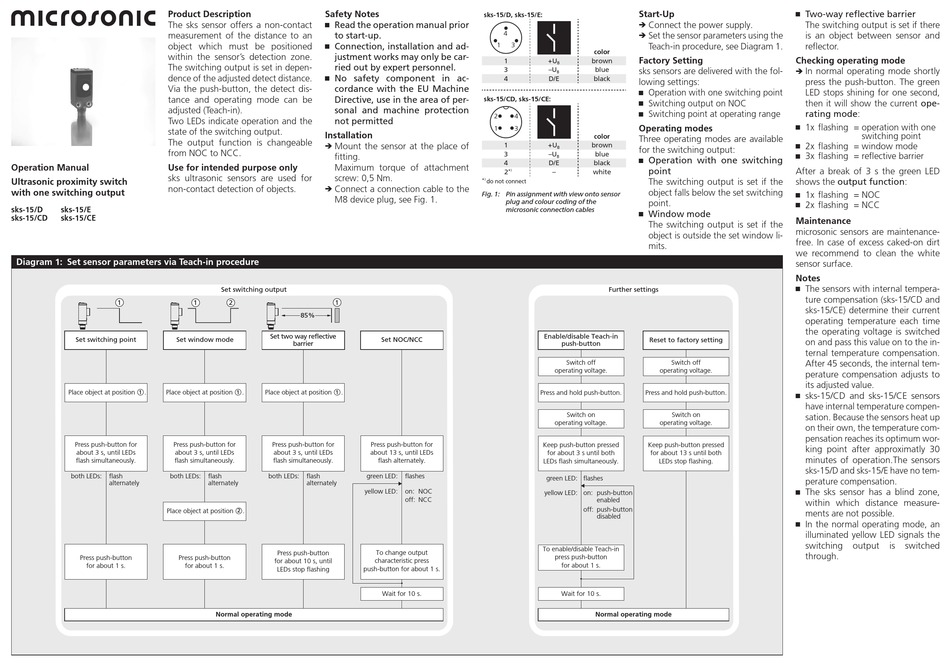

Microsonic sks-15/D Operation Manual

Product Description
The sks sensor offers a non-contact
measurement of the distance to an
object which must be positioned
within the sensor's detection zone.
The switching output is set in depen-
dence of the adjusted detect distance.
Via the push-button, the detect dis-
tance and operating mode can be
adjusted (Teach-in).
Two LEDs indicate operation and the
state of the switching output.
The output function is changeable
from NOC to NCC.
Operation Manual Use for intended purpose only
sks ultrasonic sensors are used for
Ultrasonic proximity switch
non-contact detection of objects.
with one switching output
sks-15/D sks-15/E
sks-15/CD sks-15/CE
Diagram 1: Set sensor parameters via Teach-in procedure
1
Set switching point Set window mode
Place object at position 1 . Place object at position
Press push-button for Press push-button for
about 3 s, until LEDs about 3 s, until LEDs
flash simultaneously. flash simultaneously.
both LEDs: flash both LEDs:
alternately
Place object at position
Press push-button Press push-button
for about 1 s. for about 1 s.
Safety Notes
Ԏ Read the operation manual prior
to start-up.
Ԏ Connection, installation and ad-
justment works may only be car-
ried out by expert personnel.
Ԏ No safety component in ac-
cordance with the EU Machine
Directive, use in the area of per-
sonal and machine protection
not permitted
Installation
Mount the sensor at the place of
Î
fitting.
Maximum torque of attachment
screw: 0,5 Nm.
Connect a connection cable to the
Î
M8 device plug, see Fig. 1.
Set switching output
1 2 1
85 %
Set two way reflective
barrier
1 . Place object at position 1 .
Press push-button for Press push-button for
about 3 s, until LEDs about 13 s, until LEDs
flash simultaneously.
flash both LEDs: flash green LED:
alternately alternately
yellow LED:
2 .
Press push-button
for about 10 s, until
push-button for about 1 s.
LEDs stop flashing
Normal operating mode
sks-15/D, sks-15/E:
4
1 3
1 +U
3 –U
4 D/E
sks-15/CD, sks-15/CE:
2 4
1 3
1 +U
3 –U
4 D/E
2 * ) –
* )
do not connect
Fig. 1: Pin assignment with view onto sensor
plug and colour coding of the
microsonic connection cables
Enable/disable Teach-in
Set NOC/NCC
Press and hold push-button.
Keep push-button pressed
for about 3 s until both
flash alternately.
LEDs flash simultaneously.
flashes
green LED:
on: NOC
yellow LED:
off: NCC
To enable/disable Teach-in
To change output
characteristic press
Wait for 10 s.
Start-Up
Connect the power supply.
Î
Set the sensor parameters using the
Î
Teach-in procedure, see Diagram 1.
color
Factory Setting
brown
B
blue sks sensors are delivered with the fol-
B
black
lowing settings:
Ԏ Operation with one switching point
Ԏ
Switching output on NOC
Ԏ Switching point at operating range
Operating modes
color
Three operating modes are available
brown
B for the switching output:
blue
B
Ԏ Operation with one switching
black
point
white
The switching output is set if the
object falls below the set switching
point.
Ԏ Window mode
The switching output is set if the
object is outside the set window li-
mits.
Further settings
Reset to factory setting
push-button
Switch off Switch off
operating voltage. operating voltage.
Press and hold push-button.
Switch on Switch on
operating voltage. operating voltage.
Keep push-button pressed
for about 13 s until both
LEDs stop flashing.
flashes
on: push-button
enabled
off: push-button
disabled
press push-button
for about 1 s.
Wait for 10 s.
Normal operating mode
Ԏ Two-way reflective barrier
The switching output is set if there
is an object between sensor and
reflector.
Checking operating mode
In normal operating mode shortly
Î
press the push-button. The green
LED stops shining for one second,
then it will show the current ope-
rating mode:
Ԏ 1x flashing = operation with one
switching point
Ԏ 2x flashing = window mode
Ԏ 3x flashing = reflective barrier
After a break of 3 s the green LED
shows the output function:
Ԏ 1x flashing = NOC
Ԏ 2x flashing = NCC
Maintenance
microsonic sensors are maintenance-
free. In case of excess caked-on dirt
we recommend to clean the white
sensor surface.
Notes
Ԏ The sensors with internal tempera-
ture compensation (sks-15/CD and
sks-15/CE) determine their current
operating temperature each time
the operating voltage is switched
on and pass this value on to the in-
ternal temperature compensation.
After 45 seconds, the internal tem-
perature compensation adjusts to
its adjusted value.
Ԏ sks-15/CD and sks-15/CE sensors
have internal temperature compen-
sation. Because the sensors heat up
on their own, the temperature com-
pensation reaches its optimum wor-
king point after approximatly 30
minutes of operation.The sensors
sks-15/D and sks-15/E have no tem-
perature compensation.
Ԏ The sks sensor has a blind zone,
within which distance measure-
ments are not possible.
Ԏ In the normal operating mode, an
illuminated yellow LED signals the
switching output is switched
through.
