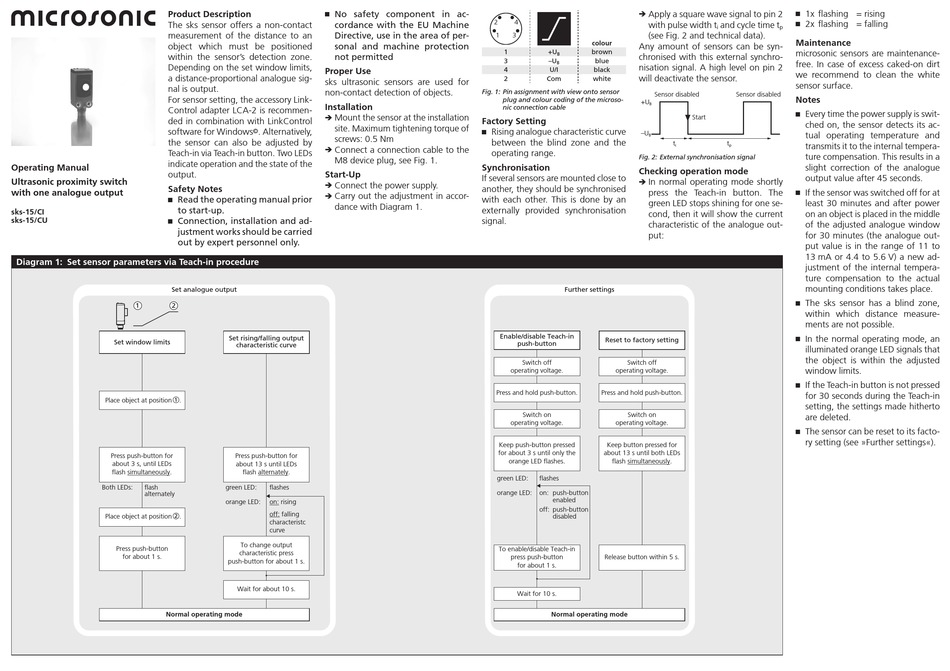

Microsonic sks-15/CI Operating Manual

Product Description

The sks sensor offers a non-contact
measurement of the distance to an
object which must be positioned
within the sensor's detection zone.
Depending on the set window limits,
a distance-proportional analogue sig-
nal is output.
For sensor setting, the accessory Link-
Control adapter LCA-2 is recommen-
ded in combination with LinkControl
software for Windows
the sensor can also be adjusted by
Teach-in via Teach-in button. Two LEDs
indicate operation and the state of the
Operating Manual
output.
Ultrasonic proximity switch

Safety Notes

with one analogue output
Ԏ Read the operating manual prior
to start-up.
sks-15/CI
sks-15/CU Ԏ Connection, installation and ad-
justment works should be carried
out by expert personnel only.
Diagram 1: Set sensor parameters via Teach-in procedure
Set analogue output
1 2
Set window limits
Place object at position 1 .
Press push-button for
about 3 s, until LEDs
flash simultaneously.
Both LEDs: flash
alternately
Place object at position 2 .
Press push-button
for about 1 s.
Normal operating mode
Ԏ No safety component in ac-
cordance with the EU Machine
Directive, use in the area of per-
sonal and machine protection
not permitted

Proper Use

sks ultrasonic sensors are used for
non-contact detection of objects.

Installation

Mount the sensor at the installation
Î
site. Maximum tightening torque of
. Alternatively,
©
screws: 0.5 Nm
Connect a connection cable to the
Î
M8 device plug, see Fig. 1.

Start-Up

Connect the power supply.
Î
Carry out the adjustment in accor-
Î
dance with Diagram 1.
Set rising/falling output
characteristic curve
Press push-button for
about 13 s until LEDs
flash alternately.
green LED: flashes
orange LED: on: rising
off: falling
characteristc
curve
To change output
characteristic press
push-button for about 1 s.
Wait for about 10 s.
Apply a square wave signal to pin 2
Î
2 4
with pulse width t
(see Fig. 2 and technical data).
1 3
colour
Any amount of sensors can be syn-
1 +U brown
B chronised with this external synchro-
3 –U blue
B
nisation signal. A high level on pin 2
4 U/I black
will deactivate the sensor.
2 Com white
Fig. 1: Pin assignment with view onto sensor
Sensor disabled
plug and colour coding of the microso-
+U
B
nic connection cable

Factory Setting

Ԏ Rising analogue characteristic curve
–U
B
between the blind zone and the
operating range.
Fig. 2: External synchronisation signal

Synchronisation

Checking operation mode

If several sensors are mounted close to
In normal operating mode shortly
Î
another, they should be synchronised
press the Teach-in button. The
with each other. This is done by an
green LED stops shining for one se-
externally provided synchronisation
cond, then it will show the current
signal.
characteristic of the analogue out-
put:

Further settings

Enable/disable Teach-in
Reset to factory setting
push-button
Switch off Switch off
operating voltage. operating voltage.
Press and hold push-button. Press and hold push-button.
Switch on Switch on
operating voltage. operating voltage.
Keep push-button pressed Keep button pressed for
for about 3 s until only the about 13 s until both LEDs
orange LED flashes. flash simultaneously.
green LED: flashes
orange LED: on: push-button
enabled
off: push-button
disabled
To enable/disable Teach-in
press push-button Release button within 5 s.
for about 1 s.
Wait for 10 s.
Normal operating mode
Ԏ 1x flashing = rising
Ԏ 2x flashing = falling
and cycle time t
i p

Maintenance

microsonic sensors are maintenance-
free. In case of excess caked-on dirt
we recommend to clean the white
sensor surface.
Sensor disabled

Notes

Ԏ Every time the power supply is swit-
Start
ched on, the sensor detects its ac-
tual operating temperature and
t t
transmits it to the internal tempera-
i p
ture compensation. This results in a
slight correction of the analogue
output value after 45 seconds.
Ԏ If the sensor was switched off for at
least 30 minutes and after power
on an object is placed in the middle
of the adjusted analogue window
for 30 minutes (the analogue out-
put value is in the range of 11 to
13 mA or 4.4 to 5.6 V) a new ad-
justment of the internal tempera-
ture compensation to the actual
mounting conditions takes place.
Ԏ The sks sensor has a blind zone,
within which distance measure-
ments are not possible.
Ԏ In the normal operating mode, an
illuminated orange LED signals that
the object is within the adjusted
window limits.
Ԏ If the Teach-in button is not pressed
for 30 seconds during the Teach-in
setting, the settings made hitherto
are deleted.
Ԏ The sensor can be reset to its facto-
ry setting (see »Further settings«).
