CPT Handheld Programmer
User Manual
®
P/N 0715-116-000 Rev. A

Advertisement

Table of Contents
loading

Summary of Contents for Acorn MASTER-TROL

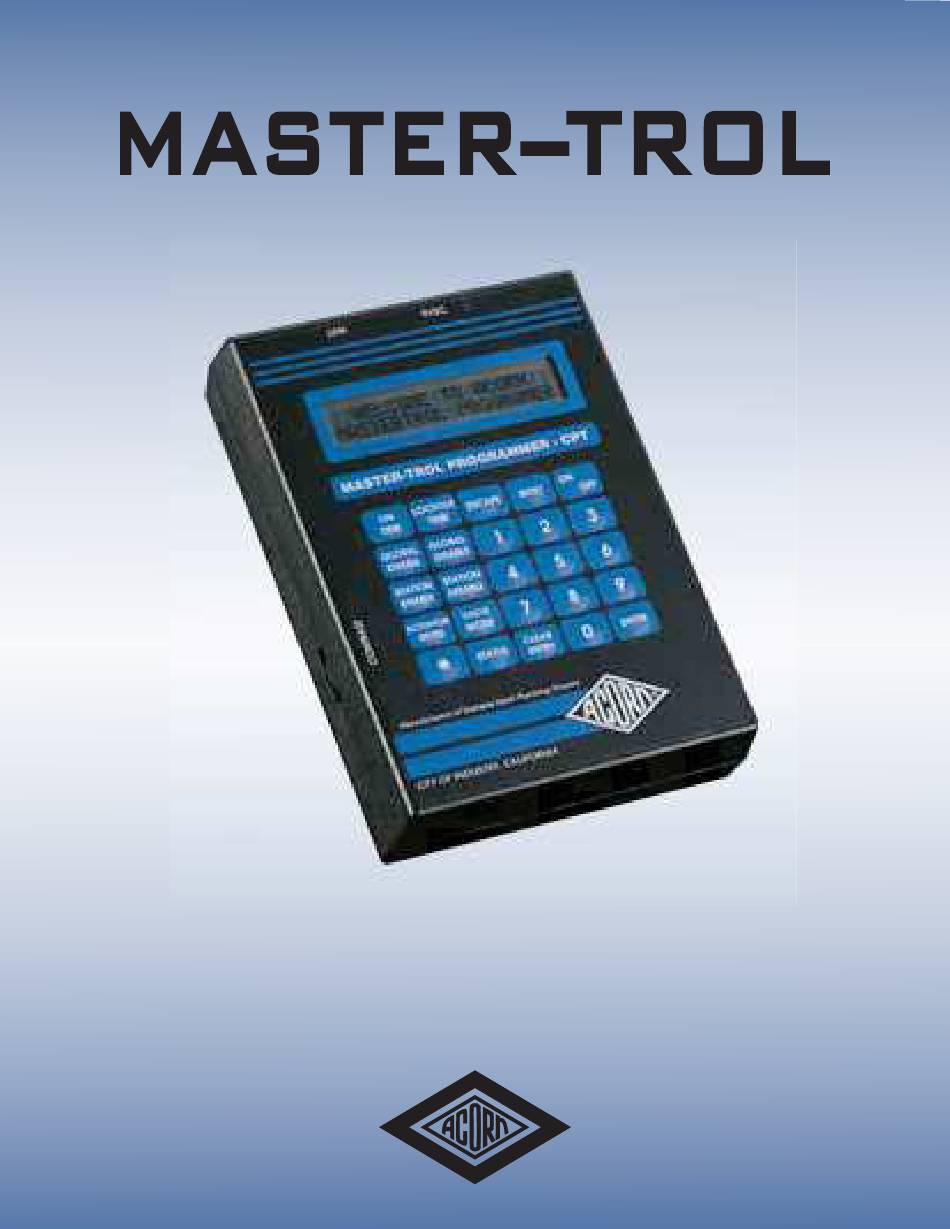

  • Page 1 CPT Handheld Programmer User Manual ® P/N 0715-116-000 Rev. A...

  • Page 2: Table Of Contents

    How to enable a valve using STATION ENABLE How to disable a valve using STATION DISABLE How to change the ACTUATOR MODE How to change the VALVE MODE How to program Variable Lockout Mode How to view valve STATUS ACORN ENGINEERING COMPANY ®...

  • Page 3: Introduction

    INTRODUCTION Master-Trol Handheld Programmer (CPT) can be used to program a single Master-Trol Controller, or all controllers connected to a Versa-Link. The Handheld Programmer is portable which allows you to connect to any controller directly. It is small and light weight but capable of programming a majority of the system’s features.

  • Page 4: Keypad Definitions

    KEYPAD DEFINITIONS The “ON TIME” button is used to program the valve’s runtime. The runtime can be set up to one hour using minute, second, and “tenths of a second” increments. TIME The “LOCKOUT TIME” button is used to program Lockouts. A Lockout is a specified LOCKOUT amount of time a fixture user must wait between actuations.
  • Page 5 When this feature is on, it will disable the valve. This feature Shutoff Mode overrides the “STATION ENABLE” feature of the handheld programmer and the Master-Trol System Computer. WARNING: The valve can only be enabled by turning this feature off with the handheld programmer.

  • Page 6: Handheld Programmer Setup

    1. Install the 9V battery or connect the plug-in transformer to the Handheld Programmer. 2. Plug the interface cable into the link port on the Handheld Programmer. Plug-in Transformer Connection (Top) Link Port (Top) LINK 9VDC MASTER-TROL PROGRAMMER - CPT Versa-Link LOCKOUT Interface ESCAPE RESET TIME TIME...
  • Page 7 MASTER-TROL CONTROLLER DAUGHTERBOARD VER. CONTROLLER PT. NO. 0715-002-001 ACORN ENGINEERING COMPANY Link #: Controller Address #: MASTER-TROL PROGRAMMER - CPT Date Shipped: Acorn SO #: 15125 PROCTOR AVE PO BOX 3527 INDUSTRY, CA. 91744 LOCKOUT For assistance in installation or maintenance, call:...
  • Page 8 MASTER-TROL CONTROLLER DAUGHTERBOARD VER. CONTROLLER PT. NO. 0715-002-001 ACORN ENGINEERING COMPANY Link #: Controller Address #: MASTER-TROL PROGRAMMER - CPT Date Shipped: Acorn SO #: 15125 PROCTOR AVE PO BOX 3527 LOCKOUT INDUSTRY, CA. 91744 For assistance in installation or maintenance, call:...

  • Page 9: How To Program Controllers

    HOW TO PROGRAM CONTROLLERS The following will provide step-by-step instructions on how to program each feature of the Master-Trol Controller. Each set of instructions will begin from the “PRESS YOUR DESIRED FUNCTION KEY” screen. Please see the “Keypad Definitions” section for descriptions of each feature and mode.

  • Page 10: How To Change The Lockout Time

    4. The old “ON TIME” will be displayed at the top. Enter the “tenths of a second” (0-9) you require, then press “ENTER”. 5. Enter the number of seconds (0-59) you require, then press “ENTER”. 6. Enter the number of minutes (0-59) you require, then press “ENTER”.

  • Page 11: How To Global Enable Valves

    4. The old “LOCKOUT TIME” will be displayed at the top. Enter the number of seconds (0-59) you require, then press the “ENTER” button. 5. Enter the number of minutes (0-59) you require, then press the “ENTER” button. 6. The Handheld Programmer will briefly confirm the new “LOCKOUT TIME”.

  • Page 12: How To Enable A Valve Using Station Enable

    How to enable a valve using STATION ENABLE: 1. From the “PRESS YOUR DESIRED STATION FUNCTION KEY” screen, press the ENABLE “STATION ENABLE” button. 2. If you are connected to multiple controllers, enter the controller address with the valve you want to program and press “ENTER”. If not, proceed to step #3.

  • Page 13: How To Change The Actuator Mode

    How to change the Actuator Mode: 1. From the “PRESS YOUR DESIRED ACTUATOR FUNCTION KEY” screen, press the MODE “ACTUATOR MODE” button. 2. If you are connected to multiple controllers, enter the controller address with the valve you want to program and press “ENTER”. If not, proceed to step #3.

  • Page 14: How To Change The Valve Mode

    How to change the Valve Mode: 1. From the “PRESS YOUR DESIRED VALVE FUNCTION KEY” screen, press the MODE “VALVE MODE” button. 2. If you are connected to multiple controllers, enter the controller address with the valve you want to program and press “ENTER”. If not, proceed to step #3.

  • Page 15: How To Program Variable Lockout Mode

    How to program Variable Lockout Mode: 1. Program the valve for the required “ON TIME”. (See “How to change On-Time”) TIME 2. Program the valve for the required LOCKOUT “LOCKOUT TIME”. (See “How to TIME change Lockout Time”) 3. From the “PRESS YOUR DESIRED FUNCTION KEY”...

  • Page 16: How To View Valve Status

    How to view valve Status: 1. From the “PRESS YOUR DESIRED STATUS FUNCTION KEY” screen, press the “STATUS” button. 2. If you are connected to multiple controllers, enter the controller address with the valve you want to view and press “ENTER”. If not, proceed to step #3.
