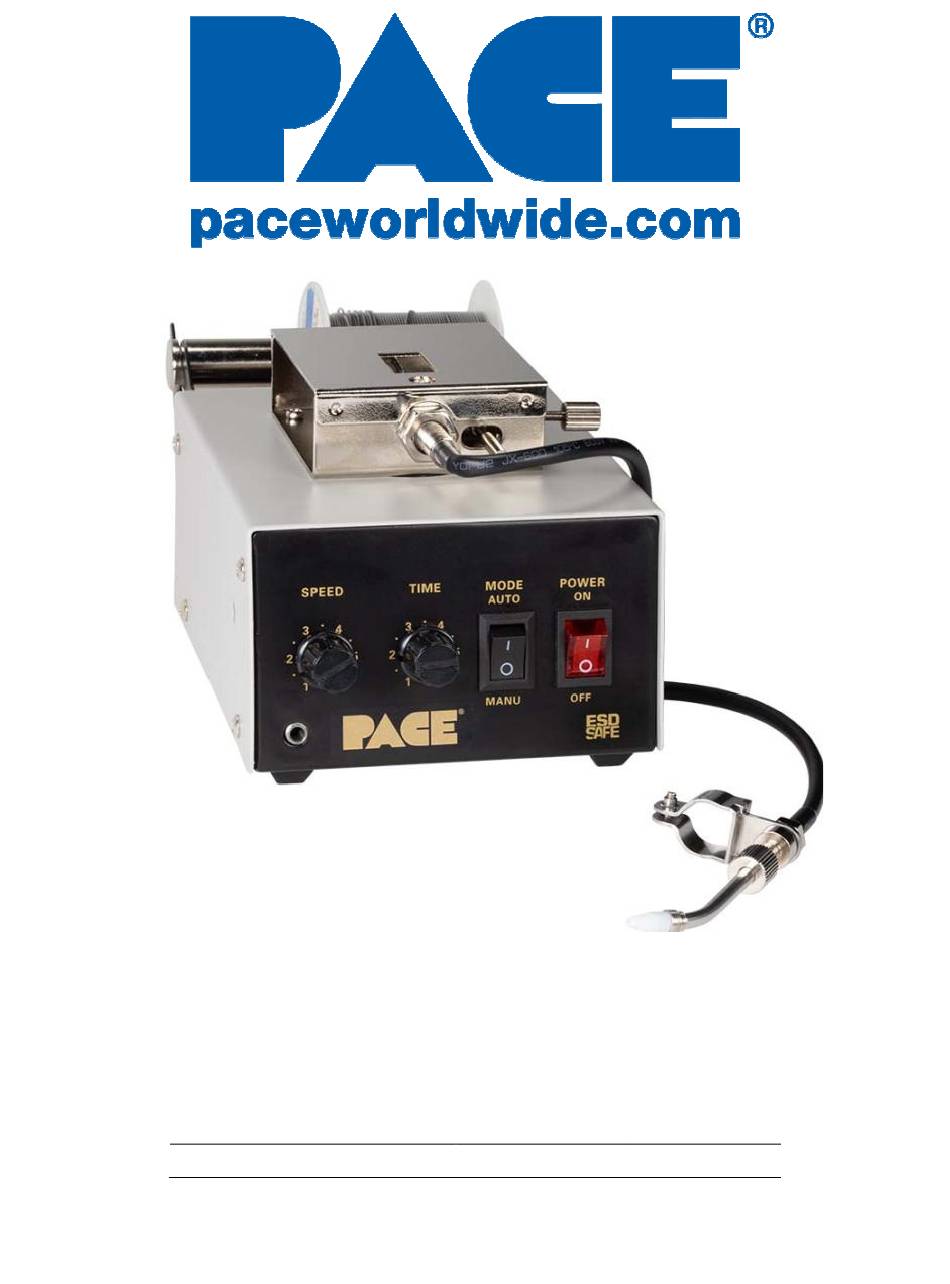

- Page 1 Operation and Maintenance Manual for SF200 Manual 5050-0617 Last revised on 3/22/2023 This manual applies to: Model Required Power Part Number SF200 120 VAC 8007-0595-P1...
-
Page 2: Table Of Contents
Adjustment of the Nozzle Position ....................... 4 Setting for Feed Time and Feed Speed ....................4 Adjustment of Tension ......................... 4 Adjusting the Solder Return ......................... 5 Troubleshooting ............................5 Spare Parts ..............................5 PACE LIMITED WARRANTY STATEMENT ................... 6... -
Page 3: General Information
General Information Introduction Thank you for purchasing the SF200, Automatic Solder Feeder. This manual will provide you with the information necessary to properly set up, use, and maintain your system. Please read this manual thoroughly before using the system. Specifications... -
Page 4: Power Supply Features

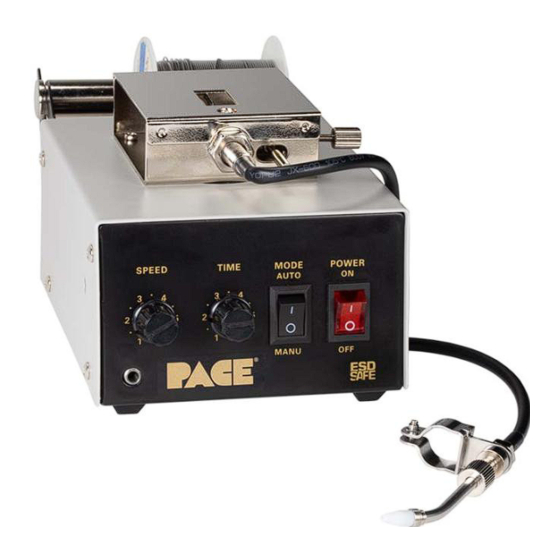

Power Supply Features 1) Foot Pedal Jack 2) Feed Speed Control Knob 3) Feed Time Control Knob 4) Mode Selection Switch 5) Power Switch 6) Release Lever 7) Securing Screw 8) Tension Adjustment Knob 9) Tension Gear Guide Shaft 10) Solder Return Adjustment 11) Feed Gear 12) Supply Nozzle 13) Solder Bobbin... -
Page 5: System Set-Up
Press the feed switch, or footswitch, and begin feeding solder. 5. Changing the Solder Diameter. When changing to a different solder, the SF200 will likely need some adjustments or even a different Solder Guide Nozzle. To change the solder, follow the steps below. -
Page 6: Operation
Operation Mode AUTO MODE – If you press the feed switch or foot pedal, solder will be fed using the set time • and speed settings, regardless of how long the switch is pressed. MANUAL MODE – Pressing the feed switch or foot pedal will feed solder at the set speed until •... -
Page 7: Adjusting The Solder Return
Adjusting the Solder Return The SF200 can retract a specified length of solder at the end of a feed operation, which may be useful when dealing with automated soldering equipment. The amount of solder returned into the feed line can be adjusted between 0-5mm (0-0.2 in). -
Page 8: Pace Limited Warranty Statement
(6) months. Monitors, computers and other brand equipment supplied but not manufactured by PACE are covered under their respective manufacturer’s warranty in lieu of this Warranty.
