Summary of Contents for Pace PS-90

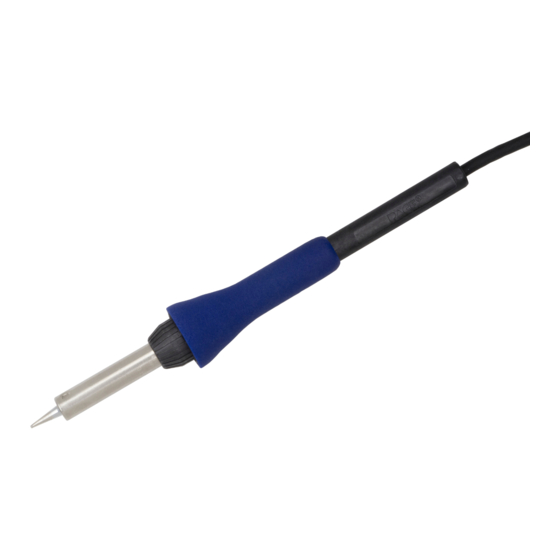

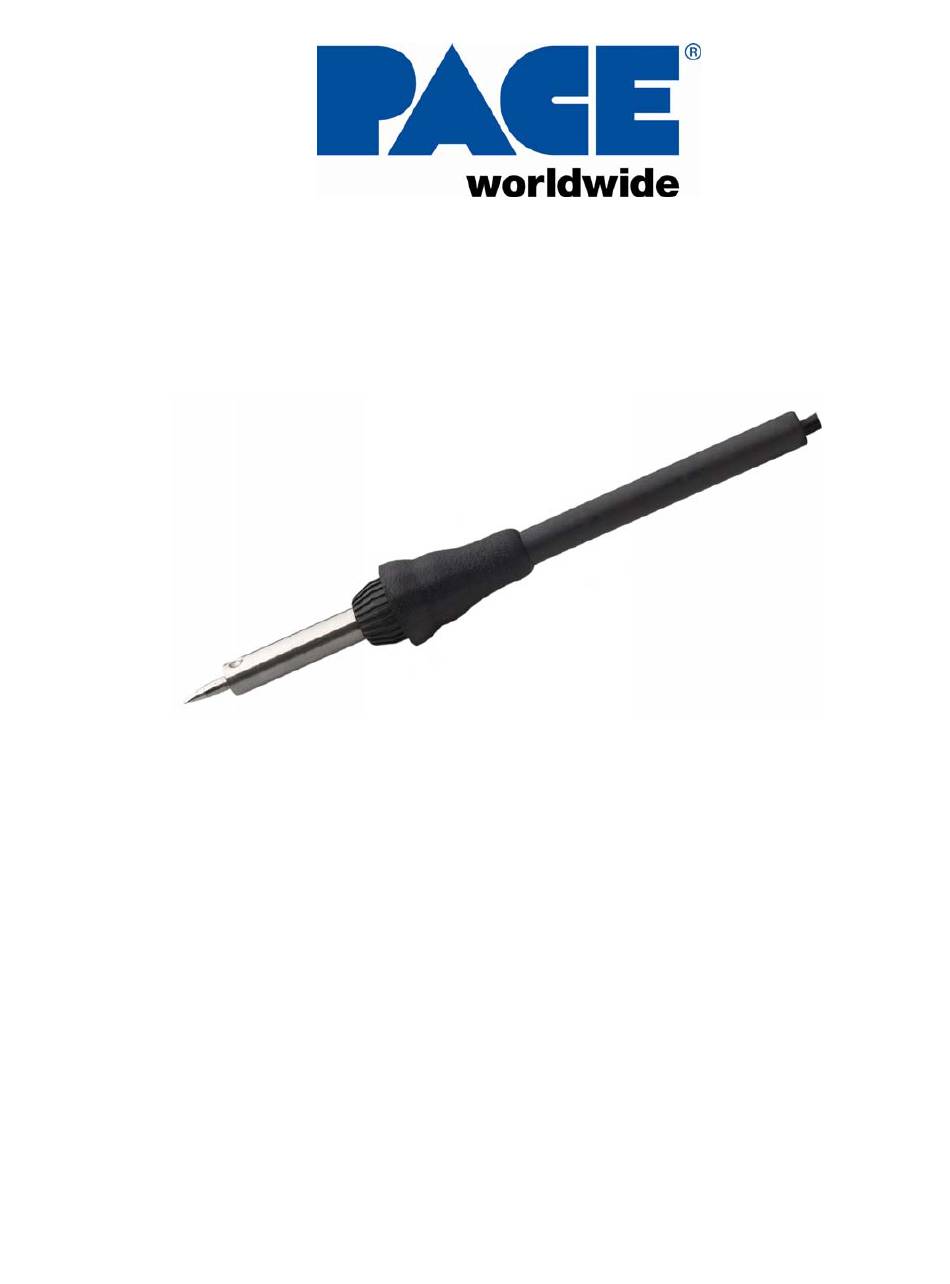

- Page 1 Operation and Maintenance Manual for the PS-90 Soldering Iron Handpiece Manual Number 5050-0443 Rev C...
- Page 2 Handpiece Connection ...................5 Heater Burn In ......................6 Tip Installation ........................6 PS-90 Heater Replacement...................6 Spare Parts ........................6 Service ..........................7 Limited Warranty ......................7 Contact Information .......................8 ©2012 PACE Inc., Southern Pines North Carolina Page 2 of 9 All Rights Reserved www.paceworldwide.com...
- Page 3 Introduction Thank you for purchasing the PACE model PS-90 Soldering Irons. These irons should only be used with PACE SensaTemp compatible power supplies. This manual will provide you with the information necessary to properly set-up, maintain and operate the PS-90.
- Page 4 RÖR EJ element eller spets. Risk för brännskador! 4. PACE Spets och Verktygshållare är speciellt utformade för att passa PACE respective verktyg så att risken för brännskador kan undvikas. När verktyget ej används bör det alltid förvaras i sin hållare.
- Page 5 Insure that system is located in a well-ventilated area on Initial power up. Remove plastic cap from end of Heater Assembly (If present). Connect Handpiece to PACE system Power Source. Set Handpiece Tip temperature to 316°C (600°F). Burn Handpiece in for 10 minutes at this temperature.
- Page 6 (1) year. Monitors, computers and other brand equipment supplied but not manufactured by PACE are covered under their respective manufacturer’s warranty in lieu of this Warranty. This warranty does not cover wear and tear under normal use, repair or replacement required as a result of misuse, improper application, mishandling or improper storage.
- Page 7 Warranty service may be obtained by contacting the appropriate PACE Company or local Authorized PACE distributor as set forth below to determine if return of any item is required, or if repairs can be made by the user in the field. Any warranty or other claim with respect to the products must be made with sufficient evidence of purchase and date of receipt, otherwise user’s...
