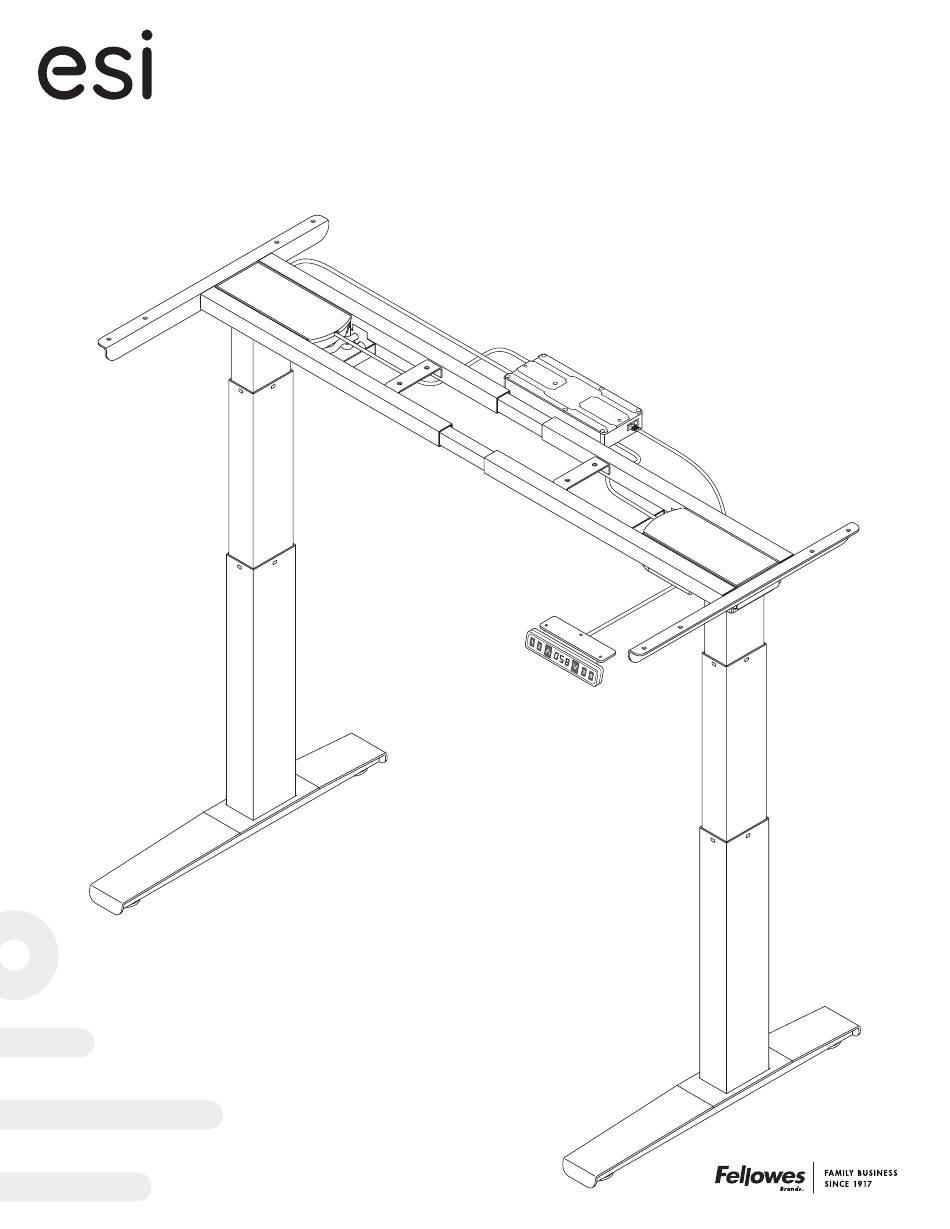

- Page 1 Victory LX 2-leg ™ Assembly instructions Electric height adjustable table base Model # 2VT-LX-C36-24-___ Model # 2VT-LX-C36-30-___ Model # 2VT-LX-C48-24-___ Model # 2VT-LX-C48-30-___ ___ = SLV, BLK or WHT...
-
Page 2: Table Of Contents
VictoryLX 2-leg Components and tools Caution • When drilling holes for the wood screws, guard against drilling through the top of the worksurface. work • Always check that screws used to attach components to the worksurface surface are not too long for the thickness of the surface. Please review these instructions before beginning the installation. -
Page 3: M4.8X22 #2 Phillips Round Head
VictoryLX 2-leg Assembly Step #1: position frame on table With the table top facing down on a soft, clean surface, arrange the frame as shown below, with the short ends of the top supports toward the rear. • Position the frame side to side. —... - Page 4 VictoryLX 2-leg Assembly Step #3: attach legs to frame • Remove the cotter pin from each cam lock and save it for use later in this step. • Position each leg. cam lock — First lower the protrusions on the motor housing into the notches. —...
-
Page 5: Digital Keypad
VictoryLX 2-leg Assembly Step #5: attach digital keypad • Attach the digital keypad using the three M3x20 #1 Phillips round head screws. • Install the keypad in the “expanded” position. Pull the keypad away from the mounting bracket to expand it. M3x20 #1 Phillips round head (3) align with... -
Page 6: Cord Clips
VictoryLX 2-leg Assembly Step #8: initialize the system press and hold UP and DOWN buttons • Press and hold the UP s and DOWN s buttons simultaneously for more than 3 seconds. — The legs will begin to move down at half speed of normal operation. •... - Page 7 VictoryLX 2-leg Assembly Step #11: turn the table upright With the assistance of a helper, turn the table upright and place it in its final position. IMPORTANT: There must be 1.0" (25mm) of clearance on all sides of the worksurface (and other moving parts) to ensure free, unobstructed movement. •...
- Page 8 VictoryLX 2-leg Operation digital DOWN “SET” button display button button Important • Before operating the table, the initialization procedure must be completed. See Step 8 on page 6. memory buttons General operation • Move the table up or down by pressing UP ▲ or DOWN ▼ until the worksurface reaches the desired height.
- Page 9 VictoryLX 2-leg Operation Upper stop position • To set the upper stop position (the maximum height of the table): — Raise or lower the table to the desired maximum height. — Press and hold S, then press and hold 3. Continue to press both buttons for about 3 seconds.
- Page 10 VictoryLX 2-leg Operation Reset the table to factory settings (re-initialization) • To reset the table to factory settings, re-initialize the control unit using the keypad. If one or more motors are changed in a system, the table must be reset to factory settings. —...
- Page 12 PURCHASE. ESI’s sole obligation under this warranty or any implied warranty, and the purchaser’s sole remedy, is limited to the repair or replacement, at ESI’s option, of the product or any defective part. Costs (such as installation, labor fees or express shipping) incurred due to replacement of products are not covered under warranty. IN NO EVENT SHALL FELLOWES, ITS AFFILIATES, SUBSIDIARIES, RELATED ENTITIES OR THEIR RESPECTIVE OFFICERS, DIRECTORS, OR EMPLOYEES, BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE, EXEMPLARY, OR SPECIAL DAMAGES.
