- Page 1 Ultima / Ultima Access ™ Bath Transfer with Compact Base U. S. Patent No. 7,328,953; D508,175; D503,556; D507,904 BTUC-8131M BTUC-8141L BTUAC-5131M BTUAC-5141L BTUC-8133M BTUC-8143L BTUAC-5133M BTUAC-5143L BTC-5101 www.inspiredbydrive.com WARNING! Read ALL instructions before using this product!
- Page 2 ALL times. 5. When occupied, make sure the user is buckled in at all times. 6. SAVE THESE INSTRUCTIONS. If you require additional assistance, please contact Inspired by Drive Customer Service at (800) 454-6612, or email at info@inspiredbydrive.com.
-
Page 3: Before You Begin

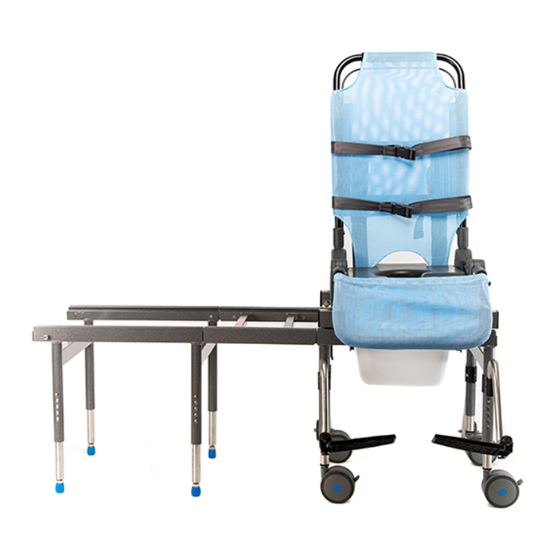

BEFORE YOU BEGIN The Ultima/Ultima Access Bath Transfer is shipped partially unassembled. Inside the package, you will find these following pieces: • Back Frame • Calf Frame • Adjustment Pull Handle(s) • 4 Casters • Bridge • Cover and Hardware Kit •... - Page 4 ASSEMBLY OF SEATING Back angle adjustment pull handle Calf angle adjustment pull handle U-shaped back support frame (straight calf panel) Insertion point for back frame Calf angle adjustment pull tab (bent Back angle adjustment pull tab calf panel) U-shaped calf support frame Knee support bar Assembling the Back Support: 1.
-
Page 5: Safety Checks
SAFETY CHECKS Before each use of your bath chair, please verify that the back and calf supports are properly installed and locked into position. When correctly installed, the pull tab should click into place and completely engaged into the slot. There should not be a gap between the pull tab and connector. See the figures below. - Page 6 COVER INSTALLATION AND ANGLE SETTINGS Cover Installation: (refer to seating diagram on pg. 4) Ultima (BTUC-8131M, BTUC-8141L): • Pull on the angle adjustment pull handles (A, G) to set the backrest and calf supports to the most upright position (Fig. 3). Slip the cover over the backrest and adjustment pull handle and then calf support and pull handle (Fig.
- Page 7 ASSEMBLY OF TRANSFER SYSTEM The rolling base has commode pail system that is pre-installed to the system. If you need to remove it, please follow these steps: 1. Turn the rolling base upside-down. 2. Remove both support rails by using a Figure 7 Phillips screw driver (Fig.
- Page 8 ASSEMBLY OF TRANSFER SYSTEM Seating and Rolling Base Assembly: 1. Insert the guide rail hooks into the guide rails and slide the seating frame assembly onto the rolling base (Fig. 11). Be sure to slide the seating all the way until the safety locking latch clicks into position on the base (Fig.
- Page 9 OPERATING THE TRANSFER SYSTEM 1. Set the desired height on both tub base and rolling base by depressing the locking button on leg tubes and slide them up or down. 2. Place the tub base inside the tub or shower (Fig. 14). Level the frame by adjusting the leveling feet making sure that the height of the rolling base is the same as the tub base (Fig.
-
Page 10: Cleaning Instructions
CLEANING INSTRUCTIONS Soapy water or mild cleansers may be used on all parts of your Ultima and Ultima Access Bath Transfers. Harsh abrasive cleansers may dull the finish. FABRIC CARE The fabric cover for the bath transfer is made of polyester that is durable, antimicrobial, resilient, quick drying, fade resistant, and machine washable. - Page 11 ACCESSORIES To order accessories for the bath transfer system please call Customer Service at (800) 454-6612 or email to info@inspiredbydrive.com. Head Support Pad Designed for better head positioning Lateral Support Pad Designed for better torso Positioning Belt positioning Quick release strap for various loops on chair allowing for multiple positions.
-
Page 12: Warranty
WARRANTY Inspired by Drive warrants this product to be free of defects in material and workmanship. Our obligation under this warranty is limited to repair or replacement of any part or entire unit at our option for a period of one year from date of delivery to the original purchaser. The warranty does not include cost of inconvenience, property damage, misuse, abuse, crash or similar incidents.
