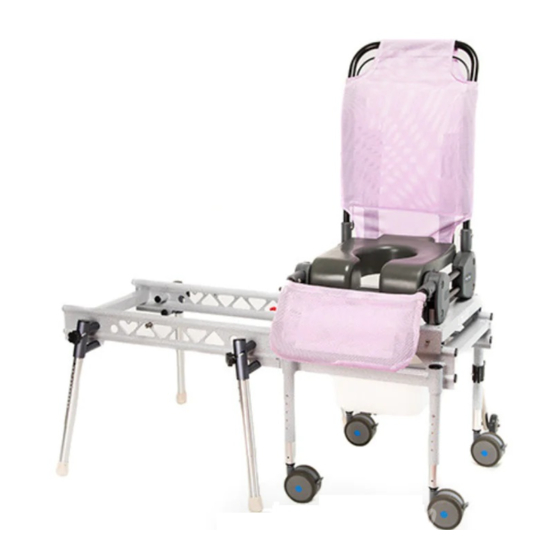

- Page 1 Ultima / Ultima Access ™ Bath Transfer U. S. Patent No. 7,328,953; D508,175; D503,556; D507,904 Option with Compact Base Complete Configuration Seating & Transfer Base BTUC-8131M BTUS-8130M BTUC-8141L BTUS-8140L BTUAC-5131M BTUAS-5130M BTUAC-5141L BTUAS-5140L BTC-5101 Option with Foldable Base Complete Configuration Seating &...
- Page 2 ALL times. 5. When occupied, make sure the user is buckled in at all times. 6. SAVE THESE INSTRUCTIONS. Thank you for choosing Inspired by Drive. Maximum Weight Capacity To ensure the occupant’s safety, DO NOT exceed the following...
-
Page 3: Before You Begin
BEFORE YOU BEGIN The Ultima/Ultima Access Bath Transfer is shipped partially unassembled. Inside the package, you will find these following pieces: Seating Components (See page 4 for assembly instructions) Back & Calf Frames Adjustment Pull Handle Cover and Hardware Kit Compact Base Components (See page 7 for assembly instructions) Rolling Base... - Page 4 ASSEMBLY OF SEATING Back angle adjustment pull handle Calf angle adjustment pull handle U-shaped back support frame (straight calf panel) Insertion point for back frame Calf angle adjustment pull tab (bent Back angle adjustment pull tab calf panel) U-shaped calf support frame Knee support bar Assembling the Back Support: 1.
-
Page 5: Safety Checks
SAFETY CHECKS Before each use of your bath chair, please verify that the back and calf supports are properly installed and locked into position. When correctly installed, the pull tab should click into place and completely engaged into the slot. There should not be a gap between the pull tab and connector. See the figures below. - Page 6 COVER INSTALLATION AND ANGLE SETTINGS Cover Installation: (refer to seating diagram on pg. 4) Ultima (with mesh seating): • Pull on the angle adjustment pull handles (A, G) to set the backrest and calf supports to the most upright position (Fig. 3). Slip the cover over the backrest and adjustment pull handle and then calf support and pull handle (Fig.
- Page 7 COMPACT BASE ASSEMBLY The rolling base has commode pail system that is pre-installed to the system. If you need to remove it, please follow these steps: 1. Turn the rolling base upside-down. 2. Remove both support rails by using a Figure 7 Phillips screw driver (Fig.
- Page 8 COMPACT BASE ASSEMBLY Seating and Rolling Base Assembly: 1. Insert the guide rail hooks into the guide rails and slide the seating frame assembly onto the rolling base (Fig. 11). Be sure to slide the seating all the way until the safety locking latch clicks into position on the base (Fig.
- Page 9 OPERATING THE COMPACT TRANSFER BASE 1. Set the desired height on both tub base and rolling base by depressing the locking button on leg tubes and slide them up or down. 2. Place the tub base inside the tub or shower (Fig.
- Page 10 FOLDABLE BASE ASSEMBLY Rolling Base Assembly: 1. Slide the anti-tipper clamp over the rear leg tube Align slot to making sure that the notched end faces upward the holes (Fig. 18). 2. Loosely tighten the clamp and install the anti- tipper tube from the bottom, making sure that there is about ¼”...
- Page 11 OPERATING THE FOLDABLE TRANSFER BASE If ordering with footrests, insert them by aligning the slots on the footrests with the notches onto the footrest clamps (Fig. 23). Tub Base Assembly: Unfold the tub base legs by pulling the Notch legs out and rotating them into position. Each leg is in position when it locks into the slots at the bottom of the frame rail Figure 23...
- Page 12 OPERATING THE FOLDABLE TRANSFER BASE 1. With the legs in the open and locked positions, place the transfer base into the shower or tub (Fig 25). Then, roll the seating to the end of the tub base (Fig 26). Note: The shuttle base is reversible and can be installed on the slide rails in either direction to accommodate any bathroom Figure 25...
- Page 13 OPERATING THE FOLDABLE TRANSFER BASE 6. Prior to transfer, raise the calf support high enough to clear the sides of the tub (Fig. 30). Figure 30 7. When transferring, roll the shuttle base until the latch on the back clicks into the position lock bolt (Fig.
-
Page 14: Cleaning Instructions
CLEANING INSTRUCTIONS Soapy water or mild cleansers may be used on all parts of your Ultima and Ultima Access Bath Transfers. Harsh abrasive cleansers may dull the finish. FABRIC CARE The fabric cover for the bath transfer is made of polyester that is durable, antimicrobial, resilient, quick drying, fade resistant, and machine washable. - Page 15 ACCESSORIES To order accessories for the bath transfer system please call Customer Service at (800) 454-6612 or email info@inspiredbydrive.com. Head Support Pad Designed for better head positioning Lateral Support Pad Designed for better torso Positioning Belt positioning Quick release strap for various loops on chair Detachable Armrest allowing for multiple...
-
Page 16: Warranty
WARRANTY Inspired by Drive warrants this product to be free of defects in material and workmanship. Our obligation under this warranty is limited to repair or replacement of any part or entire unit at our option for a period of one year from date of delivery to the original purchaser. The warranty does not include cost of inconvenience, property damage, misuse, abuse, crash or similar incidents.
