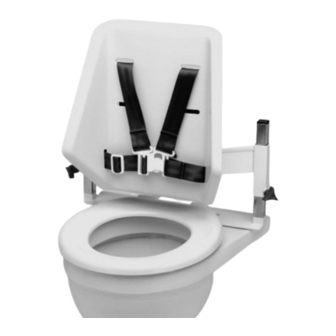

Drive inspired TCL-4210S Instructions

Toilet Support Instructions
Models:
TCL-4210S, TCL-4310M, TCL-4410L
TCL-4610S, TCL-4710M, TCL-4810M, TCL-4910L
Thank you for Choosing Inspired by Drive
Your Inspired by Drive Toilet Support has been built to the highest standards of quality to ensure years of
superior service. Please take the time to read this informative instruction guide and pay particular attention
to the safety instructions provided.

Important Safety Instructions

When using your Toilet Support, basic safety precautions should always be followed to reduce the risk of
injury.
1. Read and understand all instructions.
2. Determine, with a physician or therapist, the suitability of this support for the intended user.
3. Users with limited physical capabilities should be supervised or assisted when using this product.
4. Regularly check that all locking knobs, buckles, and other parts are tight.
5. The toilet support should only be installed on toilet seats that have a separate bolt and nut
goes through the toilet seat AND toilet support (see Figure 1). The toilet support should not be
used with a toilet seat that has the bolt encapsulated within the plastic portion of the toilet seat.

Installing your Toilet Support

Step 1: Remove your Toilet Seat

Remove your toilet seat from your toilet bowl.
unscrewing the nuts on the two bolts that hold your seat onto your
toilet bowl. If the bolts are rusted, you may need to use new nuts
and bolts when you replace your toilet seat. Do not install the toilet
support on a toilet seat that has the bolt encapsulated within the
plastic portion of the toilet seat.
(See Fig. 1)

Step 2: Mount the Base Plate

Set the base plate directly on your toilet bowl, as shown in Figure 1,
so the holes in the plate line up with those in your toilet bowl. Note:
you have a choice of using the front or rear pair of holes in the plate.
You may need to use the rear pair in order to clear the water tank on
your toilet. Otherwise you may use your choice of holes, to position
the support more forward or rearward, depending on the seat depth
that would be most comfortable for the user of the support.
C0420-00-01
Save These Instructions
This is done by
(Lo-Back)
1
(Hi-Back)
that
Figure 1
Jan 2017 (Rev G)
