4420FR_FTN_A
LK4420FR_FTN_A
Owners Manual

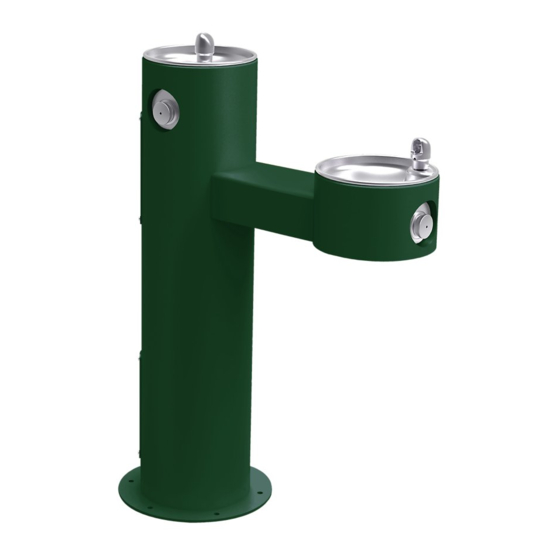

4420 Tubular Fountain with
Sanitary Freeze Resistant Dual Valve Control Assembly
INSTALLER
4420FR Fountains are among the easiest to install Fountains on the market today. To assure
you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS
BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE
WITH PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES. After installation, save these
instructions for future reference.
PAGE 1
1000003684 (Rev. D - 07/17)
Advertisement
Related Manuals for Elkay 4420FR FTN A Series
Summary of Contents for Elkay 4420FR FTN A Series
- Page 1 4420FR_FTN_A LK4420FR_FTN_A Owners Manual 4420 Tubular Fountain with Sanitary Freeze Resistant Dual Valve Control Assembly INSTALLER 4420FR Fountains are among the easiest to install Fountains on the market today. To assure you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION.
-
Page 2: Installation Instructions
4420FR_FTN_A LK4420FR_FTN_A INSTALLATION INSTRUCTIONS IMPORTANT ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON IMPORTANT! INSTALLER PLEASE NOTE. THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM THE BUILDING. - Page 3 4420FR_FTN_A LK4420FR_FTN_A SUGGESTED SITE PREPARATION DETAIL FOR THE 4420FR FTN. WHEN USING THE SANITARYFR2 VALVE 4" PVC 1/4 BEND 1-1/2" DRAIN TUBE (SUPPLIED BY INSTALLER) (SUPPLIED BY INSTALLER) 4" PVC PIPE (SUPPLIED BY INSTALLER) CONCRETE SLAB CLEANOUT PLUG FOR ACCESS 4"...
- Page 4 4420FR_FTN_A LK4420FR_FTN_A SUGGESTED SITE PREPARATION DETAIL FOR THE 4420FR FTN. WHEN USING THE SANITARYFR2 VALVE 1-1/2 DRAIN TUBE SUPPLIED WITH FTN. ( 6 ) 1/2" ( 13mm ) DIA. HOLES EQUALLY SPACED ON A 12" ( 305mm ) BOLT CENTER AIR GAP ASSY.
- Page 5 4420FR_FTN_A LK4420FR_FTN_A FOUNTAIN CONNECTIONS PLUMBING CONDUIT (BY INSTALLER) TO VALVE FIG. 3 INSTRUCTIONS FOR CONNECTING TUBES FROM VALVE TO FOUNTAIN(S) Step 1 - Insert the 1/8” O.D. tube(s) (Labeled A & B) into the connector(s) (provided with fountain). Insert the 1/8” O.D.
- Page 6 4420FR_FTN_A LK4420FR_FTN_A Stream Height Adjustment 5, 13 SEE DETAIL B DETAIL B FIG. 4 1000003684 (Rev. D - 07/17) PAGE 6...
-
Page 7: Parts List
4420FR_FTN_A LK4420FR_FTN_A The Following Items are included with the SanitaryFR2 Valve PARTS LIST PART NO. ITEM NO. DESCRIPTION 110175443890 Hex Nut - 3/8-16 28424C Bracket - Regulator Holder 40045C Hex Nut - 1-5/16 45807C Dual Valve 50986C Regulator Holder 56082C Regulator Nut 56092C Poly Tubing - 1/4”... -
Page 8: Troubleshooting And Maintenance
Sanitary Valve FIG. 8 PRINTED IN U.S.A. FOR PARTS CONTACT YOUR LOCAL DISTRIBUTOR OR CALL TECHNICAL SERVICES AT 1.800.834.4816 Halsey Taylor – halseytaylor.com Elkay – elkay.com 2222 CAMDEN COURT, OAK BROOK, ILLINOIS 60523 1000003684 (Rev. D - 07/17) PAGE 8...
