Features Diagram - Sharp Carousel SMO1969JS Operation Manual

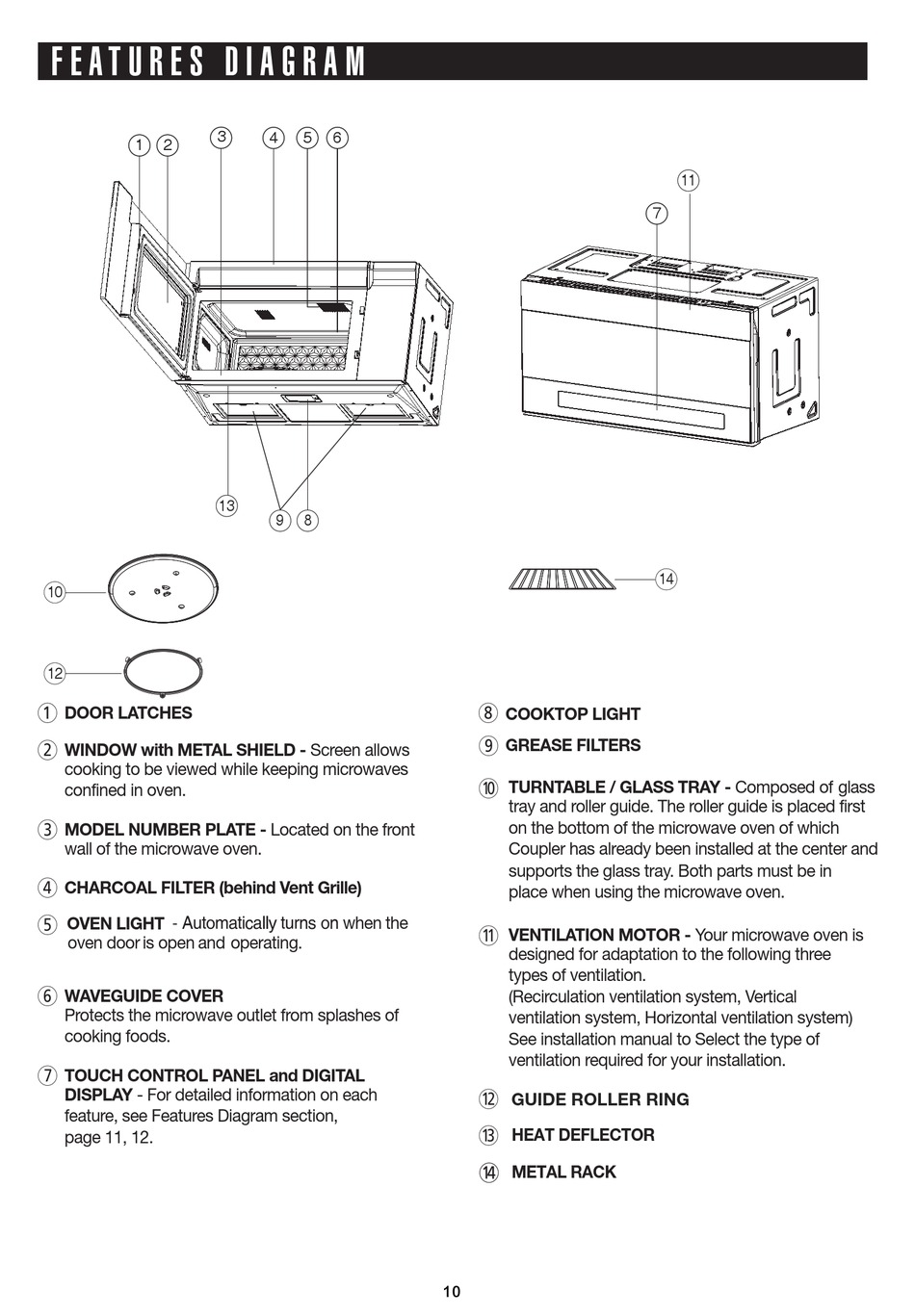

F E A T U R E S D I A G R A M
1 2
10
12
1 DOOR LATCHES
2 WINDOW with METAL SHIELD - Screen allows
cooking to be viewed while keeping microwaves
confined in oven.
3 MODEL NUMBER PLATE - Located on the front
wall of the microwave oven.
4 CHARCOAL FILTER (behind Vent Grille)
OVEN LIGHT - Automatically turns on when the
5
oven door is open and operating.
6 WAVEGUIDE COVER
Protects the microwave outlet from splashes of
cooking foods.
7 TOUCH CONTROL PANEL and DIGITAL
DISPLAY - For detailed information on each
feature, see Features Diagram section,
page 11, 12.
3
4 5 6
13
9 8
8 COOKTOP LIGHT
GREASE FILTERS
9
TURNTABLE / GLASS TRAY - Composed of glass
0
tray and roller guide. The roller guide is placed first
on the bottom of the microwave oven of which
Coupler has already been installed at the center and
supports the glass tray. Both parts must be in
place when using the microwave oven.
VENTILATION MOTOR - Your microwave oven is
q
designed for adaptation to the following three
types of ventilation.
(Recirculation ventilation system, Vertical
ventilation system, Horizontal ventilation system)
See installation manual to Select the type of
ventilation required for your installation.
w GUIDE ROLLER RING
HEAT DEFLECTOR
e
METAL RACK
10
11
7
14
