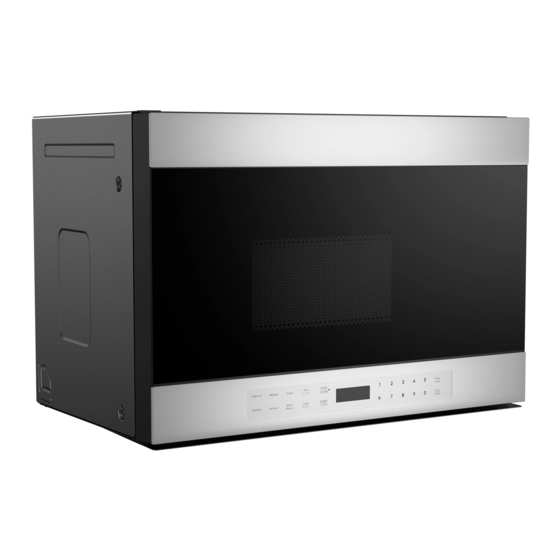

Sharp SMO1461GS Installation Manual

Sharp SMO1461GS Installation Manual

Over-the-range microwave oven
Hide thumbs Also See for SMO1461GS:

Advertisement

Available languages

Available languages

Quick Links

Over-the-Range Microwave Oven: SMO1461GS
BEFORE YOU BEGIN
Read all instructions thoroughly before installing the Over-the-
Range Microwave Oven.
Note to Installer – Leave these instructions with the consumer.
• Skill level – Installation of this appliance requires basic mechani-
cal and electrical skills. We recommend that two people install
this microwave oven.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under
the Warranty.
• If a new electrical outlet is required, its installation should be
completed by a qualified electrician before the Over-the-Range
Microwave oven is installed. See ELECTRICAL GROUNDING
INSTRUCTIONS section.
Note to Consumer – Keep these instructions for future reference.
• Save these instructions for local inspector's use.
• Observe all governing codes and ordinances.
ELECTRICAL
GROUNDING
INSTRUCTIONS
THIS APPLIANCE MUST BE PROPERLY GROUNDED
TO AVOID SEVERE OR FATAL SHOCK. PLEASE READ
CAREFULLY.
This appliance must be grounded. This oven is equipped with a cord
having a grounding wire with a grounding plug. It must be plugged
into a wall receptacle that is properly installed and grounded in
accordance with the National Electrical Code and local codes and
ordinances. In the event of an electrical short circuit, grounding
reduces risk of electric shock by providing an escape wire for the
electric current.
INSTALLATION MANUAL
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Improper use of the grounding plug can result in
risk of electric shock.
The oven is equipped with a
3-prong grounding plug. NEVER
cut or remove the grounding pin
from the plug.
The Power Supply Cord and plug
must be connected to a separate
120 Volt AC, 60 Hz, 15 Amp, or more branch circuit, single grounded
receptacle. The receptacle should be located inside the cabinet
directly above the Microwave Oven/Hood mounting location.
Note: If you have any questions about the grounding or electrical
instructions, consult a qualified electrician or serviceperson. Neither
Sharp nor the dealer can accept any liability for damage to the oven
or personal injury resulting from failure to observe the correct
electrical connection procedures.
FOR PERSONAL SAFETY
CAUTION
• Remove the house fuse or open the circuit breaker before begin-
ning installation to avoid severe or fatal shock injury.
• The mounting surface must be capable of supporting the cabinet
load, in addition to the added weight of this 50-70 lb (22.6-31.7
kg) product, plus additional oven loads of up to 50 pounds (22.6
kilograms) for a total weight of 100-120 lb (45.2-54.3 kg).
• This product cannot be installed in cabinet arrangements such
as an island or a peninsula. It must be mounted to BOTH a top
cabinet AND a wall.
• For easier installation and personal safety, we recommend that
two people install this microwave oven.
1
Ensure proper
ground before
use
E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMO1461GS and is the answer not in the manual?

Questions and answers

Summary of Contents for Sharp SMO1461GS

  • Page 1 Neither INSTRUCTIONS section. Sharp nor the dealer can accept any liability for damage to the oven Note to Consumer – Keep these instructions for future reference. or personal injury resulting from failure to observe the correct •...
  • Page 2: General Information

    GENERAL INFORMATION HOOD EXHAUST OUTSIDE REAR EXHAUST (EXAMPLE ONLY) Note: Read the next two pages only if you plan to vent your exhaust to the outside. If you plan to recirculate the air back into the room, The following chart describes an example of one possible ductwork proceed to page 6.
  • Page 3: Exhaust Connection

    GENERAL INFORMATION If you need to install ducts, note that the total duct length of 3 " EQUIVALENT EQUIVALENT LENGTH X x 10" (8.3 x 25.4 cm) rectangular or 6" (15.2 cm) diameter round LENGTH DUCT PIECES NUMBER USED duct should not exceed 140 equivalent feet (42.7 m). Outside ventilation requires a HOOD EXHAUST DUCT.
  • Page 4: Parts Included

    GENERAL INFORMATION PARTS INCLUDED TOOLS YOU WILL NEED PART NAME & PART CODE QTY. Mounting Plate 213259000685 #1 and #2 Phillips Pencil Ruler or tape measure Exhaust Adapter screwdrivers straight edge 213999001159 Top Cabinet Template 525049000030 Rear Wall Template Tin snips Scissors 525049000042 Electric drill with...
  • Page 5: Mounting Space

    GENERAL INFORMATION MOUNTING SPACE Bottom edge of cabinet needs to be 33" (83.82 cm) or more from the cooking surface " (43.49 cm) 33" (83.82 cm) min. Backsplash 69" (1.5 m) or more from the floor to the top of the microwave Notes: •...
  • Page 6: Placement Of The Mounting Plate

    STEP-BY-STEP INSTALLATION GUIDE PLACEMENT OF THE MOUNTING PLATE B. FIND THE WALL STUDS THE MICROWAVE MUST BE MOUNTED TO AT LEAST A. REMOVE THE MICROWAVE OVEN AND MOUNTING ONE WALL STUD. PLATE FROM CARTON 1. Find the wall studs using either a wall stud finder (a magnetic 1.
  • Page 7 STEP-BY-STEP INSTALLATION GUIDE C. DETERMINE TOP LINE OF REAR WALL TEMPLATE LOCATION UNDER YOUR CABINET The bottom of the cabinet has three types: BENEATH FLAT BOTTOM CABINET TOP LINE OF REAR WALL TEMPLATE Front Rear At least 24 TOP LINE OF REAR WALL TEMPLATE...
  • Page 8 STEP-BY-STEP INSTALLATION GUIDE BENEATH FRAMED RECESSED CABINET TOP LINE OF REAR WALL TEMPLATE Must align with the back frame of cabinet bottom Front Rear TOP LINE OF REAR WALL TEMPLATE...
  • Page 9 STEP-BY-STEP INSTALLATION GUIDE BENEATH FRAMED RECESS BOTTOM CABINET WITH FRONT OVERHANG TOP LINE OF REAR WALL TEMPLATE distance as the front overhang Front Rear TOP LINE OF REAR WALL TEMPLATE...
  • Page 10: Installation Types

    Adapter in place for outside top exhaust CAUTION Wear gloves to avoid cutting fingers on sharp edges. 1. Using tape measure, draw a vertical line on the wall at the center of the 24" (61 cm) wide space. 2. Tape the Rear Wall Template on the cabinet wall, align the center...
  • Page 11: Recirculating (Non-Vented Ductless)

    STEP-BY-STEP INSTALLATION GUIDE C. RECIRCULATING (NON-VENTED DUCTLESS) ATTACH MOUNTING PLATE TO THE WALL See page 17. Attach the mounting plate to the wall using the wing nuts and toggle bolts ( ⁄ " x 3" / 0.5 x 7.6 cm). At least one lag screw must be used to attach the mounting plate to a wall stud.
  • Page 12: Use Top Cabinet Template For Preparation Of Top Cabinet

    STEP-BY-STEP INSTALLATION GUIDE USE TOP CABINET TEMPLATE FOR PREPARATION MOUNT THE MICROWAVE OVEN OF TOP CABINET FOR EASIER INSTALLATION AND PERSONAL SAFETY, Drill holes for the top support screws, a hole large enough for the WE RECOMMEND THAT TWO PEOPLE INSTALL THIS power cord to fit through and a cutout large enough for the exhaust MICROWAVE OVEN.
  • Page 13 STEP-BY-STEP INSTALLATION GUIDE The Filler Block is only used for recessed cabinet and front CONNECT DUCTWORK overhang cabinet (see the type of the cabinet on page 8 - 9). Place 1. Extend the house duct down to connect to the exhaust adapter. the Filler Block to the cabinet bottom before installing the oven.
  • Page 14 STEP-BY-STEP INSTALLATION GUIDE 3. Tighten all bolts. Pull the mounting plate away from the wall to PREPARE THE REAR WALL TEMPLATE FOR OUTSIDE BACK EXHAUST help tighten the bolts. You need to cut an opening (12" x 4" / 30.5 x 10.2 cm rectangular hole) in the Rear Wall Template for outside exhaust.
  • Page 15 STEP-BY-STEP INSTALLATION GUIDE 5. Place the blower unit back into the opening. ADAPT MICROWAVE BLOWER FOR OUTSIDE REAR EXHAUST 1. Remove and save screw that holds blower motor to microwave. AFTER: Fan blade End A Lift up the blower plate. openings facing BACK End B Blower motor...
  • Page 16 STEP-BY-STEP INSTALLATION GUIDE MOUNT THE MICROWAVE OVEN Turn two full turns on each screw FOR EASIER INSTALLATION AND PERSONAL SAFETY, Cabinet mounting bolt WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN. Washer IMPORTANT: Do not grip or use handle during installation. If filler blocks are not used, outer case damage may occur from over tightening screws.
  • Page 17 STEP-BY-STEP INSTALLATION GUIDE 3. Tighten all bolts. Pull the mounting plate away from the wall to C. RECIRCULATING (NON-VENTED DUCTLESS) help tighten the bolts. Installation overview C1. Attach the mounting plate to the wall Spacing for toggles more C2. Use Top Cabinet Template for preparation of top cabinet than wall thickness C3.
  • Page 18 STEP-BY-STEP INSTALLATION GUIDE C3. ADAPT BLOWER FOR RECIRCULATION MOUNT THE MICROWAVE OVEN 1. Remove and save screw that holds blower motor to microwave. FOR EASIER INSTALLATION AND PERSONAL SAFETY, Lift up the blower plate. WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN.
  • Page 19: Change The Charcoal Filter

    STEP-BY-STEP INSTALLATION GUIDE CHANGE THE CHARCOAL FILTER Turn two full turns on each screw The charcoal filter is used for nonvented, recirculated installation. Cabinet mounting bolt The filter should be changed every 6 to 12 months depending on use. 1. Remove two screws of the louver on the top of the oven by using Washer a #1 Phillips screwdriver.
  • Page 20 SHARP ELECTRONICS CORPORATION • 100 Paragon Drive • Montvale, New Jersey 07645 • USA SHARP ELECTRONICS OF CANADA LTD • 335 Britannia Road East • Mississauga, Ontario • L4Z 1W9 • Canada...
  • Page 21: Manuel D'installation

    • IMPORTANT – Conservez ces instructions pour l’inspecteur 2. Sharp et le détaillant ne peuvent accepter aucune responsabilité local. concernant les dommages au four ou les blessures qui peuvent être • IMPORTANT – Respectez tous les codes et les ordonnances provoquées par l’incapacité...
  • Page 22: Information Générale

    INFORMATION GÉNÉRALE SORTIE D’ÉVACUATION DE LA HOTTE SORTIE D’ÉVACUATION EXTÉRIEURE ARRIÈRE (EXEMPLE UNIQUEMENT) Remarque : Lisez les instructions sur les deux prochaines pages, uniquement si vous prévoyez évacuer la sortie d’évacuation Le tableau suivant décrit un exemple d’une installation possible à...
  • Page 23 INFORMATION GÉNÉRALE LONGUEUR Si vous devez installer des conduits, prenez note que la longueur LONGUEUR ÉQUIVALENTE X totale de conduit rectangulaire 8,3 x 25,4 cm (3,25 x 10 po) ou rond ÉQUIVALENTE PIÈCES DE CONDUIT QUANTITÉ UTILISÉE 15,2 cm (6 po) ne devrait pas dépasser une longueur équivalente de 42,7 m (140 pi).
  • Page 24: Pièces Incluses

    INFORMATION GÉNÉRALE Remarque : Certaines pièces supplémentaires sont incluses. PIÈCES INCLUSES OUTILS DONT VOUS AUREZ BESOIN NOM DE LA PIÈCE ET CODE DE LA PIÈCE QTÉ Plaque de montage 213259000685 Adaptateur d’évacuation Tournevis étoile Crayon Ruban à mesurer 213999001159 no 1 et no 2 ou règle Plaque pour armoire 525049000030...
  • Page 25: Espace De Montage

    INFORMATION GÉNÉRALE ESPACE DE MONTAGE Bottom edge of cabinet Le rebord inférieur de l’armoire doit needs to be 33" (83.82 cm) être à 83,8 cm (33 po) ou plus de la or more from the cooking surface 43,49 cm " surface de cuisson (43.49 cm) 83,82 cm...
  • Page 26: Positionnement De La Plaque De Montage

    GUIDE D’INSTALLATION ÉTAPE PAR ÉTAPE POSITIONNEMENT DE LA PLAQUE DE B. TROUVER LES MONTANTS DE CLOISONS MONTAGE LE MICRO-ONDES DOIT ÊTRE INSTALLÉ SUR AU MOINS UN MONTANT DE CLOISON A. ENLEVER LE FOUR À MICRO-ONDES ET LA PLAQUE 1. Trouvez les montants de cloisons en utilisant l’une des méthodes DE MONTAGE DE LA BOÎTE suivantes : un détecteur de montant - appareil magnétique qui 1.
  • Page 27 GUIDE D’INSTALLATION ÉTAPE PAR ÉTAPE C. DÉTERMINER LA LIGNE SUPÉRIEURE DE L’EMPLACEMENT DU GABARIT MURAL ARRIÈRE SOUS VOTRE ARMOIRE Le bas de l’armoire est présenté de trois façons : EN DESSOUS DU BAS PLAT DE L’ARMOIRE LIGNE SUPÉRIEURE DU GABARIT MURAL ARRIÈRE TOP LINE OF REAR WALL TEMPLATE Front...
  • Page 28 GUIDE D’INSTALLATION ÉTAPE PAR ÉTAPE EN DESSOUS DU CADRE D’UNE ARMOIRE ENCASTRÉE LIGNE SUPÉRIEURE DU GABARIT MURAL TOP LINE OF REAR WALL TEMPLATE ARRIÈRE Must align with the back frame Doit être alignée avec le cadre arrière du bas of cabinet bottom de l’armoire Front Avant...
  • Page 29 GUIDE D’INSTALLATION ÉTAPE PAR ÉTAPE EN DESSOUS DU BAS D’UNE ARMOIRE AVEC CADRE ENCASTRÉ AVEC UN SURPLOMB AVANCÉ TOP LINE OF REAR WALL TEMPLATE LIGNE SUPÉRIEURE DU GABARIT MURAL ARRIÈRE Doit être aligné avec le bas de l’armoire à la même distance que le surplomb avant du bas de l’armoire. En dessous du bas de l’armoire à...
  • Page 30: Types D'installation

    GUIDE D’INSTALLATION ÉTAPE PAR ÉTAPE LE MICRO-ONDES DOIT ÊTRE INSTALLÉ DE NIVEAU E. MARQUAGE DU MUR ARRIÈRE DE L’ARMOIRE SANS LE GABARIT MURAL ARRIÈRE Utilisez un niveau pour vous assurer que le bas de l’armoire est de 1. La ligne du rebord inférieur de la plaque de montage doit être niveau.
  • Page 31 GUIDE D’INSTALLATION ÉTAPE PAR ÉTAPE A1. FIXER LA PLAQUE DE MONTAGE AU MUR C. RECIRCULATION (NON VENTILÉ, SANS CONDUIT) Consultez la page 17. Fixez la plaque de montage au mur en utilisant les écrous à oreilles et les boulons à ailettes (0,5 x 7,6 cm / x 3 po).
  • Page 32 GUIDE D’INSTALLATION ÉTAPE PAR ÉTAPE A2. UTILISER LE GABARIT POUR ARMOIRE 4. Fixez l’adaptateur d’évacuation à la plaque du ventilateur en la glissant dans les guides. Fixez l’adaptateur avec une vis à tôle SUPÉRIEURE POUR LA PRÉPARATION DE fournie.. L’ARMOIRE SUPÉRIEURE Percez des trous pour les vis de soutien supérieur, un trou assez grand pour passer le cordon d’alimentation à...
  • Page 33 GUIDE D’INSTALLATION ÉTAPE PAR ÉTAPE 6. Installez les filtres pour la graisse. Consultez le manuel Passe-fil de nylon Nylon grommet Power cord Cordon d’alimentation d’utilisation livré avec le micro-ondes. Armoire de métal Metal cabinet Power cord Trou du cordon d’alimentation hole AJUSTER L’ADAPTATEUR D’ÉVACUATION Ouvrez l’armoire supérieure et ajustez l’adaptateur d’évacuation...
  • Page 34 GUIDE D’INSTALLATION ÉTAPE PAR ÉTAPE B. SORTIE D’ÉVACUATION EXTÉRIEURE À L’ARRIÈRE FIXER LA PLAQUE DE MONTAGE AU MUR (CONDUIT HORIZONTAL) Fixez la plaque de montage au mur en utilisant les écrous à oreilles Aperçu de l’installation et les boulons à ailettes (0,5 x 7,6 cm / x 3 po).
  • Page 35 GUIDE D’INSTALLATION ÉTAPE PAR ÉTAPE 3. Enlevez les Pièces « A » avec des cisailles de ferblantier. UTILISER LE GABARIT POUR ARMOIRE SUPÉRIEURE POUR LA PRÉPARATION DE L’ARMOIRE SUPÉRIEURE Vous devez percer des trous pour les vis de support supérieur et un trou assez grand pour que le cordon d’alimentation puisse passer à...
  • Page 36 GUIDE D’INSTALLATION ÉTAPE PAR ÉTAPE 6. Replacez la plaque du ventilateur dans la même position. INSTALLER LE FOUR À MICRO-ONDES 7. Fixez l’adaptateur d’évacuation à l’arrière du four en le glissant POUR FACILITER L’INSTALLATION ET POUR LA SÉCURITÉ dans les guides sur la partie supérieure centrale à l’arrière du four. PERSONNELLE, NOUS RECOMMANDONS D’ÊTRE DEUX PERSONNES POUR INSTALLER CE FOUR À...
  • Page 37 GUIDE D’INSTALLATION ÉTAPE PAR ÉTAPE C. RECIRCULATION (NON VENTILÉ, SANS CONDUIT) Tournez deux tours complets pour chaque vis Turn two full turns on each screw Aperçu de l’installation Cabinet mounting bolt Boulon de montage C1. Fixer la plaque de montage au mur pour l’armoire C2.
  • Page 38 GUIDE D’INSTALLATION ÉTAPE PAR ÉTAPE 3. Serrez tous les boulons. Tirez la plaque de montage pour l’éloigner 2. Sortez lentement l’unité du ventilateur. Les fils pourront être sortis du mur pour vous aider à serrer les boulons. suffisamment pour vous permettre d’ajuster l’unité du ventilateur. Spacing for toggles more Espacez les ailettes d’un espacement plus épais que l’épaisseur du mur...
  • Page 39 GUIDE D’INSTALLATION ÉTAPE PAR ÉTAPE Lorsque vous installez le four à micro-ondes, passez le cordon (Pendant que vous serrez les vis, maintenez le four à micro-ondes d’alimentation à travers un trou dans le bas de l’armoire supérieure. en place contre le mur et contre l’armoire.) Gardez-le serrez tout au long des étapes 1 à...
  • Page 40 être visible à l’avant. Charcoal Filtre au charbon Filter 4. Replacez le volet et les vis. SHARP ÉLECTRONIQUE DU CANADA LTÉE • 335, rue Britannia Est • Mississauga, Ontario • L4Z 1W9 • Canada TINSK B 315MR R 0 OCT 18, 2021...
