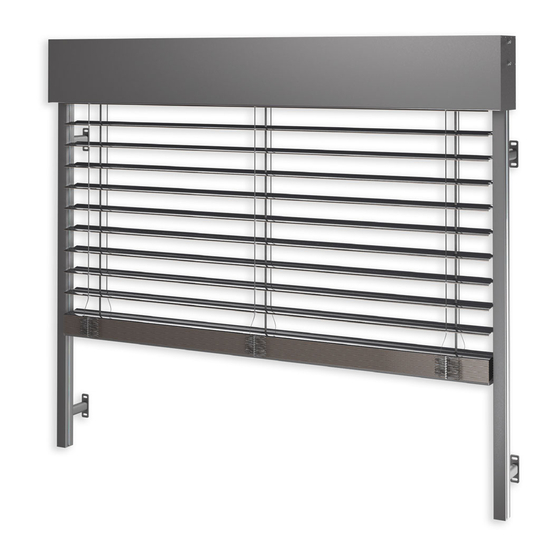

- Page 1 DT-E TECHNICAL AND OPERATIONAL DOCUMENTATION INSTALLATION AND OPERATING MANUAL AND INSTRUCTIONS FOR SAFE USE Sun protection screen Venetian Blind 1.4. Venetian Blind Z90...
- Page 2 PRODUCT NAME: SUN PROTECTION SCREEN VENETIAN BLIND Z90 PRODUCT MANUFACTURER’S MARKING: Manufacturer’s name: SELT Sp. z o. o. Manufacturer’s head office: 45- 449 Opole, ul. Wschodnia 23A Contact details: Tel: +48 77 553 21 00 (sekretariat) Fax: +48 77 553 22 00 ...
-
Page 3: Table Of Contents
Z90 MIX (WITH GUIDE AND CABLE RAIL) ............15 4.5.4. Installation of Venetian blind Z90 with cube and oval guide rails (self-supporting product) ......16 4.5.5. installation of venetian blind Z90 with cube and oval guide rail – group installation ........18 4.5.6. Manual drive ..............................22 4.5.7. -
Page 4: Introduction
INTRODUCTION 1.1. PRODUCT SAFETY TIPS The product was manufactured in accordance with the latest know-how in the area of constructing and manufacturing and is delivered in condition allowing for its safe use.. Safe construction of the product is achieved by: Subject European legal basis Polish legal basis... -
Page 5: Definitions
SELT Sp. z o. o. with a head office in Opole shall hold the copyrights to this documentation. The documentation cannot be used without permission, either partially or as a whole, for any concurrent business activity nor can it be made available to third parties. -
Page 6: Product Technical Information
PRODUCT TECHNICAL IN FORMATION Product technical specification is available at www.selt.com after log in. 2.1. TECHNICAL PARAMETERS : Maximum dimensions: Width Height Max. area 4500 mm (for height. 4500 mm** (for height. Electric drive (rail guide) * 4400 mm) 3200 mm) -
Page 7: Product Transport And Storage
COMPLETNESS AND QUAL ITATIVE STATE OF DEL IVERY Selt Sp. z o. o. makes every effort to ensure that the goods are produced in accordance with the order. To check the completeness of the product is purchaser’s duty and it should be conducted at the time of delivery. Any discrepancies of the product with the order should be reported immediately to the driver/warehouseman/installers and noted in the proof of delivery at the risk of losing warranty. -
Page 8: Product Installation
PRODUCT INSTALLATION The following part covers general requirements of the product installation. Proper installation is necessary for efficient operation of the product. SELT Sp. z o. o. recommends to use services of skilled installation crews what guarantees the Purchaser proper installation. -
Page 9: Preparation To Installation
Therefore one should check the placement if mechanisms in the head rail before commencing the installation. 4.5.1. INSTALLATION OF THE VENETIAN BLIND Z90 W ITH COVER PANEL Before commencing the installation of the blind, measure and mark the placement of main cover panel brackets, so that they do not collide with the motor and rolling mechanisms. - Page 10 Correct fit of cover panel brackets Auxiliary cover panel brackets (4 dimensions) Main cover panel bracket Insert silencing cap on the Measure the positions of the Fasten the set of brackets auxiliary bracket main brackets so that they along with the cover panels don’t interfere with...
- Page 11 Guide rails types for Z90 Venetian Blind with cover panel Double guide rail (for modular installation) Single guide rail Single and double guide rail bracket types Type 4 Type 2 Type 3 Type 1 standard Type 4 installation manner Loosen the cone shaped screw so that the bracket is easy to click into the guide rail.
- Page 12 Install the brackets into the guide Tighten rail according to the assembly method for a given type of bracket. See pic. 8 and 9 Slide the guide rail on the slat Measure precisely the placement of pins and bottom bar. guide rail axis and check its vertical position in two planes.
-
Page 13: Installation Of Venetian Blind Z90 - Cable Guide
4.5.2. INSTALLATION OF VENE TIAN BLIND Z90 – CABLE GUIDE Before installing the blind, measure and marked the positions of cover panel main brackets in such a place that they do not interfere with the mechanisms and the motor. ... - Page 14 9. Secure the cable tightener by 10. Loosen upper screw (locking tightening the conical screw movable part of the tightener). until a resistance is felt. Then Stop when the movable part use a Allen key performing 1,25- pulls out. 1,5 full turn, bearing in mind to leave some clearance required correct tightener...
-
Page 15: Installation Of Venetian Blind Z90 Mix (With Guide And Cable Rail)
4.5.3. INSTALLATION OF VENETIAN BLIND Z90 MIX (WITH GUIDE AND CABLE RAIL ) Before commencing the installation of the blind, measure and mark the placement of main cover panel brackets, so that they do not collide with the motor and rolling mechanisms. ... -
Page 16: Installation Of Venetian Blind Z90 With Cube And Oval Guide Rails (Self-Supporting Product)
4.5.4. INSTALLATION OF VENE TIAN BLIND Z90 WITH CUBE AND OVAL G UIDE RAILS (SELF-SUPPORTING PRODUCT) Guide rails for self-supporting installation of Z90 Venetian Blind Oval guide rail Cube guide rail Self-supporting bracket Recommended number of brackets for Cube and OVAL guide rail Recommended number of guide rail brackets Blind height [mm] Brackets number... - Page 17 Manner of installation Slide the fixing element into guide rail channel. Loosely secure self-locking nut until resistance appears. Proper tightening should be performed with a wrench (10") and maximum 4 full turns (1440°).. NOTE: bigger turn will result in tearing out the threaded stud! Measure and mark the spots According previous...
-
Page 18: Installation Of Venetian Blind Z90 With Cube And Oval Guide Rail - Group Installation
Check the level of the guides. 7. Connect head rail brackets to flat bars placed in the cassette 9. Connect the cassette with guide rails by sliding the installation flat bars into the guide rail channel, Loosen the installation flat bar then tighten the screws with on the cassette side Allen wrench. - Page 19 Measure and mark installation place of the second bracket 4. Install the second bracket 5. Measure and mark the installation spot of the next bracket. Install the bracket, installation steps 3-4. Check the vertical level of the installed brackets, correct if necessary.
- Page 20 Loosen cone shaped screws, securing the bolts and pull the bolts out. 12. Slide the guide rails on bracket bolts, settle the guide rail and with Allen wrench tighten the cone shaped screws. Install consecutive guide rails. Check the level of installed Loosen the installation flat bar guide rails in the cassette so that it can be...
- Page 21 20. Insert the head rail with Put the head rail with bundle bundle to the guides. into the open bracket, so that the label „this side to window” faces the window. 22. Tighten the screws on the Install the consecutive elastic brackets.
-
Page 22: Manual Drive
4.5.6. MANUAL DRIVE Gear placement in relations to other components Opis: Cover panel main bracket Head rail Wall-grommet Gear Max 500mm Adjustable crank bracket: Manual drive installation Establish head rail placement , then transfer gear box extension position on the wall. Make it inside the room. Drill through the wall from the inside of the room - with a diameter drill fi12. -
Page 23: Concealed Guide Rail Installation
4.5.7. CONCEALED GUIDE RAIL INSTALLATION Guidelines for installation Application of concealed side guides is especially recommended for installation of venetian blinds in deep recessed windows. Using concealed guide rails does not decrease window opening as compared with other kinds of guide rails. Cover panels for venetian blinds with concealed side guides are made without side covers. - Page 24 Measurements are taken by the Ordering Party who is responsible for their correctness. In case of dimensional inconsistency of the ordered system that is caused by measurements quality, SELT Sp. z. o. o Company is not responsible for venetian blinds not being possible to be mounted correctly.
- Page 25 Installation of venetian blind with concealed side guide. Before installation you must determine and mark location of the cover panel’s main brackets, so they don’t interfere with lifting mechanisms and with the motor. Initially fix the auxiliary bracket to the main bracket. Then put them against cover panel, adjust to proper length and tighten the screw.
-
Page 26: Window Frame Guide Rail Installation
Stick the end cap using the silicone. SELT Sp. z o.o. company is not responsible for incorrect operation of the blinds with guide rail if the substructure does not provide straight and parallel installation of guide rail profiles. DT-E 1.4: SUN PROTECTION SCREEN – VENETIAN BLINDS Z90... - Page 27 Recommendations for installation of Venetian Blind with window frame guide rail. Fig. 7. Window frame guide rail installation: a) – window installation b) – niche installation Installation of Venetian Blind with window frame guide rail. Before commencing the installation of Venetian Blind it is necessary to measure and mark the placement of main brackets for cover panel in such place so that they do not collide afterwards with rolling mechanisms and motor.
-
Page 28: Z90 With Under-Plaster Cassette Installation
6. Install window frame guide 7. Slide head rail with rail to window or window bundle into guide rails, niche. so that the label „this side to window” faces the window. Incorrect installation bundle will cause incorrect operation of the blind. For easier installation the bundle can be tilted, so that the pins are not damaged... - Page 29 Installation guidelines. Application of system with under-plaster cassette is advised for the installation of Venetian Blind on facades with thermal insulation. Under-plaster cassette limits the effect of thermal bridge and provides aesthetical finishing of the façade without reducing the light of window opening, as opposed to other guide rail systems. Scheme of the system is presented by Fig.
- Page 30 Cassettes longer than 3 m are supplied with extensions and cassette angles, as a two-piece element connected by a riveted tab. SELT Sp. z o.o. company is not responsible for incorrect operation of the blinds with guide rail if the substructure does not provide straight and parallel installation of guide rail profiles.
- Page 31 Under-plaster cassette is delivered without hole for feeder cable. It has to be done individually according to the guidelines below. In the side of the cassette drill Ø13 opening and install the choke delivered with the system. Direct the feeder cable through the choke to the cassette. ...
- Page 32 Install head rail brackets in the under-plaster cassette – Fig. 17. Fig. 17 Drill mounting holes in the guide in accordance with guideline above. Note: Guide rails can be delivered with the holes if needed. Drilling holes in the guide rails is paid an additional service.
- Page 33 10. Lift up the bundle and install head rail into main brackets. Special attention has to be paid for correct pins inserted into guide rail 11. Closed bundle install into elastic brackets and tighten the screws. Img. 4 Place guiding profile into the guide rail according to img.
-
Page 34: Installation Of Venetian Blinds Z90 Box With Under - Plaster Cassette Box3, Box4, Box5
16. Pull up the VB to the upper position, till bundle will hide into the cassette. Fig. 21 17. Install the revision lid to the under-plaster cassette and secure it with screws –fig. 22 and 23. 18. Secure the guide and cassette for the time of insulation and plastering. -
Page 35: Electric Drive
Electrical connection and setup of the motors must be done in accordance with the manual of motor manufacturer. Manuals are added to the product as well as are available on motor manufacturer’s website and: www.selt.com → PRODUCTS → AUTOMATION Environmental conditions of increased threat: bathrooms and showers, kitchens, garages, cellars, saunas, rooms for domestic animals, operating theatres in hospitals, pump rooms, heat exchange rooms, spaces limited by conducing areas, campsites, open spaces, etc. -
Page 36: Start-Up And Adjustment
4.6.2. START-UP AND ADJUSTMENT extreme position (up and down movement of the slats) are protected by limit switches that need to be adjusted during the installation, adjustment of limit switches must be done in accordance with motor’s maintenance manual, ... -
Page 37: Safety Requirements Connected With Particular Conditions And Places Of Product Use
All work must be carried out with due diligence taking into account safety requirements, Maintenance work and product repairs should be carried out only when the product is disconnected from the power source, Markings on the product should be observed (e.g. icons, arrows denoting the direction of motion), ... -
Page 38: Supervision Of Safe Product Use
Centrally controlled products can activate automatically. Make sure no dangerous situation arises. SELT Sp. z o. o. shall not be responsible for damage due to improper use. Operating the system out of one’s sight can result in heavy injuries as well as system damage OSTRZEŻENIE ! -
Page 39: System Use And Maintenance
effectiveness of operation of the residual current device. Possibly adjusting and improving the mounting of the changed sub-assembly. Products manufactured by SELT Sp. z o. o. do not require special maintenance treatment. Using the product in accordance with the manufacturer’s recommendations assures the user log-term and fault-free operation. Routine maintenance activities should be carried out on a maximally opened system. -
Page 40: General Warranty Conditions
Do not let the water to get into system head rail. GENERAL WARRANTY CON DITIONS General warranty conditions are available on www.selt.com. In case of no access to the SELT website, the warranty conditions can be obtained from the sales representative of SELT Sp. z o. o. -
Page 41: Complaints/ Technical Faults
Powder RAL 7016 mat used by the company SELT Sp. z o.o. has Qualicoat approval with No. P-1281. The powder is used in accordance with the technical data sheet of the product. The powder is specially selected to be very flexible - which is necessary in our production process, and consequently is softer and thus may be visible scratches on its surface as a result of transport or use of painted elements - which is unavoidable. -
Page 42: Technical Faults
notifications can be sent to the email address reklamacje@selt.com or directly to the sales representative. Complaints / faults should be made on the ‘complaint notification form’ which can be found on the website: www.selt.com,... -
Page 43: Marking And Labelling The Product With The Ce Mark
10.1. PRODUCT COMPLIANCE WITH THE CE STANDARD Products manufactured by SELT company meet the essential requirements of the standard introduced by the Polish Committee for Standardization as PN-EN 13659, which is confirmed by the manufacturer’s declaration of performance and marking the product with the CE mark. - Page 44 SELT Sp. z o. o. Opole, ul. Wschodnia 23A POLAND EN13659 Venetian blind Z90 MIX for external use with mixed side guides DoP 85/ŻF/2018 Essential characteristics Performance Odporność na obciążenie wiatrem Harmonised technical Class specification Height Side Type Width [cm]...
