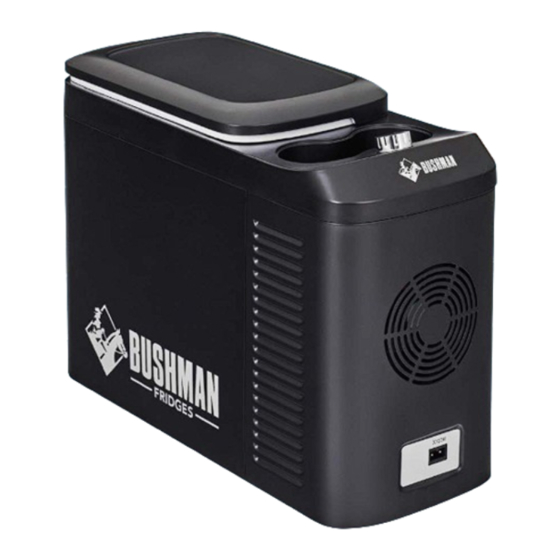

Bushman ROADIE Owner's Manual & Operating Instructions

Bushman ROADIE Owner's Manual & Operating Instructions

15l car fridge

Advertisement

Quick Links

ROADIE 15L
CAR FRIDGE
Owners Manual &
Operating Instructions
MODEL SC15: 12V / 24V
Please read carefully
before use and
installation

Advertisement

loading
Need help?

Need help?

Do you have a question about the ROADIE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bushman ROADIE

  • Page 1 ROADIE 15L CAR FRIDGE Owners Manual & Operating Instructions MODEL SC15: 12V / 24V Please read carefully before use and installation...
  • Page 2 Important Information – D o not lay your Bushman on its back or sides or at any angle exceeding 30°. – N ever operate your Bushman directly from 240V mains power without using a 240V – 12V adapter. – D o not use a modified sine wave inverter to operate your Bushman. Fitting The Tie-Down Brackets Safe Operation VENTILATION 1. B efore fitting the tie-down brackets, please put the transit cover on the fridge. The transit cover has cut-outs for the Always allow sufficient air ventilation around the front and position of the tie-down brackets. sides of the compressor compartment. This will ensure heat can escape easily from the compressor and condensor. 2. P osition the tie down brackets on each end of the fridge cabinet and align using a spirit level. You can hold them in NORMAL OPERATING SOUNDS place with masking tape. You may hear faint gurgling, bubbling or whirring sounds 3. Mark the position of the 4 holes. when your Bushman is running. This is normal as the 4. R emove the tie-down brackets and drill 3mm pilot holes...
  • Page 3 Trouble Shooting Beep / Flashing Light The Roadie is fitted with a small internal speaker. If your compressor notices an error, after a minute it will start to beep and the blue LED will flash. NO. OF BEEPS/ ERRORS FLASHES Battery protection cut-out The voltage is outside the cut-out setting, Refer to VOLTAGE ISSUES below. A) Too many start attempts After multiple failed attempts to start due to low voltage B) Fan over current cut-out The fan loads the electronic unit with more than 0.5 A avg Refer to VOLTAGE ISSUES below. Motor start error The rotor is blocked or the differential pressure in the refrigeration system is too high (>5 bar). Contact BUSHMAN. Minimum motor speed error Refrigeration system is too heavily loaded. Motor cannot maintain minimum speed approx 1,850 rpm.
  • Page 4 CONNECTION fridge and wiggling the connections to see if the power light flickers. Fridge does not run 3. CONTACT HEAD OFFICE Measurements 380mm 220mm 535mm Weight = 10kg Warranty DP Refrigeration trading as Bushman Fridges ABN 94 615 295 255 (Bushman) warrants, to the This warranty does not apply to damage or wear to the product caused by accident, abuse, original owner, that this product is free from defects in workmanship and material for a period misuse, neglect, unauthorized alteration or repair, or if the product was not installed in of three years from the purchase date. This warranty shall be limited to repairing or replacing, accordance with Bushman printed installation and operating instructions. To obtain service under at Bushman’s option and without charge to the purchaser, defective components. All warranty this warranty, the defective product must be returned to Bushman in clean condition together work shall be performed at a Bushman approved facility. Shipping charges related to returning with original purchase receipt. Any product repaired or replaced under this warranty will be the product to the bushman facility are not covered under this warranty. However, this warranty warranted for the balance of the warranty period with respect to the original purchased product. covers shipping charges related to returning the repaired product to the customer. T +61 3 8080 9990 E info@bushman.com.au BUSHMAN.COM.AU...

This manual is also suitable for:

Sc15
