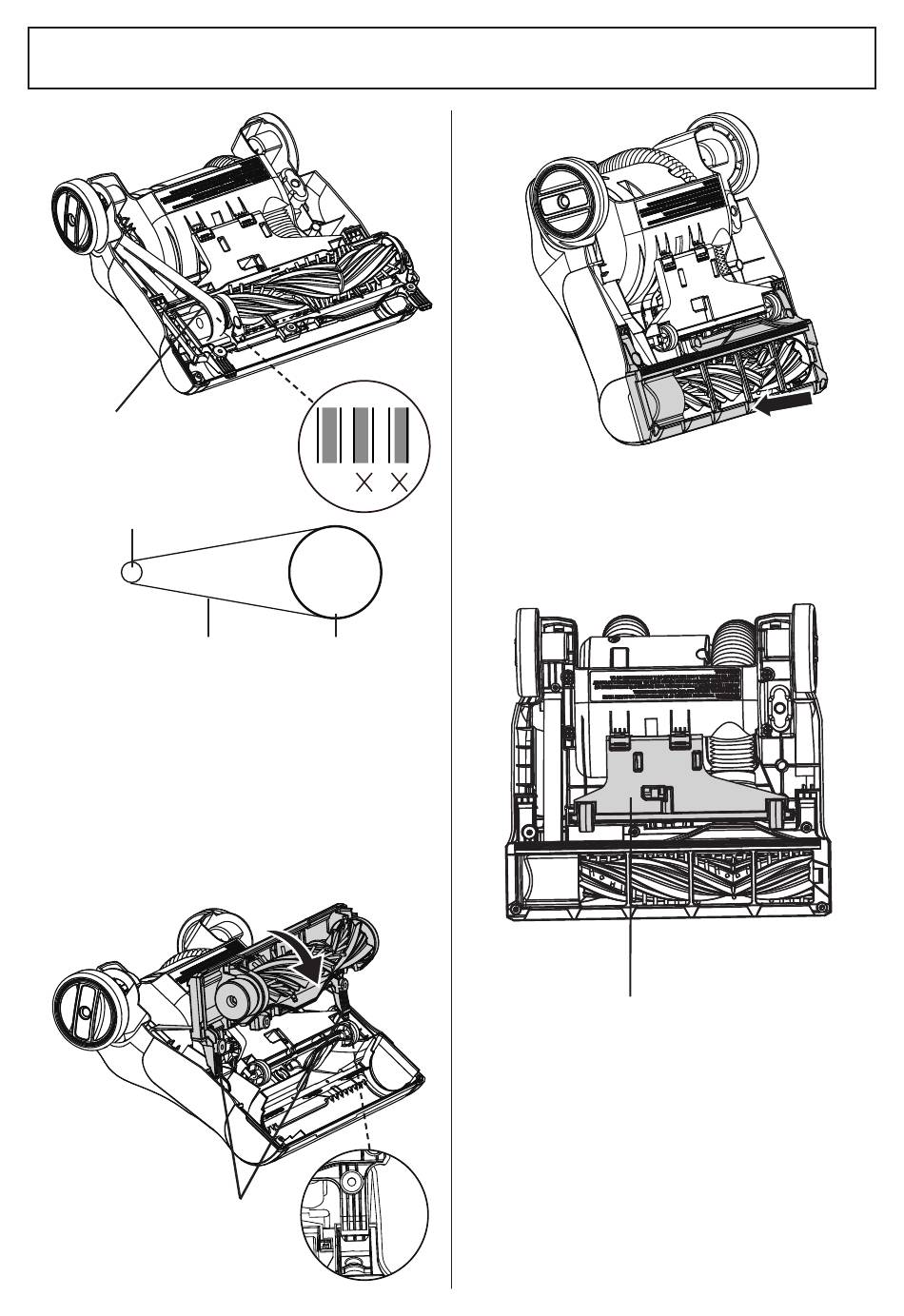

Kenmore FeatherLite DU1096 Use & Care Manual page 22

Belt Path
Motor Shaft
Belt
8. Reinstall the lower plate with the
brushroll back into the floor nozzle. First
align the two locking tabs on the lower
plate with the slots in the nozzle as
shown. Then rotate the lower plate down
onto the brushroll housing. Press on the
middle part of the lower plate until you
hear a "click". Rotate the brushroll to
make sure the belt is installed correctly.
Locking
Tabs
BELT CHANGING
√
NOTE:
wheel bracket is properly fixed by the
lower plate and cannot be lifted off.
Brushroll
I
- 22 -
Check to make sure the small
Small Wheel Bracket
II
