Summary of Contents for Simpsons NBDSC0850

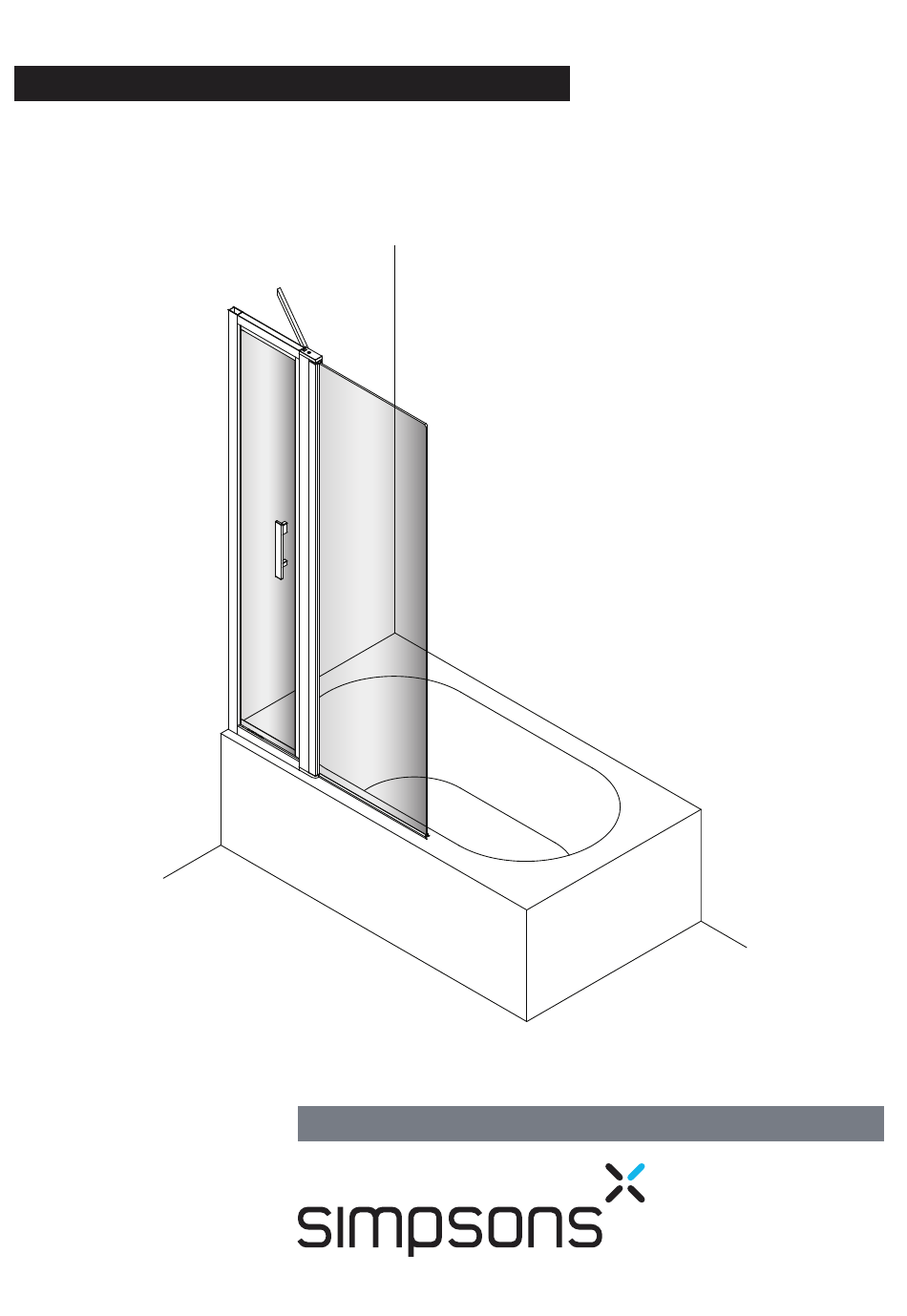

- Page 1 NBDSC0850 CLICK BATH SCREEN WITH PIVOT PANEL INSTALLATION INSTRUCTIONS...
-
Page 2: Very Important
Check the contents of the pack carefully before installation. Simpsons will not be held responsible for any de-fit / re-fit costs before installation, water may soak into the wall behind the wall where faulty product has been fitted. -
Page 3: Tools And Equipment Needed
CONTENTS CLICK BATH SCREEN WITH PIVOT PANEL M4 *40mm Screw x 4 ST4*35mm Screw x 1 Top Pivot Cover x 1 ST4*10mm Screw x 1 Wall Plug x 5 M3.5 *10mm Screw x 4 Bottom Pivot Cover (LH) x 1 Cover 1 x 1 Cover x 4 Bottom Pivot Cover (RH) x 1... - Page 4 Please follow diagram below for the correct assembly for Left or Right hand installation. Left - Assemble pivot door (LH) Right - Assemble pivot door (RH)
- Page 5 Step 1 - FITTING AND POSITIONING WALL CHANNEL Place wall channel in position on the bath (15mm in from the edge of the bath), use a spirit level to ensure that it is vertical, and mark all 4 fixing holes on the wall. Drill holes in the positions marked using a 6mm masonry drill bit.
- Page 6 Step 4 Once you have checked that the door opens and closes correctly fix the door frame to the wall channel. From inside, drill 4 holes through wall channel/door frame utilizing the predrilled holes with a 2.8mm drill bit. Fix using screws (C) and push on the screw covers (D). Step 5...
- Page 7 Step 6 For any further information please contact Simpsons on: 0845 873 5808 Or visit our web-site at www.simpsons-enclosures.co.uk The manufacturer reserves the right to make technical modifications without prior notice.
