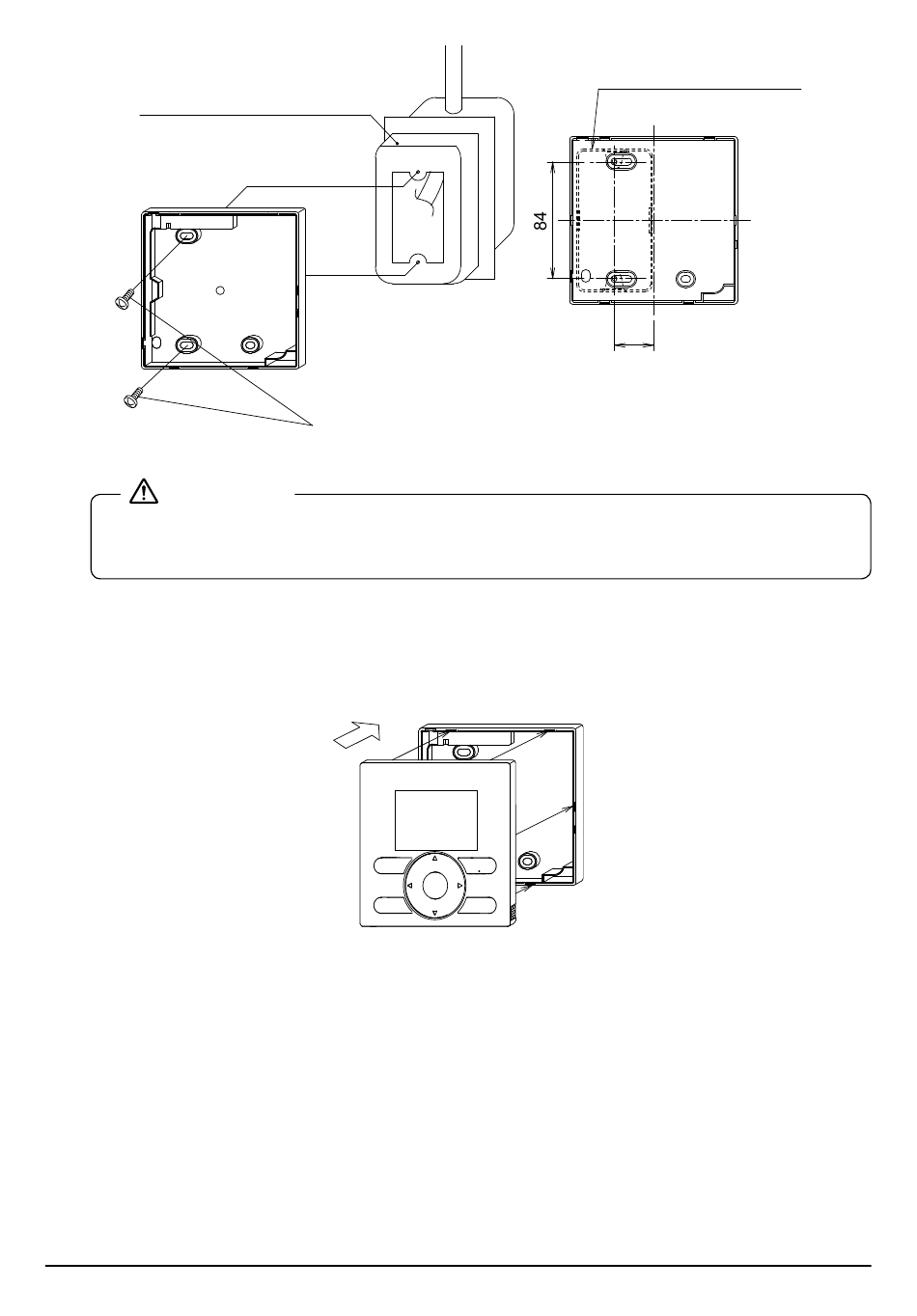

Switch box
(field supply)
(Use optional accessory
KJB111A)
CAUTION
● Select flat place for installation face as possible.
● And, do not tighten the installation screws too much not to deform the lower case.
3-7 Install the upper case as original condition.
● Align the upper case with tabs of the lower case (6 points), inset and install the upper case.
● Install the wiring with care to prevent the pinch.
● Peel off a protective seal which is attached on the upper case.
Installation manual
9
Small screws (M4×16)
Switch box for one unit
(with no cover)
28
(Installation pitch)
4PW72364-1 – 11.2011
BRC1E52B7
