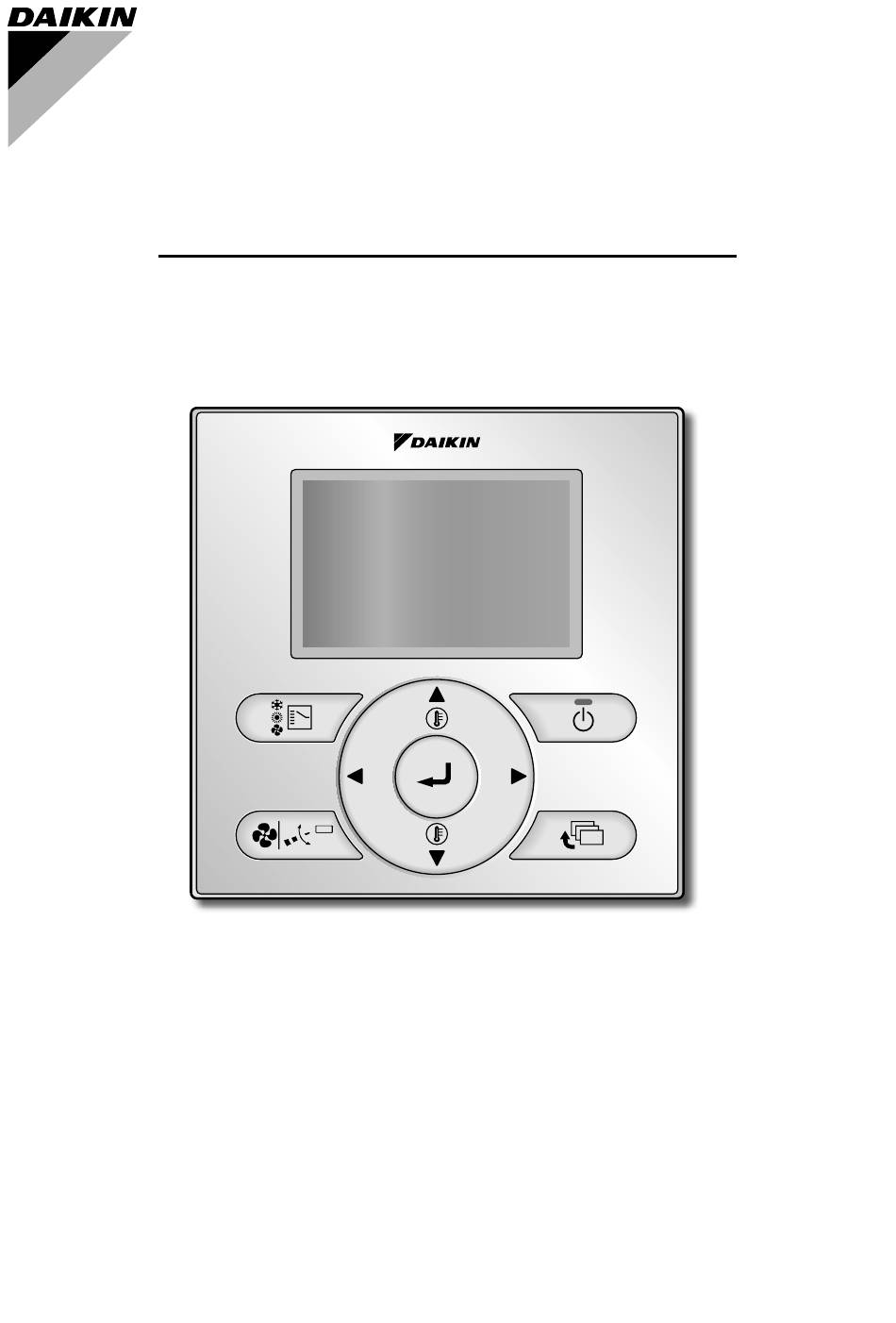

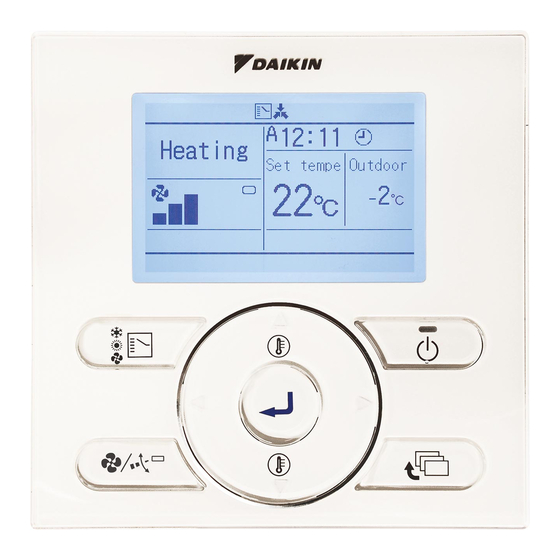

- Page 1 WIRED REMOTE CONTROLLER INSTALLATION MANUAL BRC1E52B7 Be sure to read this installation manual before conducting the installation of this product.
-
Page 2: Table Of Contents
8. Checking procedure of Error History .... 19 9. Registration method of the Maintenance Contact ........20 10. Confirmation of registered details ....21 11. Clock & Calendar ..........22 12. Language ............23 13. Prohibit buttons ..........24 14. Prohibit Function ..........25 Installation manual BRC1E52B7 4PW72364-1 – 11.2011... -
Page 3: Safety Precautions
Make sure that all wiring is secured, the specified wires are used, and that there is no strain on the terminal connections or wires. Improper connections or securing of wires may result in abnormal heat build-up or fire. The choice of materials and installations must comply with the applicable national and international standards. BRC1E52B7 Installation manual 4PW72364-1 – 11.2011... - Page 4 ● A place where is not exposed to direct sunlight. ● A place where is far apart from heat source. ● A place where is not affected by outside air due to door opening/closing or the like. Installation manual BRC1E52B7 4PW72364-1 – 11.2011...
-
Page 5: Accessories
PC-board with the Screwdriver screwdriver. Take care that dust or moisture does not touch the PC-board of removed Lower case Insert and twist the screwdriver upper case. lightly for removal. BRC1E52B7 Installation manual 4PW72364-1 – 11.2011... - Page 6 3-5 Conduct wiring. CAUTION 1. Switch box and transmission wiring are not attached. 2. Do not directly touch the remote controller PC-board. Wiring Specifications Wiring Type Sheathed vinyl cord or cable Wiring Size 0.75~1.25 mm Installation manual BRC1E52B7 4PW72364-1 – 11.2011...
- Page 7 (P1 and P2 have no polarities.) 3-5-1 Back outlet Indoor unit Lower case Upper case PC-board Clamp Clamp Cross-section Secure the wiring at the wiring fixing point by using attached Wiring fixing clamping material. point <Wiring fixing guideline> BRC1E52B7 Installation manual 4PW72364-1 – 11.2011...
- Page 8 Wiring wiring retainer to prevent wiring pinch according to left figure. Cross-section Indoor unit P1P2 Lower case Upper case PC-board 3-5-4 Upper center outlet Indoor unit P1P2 Wiring retainer Lower case Upper case PC-board Installation manual BRC1E52B7 4PW72364-1 – 11.2011...
- Page 9 3-6-2 In the case of installation on the switch box Secure by using attached small screws (2×). Switch box for two units Switch box (with no cover) (field supply) (Use optional accessory KJB211A) (Installation pitch) Small screws (M4×16) BRC1E52B7 Installation manual 4PW72364-1 – 11.2011...
- Page 10 ● Align the upper case with tabs of the lower case (6 points), inset and install the upper case. ● Install the wiring with care to prevent the pinch. ● Peel off a protective seal which is attached on the upper case. Installation manual BRC1E52B7 4PW72364-1 – 11.2011...
-
Page 11: Functions And Menu Items Of Remote Controller Buttons
● Used to highlight the next items on the Filter Auto Clean right-hand side. Maintenance Information ● Display contents are changed to next Configuration screen per page. Current Settings Clock & Calendar Language *Depending on connected model BRC1E52B7 Installation manual 4PW72364-1 – 11.2011... - Page 12 Highlighted display (selected items) Test Operation Maintenance Contact Field Settings Min Setpoints Differential In the highlighted display (selected items) Group Address setting screen, descriptions of button Outdoor unit Airnet Address operation are displayed. Return Setting Installation manual BRC1E52B7 4PW72364-1 – 11.2011...
-
Page 13: Power-On
If the basic screen is not displayed more than 2 minutes after "sub remote controller" display, shut off the power supply and check the wiring. NOTE Language When selecting a different language, refer to . (See page 23.) BRC1E52B7 Installation manual 4PW72364-1 – 11.2011... -
Page 14: Field Settings
SECOND CODE NO. which may be set are displayed as Press Menu/Enter button. " * ". " * " is changed to SECOND CODE NO. to be set. And, SECOND CODE NO. " - " means no function. Installation manual BRC1E52B7 4PW72364-1 – 11.2011... - Page 15 Setting number of connected Sky Air simultaneous operation system 11 (21) Pair Twin Triple Double twin indoor units (setting for simultane- ous operations system) BRC1E52B7 Installation manual 4PW72364-1 – 11.2011...
- Page 16 ● Thermostat sensor in remote controller (SkyAir only) ● Thermostat sensor in remote controller for auto mode operation and Setback function only 3. Any function which the indoor unit does not have is not displayed. Installation manual BRC1E52B7 4PW72364-1 – 11.2011...
-
Page 17: Test Operation Method (In The Case Of Skyair)
4 seconds or longer. Service Settings Group Address Press Menu/Enter button. menu is displayed. Return Setting Select Test operation in the Service Settings menu, and press Menu/Enter button. Basic screen returns and "Test operation" is displayed. BRC1E52B7 Installation manual 4PW72364-1 – 11.2011... - Page 18 (If the operation is performed, the indoor unit may be contaminated with the materials which arise from paints or adhesives during the interior work, and water splash or water leak may occur.) Installation manual BRC1E52B7 4PW72364-1 – 11.2011...
- Page 19 "Error code list" in the installation manual of the indoor unit. And when the unit No. which detected the error during group control is 8. Checking confirmed, refer to " procedure of Error History ". BRC1E52B7 Installation manual 4PW72364-1 – 11.2011...
-
Page 20: Checking Procedure Of Error History
History display screen 3 times. 02 –– –– –– –– –– ––:–– 03 –– –– –– –– –– ––:–– The basic screen returns. 04 –– –– –– –– –– ––:–– Return Unit No. Latest record Installation manual BRC1E52B7 4PW72364-1 – 11.2011... -
Page 21: Registration Method Of The Maintenance Contact
Press Cancel button once. Maintenance Contact The basic screen returns. 0123 – 456 – ––– 7890 Press Menu/Enter button. Return Setting <Setting confirmation screen> Maintenance Contact Save the settings? Press Menu/Enter button. Return Setting <Service Settings menu screen> BRC1E52B7 Installation manual 4PW72364-1 – 11.2011... -
Page 22: Confirmation Of Registered Details
Energy Saving Options Schedule Filter Auto Clean Maintenance Information Press Menu/Enter button. Return Setting Maintenance Information Registered details Contact Info are displayed. 0123 – 4567 – 8900 ––– /000 Indoor unit ––– /000 Outdoor unit Return Installation manual BRC1E52B7 4PW72364-1 – 11.2011... -
Page 23: Clock & Calendar
Setting details are confirmed and basic 11-5 screen returns. Date & Time Save the settings? * If duration of power outage exceeds 48 hours, reset is needed. Press Menu/Enter button. Return Setting <Basic screen> BRC1E52B7 Installation manual 4PW72364-1 – 11.2011... -
Page 24: Language
Current Settings Clock & Calendar "Language" on the Language screen. Language English/Deutsch/Shqip/Български/ Press Menu/Enter button. Hrvatski/Česky/Magyar/Română/ Return Setting Srpski/Slovenčina/Slovenščina Pressing Menu/Enter button. 12-2 Setting details are confirmed and basic Language screen returns. English Return Setting Installation manual BRC1E52B7 4PW72364-1 – 11.2011... -
Page 25: Prohibit Buttons
2. And push the 3 other indicated keys simultaneously while keeping the button pressed. To unlock menu button in basic screen, follow the same procedure. NOTE: When pushing a prohibit button, will be displayed. BRC1E52B7 Installation manual 4PW72364-1 – 11.2011... -
Page 26: Prohibit Function
"sub". 14-6 Prohibit function NOTE: When a function is prohibited, the Save the settings? will be displayed next to the function in the main menu screen. Press Menu/Enter button. Return Setting <Basic screen> Installation manual BRC1E52B7 4PW72364-1 – 11.2011... - Page 28 4PW72364-1 11.2011...
