Summary of Contents for Kärcher 500 PSI-13 Gallon

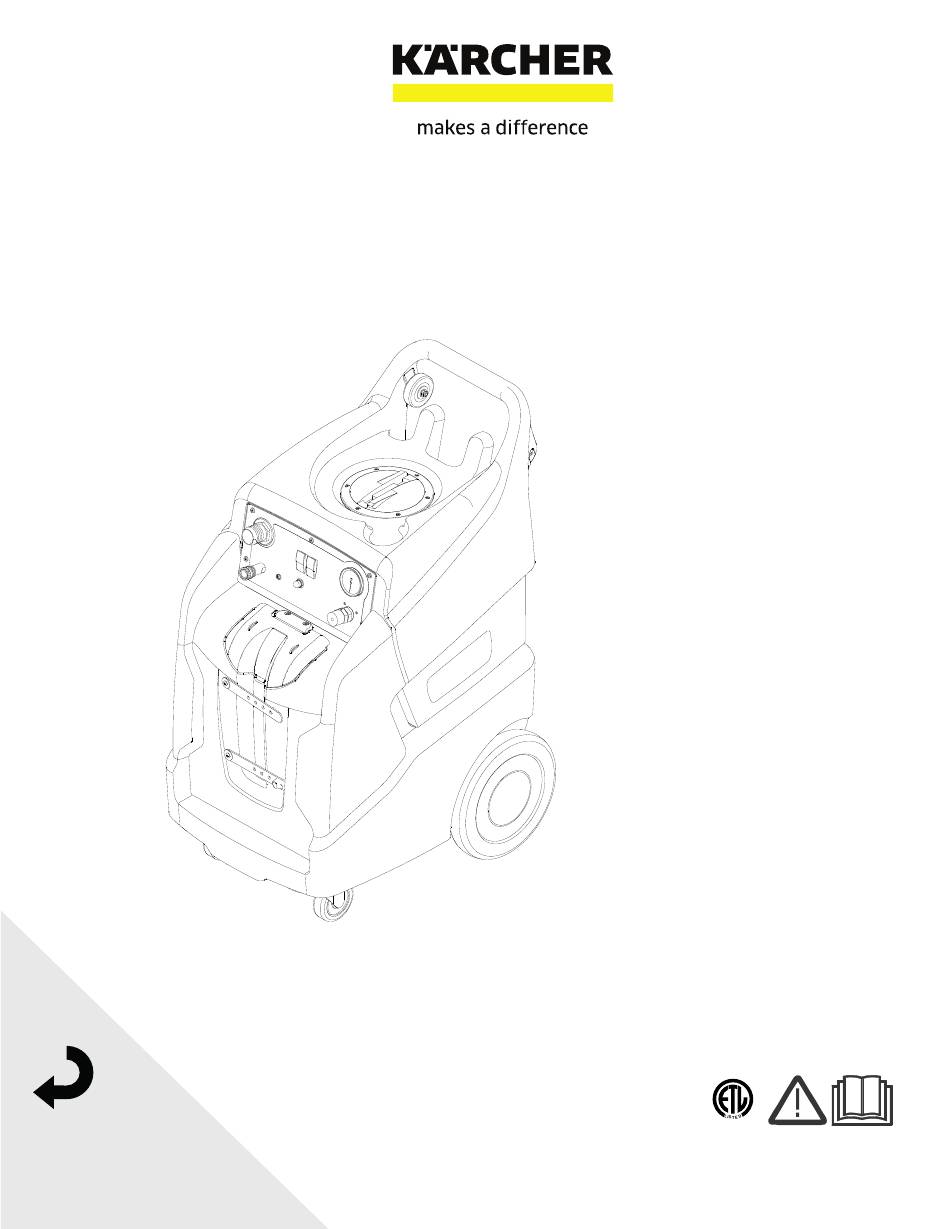

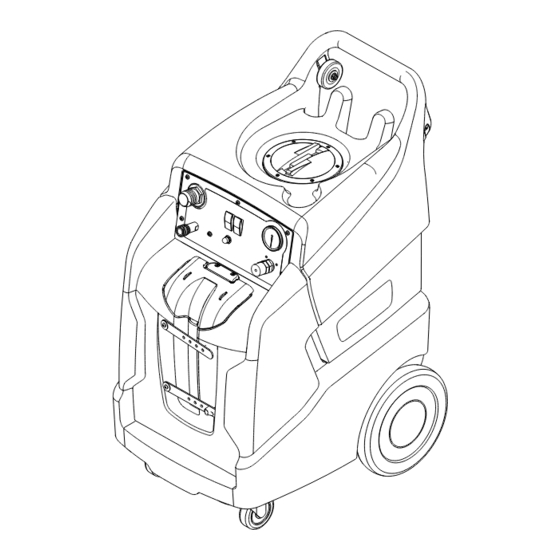

  • Page 1 500 PSI-13 Gallon English ® Register 8.634-334.0-R 12/12/22 your product www.kaercher.com/welcome...
  • Page 2: Machine Data Log / Overview

    Machine Data Log / Overview Model: Date of Purchase: Serial Number: Dealer: Address: Phone Number: Sales Representative: OVERVIEW The machine is an electric powered carpet extractor intended for commercial use. This appliance applies a cleaning solution to the carpet and then vacuums the soiled water back into the recovery tank. MODEL: PUZZI 50/35 1.006-672.0 Warranty Registration Thank you for purchasing a Kärcher North America product.
  • Page 3: Table Of Contents

    Table of Contents Machine Data Log / Overview....2 PARTS Control Panel ......20 Table of Contents .
  • Page 4: How To Use This Manual

    How to Use This Manual This manual contains the following sections: The SAFETY section contains important information regarding hazardous or unsafe practices of the • How to Use This Manual machine. Levels of hazards are identified that could • Safety result in product damage, personal injury, or severe •...
  • Page 5: Safety

    Safety IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. This machine is for commercial use. To reduce the risk of fire, electric shock, or injury: Connect to a .
  • Page 6: Hazard Intensity Level

    Safety The following symbols are used throughout this guide as indicated in their descriptions: HAZARD INTENSITY LEVEL There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
  • Page 7: Safety Labels

    Safety Safety Labels NOTE: These drawings indicate the location of safety labels on the machine. If at any time the labels become illegible, promptly replace them. Label Warning 86333370 Label Circuit Interrupter 86333380 86343340 PUZZI 50/35...
  • Page 8: Grounding Instructions

    Safety Grounding Instructions THIS PRODUCT IS FOR COMMERCIAL USE ONLY. ELECTRICAL: In the USA this machine operates on a standard 15 amp 115V, 60 hz, A.C. power circuit. The amp, hertz, and voltage are listed on the data label found on each machine.
  • Page 9: Operations

    Operations Technical Specifications ITEM MEASURE Electrical 115 Volt, 60 hz, 15A Solution Pump 500 psi Solution Capacity 13 Gal Recovery Capacity 11 Gal Height 43 inches Length 30 inches Width 22 inches Vacuum Motor Single 3 Stage Weight- Empty 117 lbs Weight-Full Solution 222 lbs Power cord...
  • Page 10: Controls

    Operations Controls 1. Vacuum Accessory Tool Hook-up 2. Solution Pump Switch 3. Vacuum Switch 4. Breaker for Vacuum 5. Solution Accessory Tool Hook-up 6. Pressure Gauge 7. Adjustable Pressure Relief Valve 86343340 PUZZI 50/35...
  • Page 11: Machine Operation

    Operations Machine Operation Only use chemicals approved for use with this machine. Use of non-compatible chemicals may cause machine damage and will not be covered under the Care must be exercised in the use of all chemicals. warranty. Carefully read ingredients on manufacturer’s Chemicals are poisonous and can pose a health risk.
  • Page 12: Pre-Run Inspection

    Operations Pre-Run Inspection 4. Connect priming hose to solution fitting on machine. Turn on pump and run for 30 seconds or 1. Check all fittings and connectors for proper until a steady flow of water is coming out of priming assembly.
  • Page 13: Cleaning

    Operations Cleaning Always use defoamer if foaming occurs. Foam will suspend large particles that may damage vacuum as well as allow liquid into the vacuum motor without activating the float shutoff. 1. Prior to cleaning, make certain that the nozzle is functioning properly.
  • Page 14: Maintenance

    Maintenance Periodic Maintenance Daily/Regular Maintenance Twice a month, flush a white vinegar solution (one quart vinegar to two gallons of water) or anti-browning solution (mixed as directed) through the machine. This Before making any repairs or adjustments to the will prevent build-up of alkaline residue in the system. machine, disconnect the power cord from the elec- trical source.
  • Page 15: Vacuum Motor Replacement

    Maintenance Vacuum Motor Carbon Brushes Replacement Only qualified maintenance personnel are to perform the following repairs. End Cap Vacuum Motor Replacement Carbon 1. Turn off all switches and unplug machine. Brushes 2. Remove hardware under front of machine to access component compartment. WARNING: The green ground wire 3.
  • Page 16: Solution Pump Replacement

    Maintenance Solution Pump Replacement Only qualified maintenance personnel are to perform the following repairs. Seal and O-Ring Kit 8.756-049.0 8.756-049.0 8.756-049.0 86343340 PUZZI 50/35...
  • Page 17: Pressure Regulator

    Maintenance Only qualified maintenance personnel are to perform the following repairs. Pressure Regulator For best results with the pressure regulator, we recommend that you clean and lubricate the piston and u-cup with Superlube lubricant monthly or when pressure drop seems excessive. 1.
  • Page 18: Troubleshooting

    Maintenance Troubleshooting PROBLEM CAUSE SOLUTION Unit not plugged in Connect unit to 3 prong grounded outlet. Loss of Power Dead electrical circuit Check building circuit breaker or fuse box. Faulty power cord Replace Receptacle not grounded Contact an electrician to check building's wiring Electrical shock Have a trained service technician check Internal wiring problem...
  • Page 19: Parts

    PARTS 86343340 PUZZI 50/35...
  • Page 20: Control Panel

    Control Panel 86343340 PUZZI 50/35...
  • Page 21 Control Panel SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86180350 12-800035 ELL, 1/4FP X 1/4T BR 86202230 390-09A WASHER 9/16 S/S USS THICK 86002370 20035 CLAMP, 7/16 DIA NYLON UL 86002450 22015 COUPLER, 1/4 QD 86197390 31021 ELBOW, 1/4NPT 45D STREET 86005700 57104 NUT, 10-32 HEX W/STAR...
  • Page 22: Electrical

    Electrical 86343340 PUZZI 50/35...
  • Page 23 Electrical SERIAL NO. REF PART NO. PRV NO. DESCRIPTION NOTES FROM 86201510 390-26 SPACER NYLON 1/4ID X 1/2 OD 86005670 57040 NUT, 1/2 NPT CONDUIT 86005700 57104 NUT, 10-32 W/STAR WASHER PLTD 86273830 70020 SCR, 1/4-20 X 1/2 HHCS SS 86006850 70393 SET SCR, 1/4-20 X 1.25L...
  • Page 24: Frame

    Frame 86343340 PUZZI 50/35...
  • Page 25 Frame SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM NON-ETL 86199430 040-03 CASTER, SWIVEL 4" 250# CPCTY MODELS 86327030 CASTER, SWIVEL 4" LOCKING ETL MODEL 86001660 41236 HUBCAP, 5/8 SHAFT 86005810 57245 NUT, 1/4-20 HEX NYLOCK SS 86276080 70595 SCR, 10-32 X 1”...
  • Page 26: Labels

    Labels 86343340 PUZZI 50/35...
  • Page 27 Labels SERIAL NO. REF PART NO. PRV NO. DESCRIPTION NOTES FROM 86342640 LABEL, RECOVERY, AKW , RH 86343010 LABEL, RECOVERY, AKW , LH 86342980 LABEL, CONSOLE, KARCHER 87581730 LABEL QR CODE PUZZI 50/35 86343340 PUZZI 50/35...
  • Page 28: Pump

    Pump TO PRESSURE GAUGE TO SOLUTION TANK FROM SOLUTION TANK 86343340 PUZZI 50/35...
  • Page 29 Pump SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86190520 11-800224 PLUG, 3/8 SOCHD BR 86200260 151-50C HOSE,PULSE 47.0 1/4MPT X 1/4MPT 89247270 PUMP ASSY, 500PSI 120V CA 86197270 04008 ADPTR, 1/4MPT X 1/4FPT BR 86374840 BUSHING, 3/8 MPT X 1/4 FPT 86233150 20042 CLAMP, 3/8 WORM GEAR...
  • Page 30: Recovery

    Recovery 86343340 PUZZI 50/35...
  • Page 31 Recovery SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 86161460 15-808123 DUMP VALVE, 1 1/2 86334490 COVER PLATE COMPLETE 86197820 31002 ELBOW, 1.5 FPT X FS PVC 86004000 35255 GASKET, TANK LID 86197040 57264 NUT, 5/16-18 HEX ACORN PLTD 86273740 70010 SCR, 1/4-20 X 1.50 HHCS SS...
  • Page 32: Solution

    Solution 86343340 PUZZI 50/35...
  • Page 33 Solution SERIAL NO. REF PART NO. PRV NO. DESCRIPTION NOTES FROM 86173640 11-800437 ADPT,3/8 BLKHD COMPLETE 86233150 20042 CLAMP, 3/8 WORM GEAR 86238460 36259 HOOK, STRAP 86317550 HOSEBARB, 3/8 MPT X 1/2 90 BR 86001550 40043 HOSEBARB, 3/8 MPT X 3/8 HOSE 90° 86273740 70010 SCR, 1/4-20 X 1.50 HHCS SS...
  • Page 34: Vacuum

    Vacuum 86343340 PUZZI 50/35...
  • Page 35 Vacuum SERIAL NO. REF PART NO. PRV NO. QTY DESCRIPTION NOTES FROM 86277840 00-000167 SCR, 1/4-20 X 6.5 HHCS PLT 86005810 57245 NUT, 1/4-20 HEX NYLOCK SS 86274090 70092 SCR, 10-32 X 1.5 PPHMS 86002390 20063 CLAMP, 1.75 WORM GEAR X .312 86010630 87013 WASHER, 1/4 X 5/8 FLAT SS...
  • Page 36: Wiring

    Wiring -PANEL -VACUUM -PUMP SWITCH SWITCH -POWER CORD 13AMP -TERMINAL GRY/3 BLOCK BLUE/1 -FUSE 4 AMP BLK-WHT GRY-WHT WHT/7 -RECTIFIER -VACUUM -PUMP MOTOR MOTOR BLK FROM PUMP 86343340 PUZZI 50/35...
  • Page 37 Wiring SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 98407900 HARNESS KIT, SINGLE CORD 86343340 PUZZI 50/35...
  • Page 38: Suggested Spare Parts

    Suggested Spare Parts SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES FROM 89247270 PUMP ASSY, 500PSI 120V CA 86135320 140687 BRUSH SET, 120V VAC 86199430 040-03 CASTER SWIVEL 4” 250# CAPACITY 86002620 260-64A ACCESS COVER CLEAR 6” W/RIM 86319110 FUSE, 1/4" X 1-1/4", 4A 86318770 VAC ASSY 3-STG, 120V 86007140...
  • Page 39: Serial Numbers

    Serial Numbers REF. MODEL: SERIAL # 1.006-672.0 - 10066720000026 86343340 PUZZI 50/35...
  • Page 40 THANK YOU! DANKE! MERCI! GRACIAS! Registrieren Sie Ihr Produkt und profitieren Sie von vielen Vorteilen. Register your product and benefit from many advantages. Enregistrez votre produit et bénéficier de nombreux avantages. Registre su producto y aproveche de muchas ventajas. www.kaercher.com/welcome Bewerten Sie Ihr Produkt und sagen Sie uns ihre Meinung.
