RM9230
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For latest product information, please visit Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
© Copyright 2021 Acnodes Corp.
9U Rackmount Computer

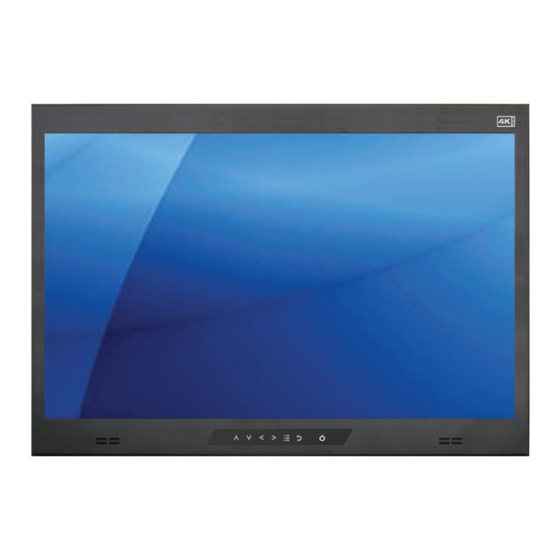

23.8" 3840 x 2160 4K LCD Monitor
Display Port 1.2 + HDMI 1.4 + HDMI 2.0
Tel: 909.597.7588
Fax: 909.597.1939
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acnodes RM9230
Summary of Contents for Acnodes RM9230
- Page 1 Display Port 1.2 + HDMI 1.4 + HDMI 2.0 User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
- Page 2 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents RM9230 < Part. 1 > Package Content Structure Diagram & Dimension Installation < Part. 2 > Specifi cations / OSD Product Specifi cations Picture In Picture ( PIP ) / Picture By Picture ( PBP ) P.11 < Part. 3 >... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part. 1 > Rm9230
< Part 1 > < 1.1 > Package Content RM9230 unit X 1 - 6ft DP cable X 1 - Power adapter X 1 - Power cord X 1 - Fastener screw for rear bracket x 2 < 1.2 > Structure Diagram... - Page 6 (W x D x H) (W x D x H) Weight 551 x 65 x 385 mm 583 x 124 x 529 mm 8.8 kg 11.2 kg RM9230 21.7 x 2.6 x 15.2 inch 23 x 4.9 x 20.8 inch 19.4 lb 24.6 lb...
-
Page 7: Installation
< 1.3 > VESA mount Installation M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided... - Page 8 Mount the rear bracket with M6 screw set. ■ 8 x M6 screw set are required. M6 screw sets are not provided. Step ■ Insert the RM9230 display panel into the rear bracket. Step ■ Fix the unit to the bracket with the top latch. Step...
-
Page 9: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations Native Resolution 3840 x 2160@60Hz Panel Panel Size ( diagonal ) 23.8-inch TFT color LCD Brightness ( cd/m² ) Contrast Ratio ( typ. ) 1000:1 Colors 1.07 Billion, 10-bit Viewing Angle ( L/R/U/D ) 89/89/89/89 Response Time ( ms ) Dot pitch ( mm ) - Page 10 Environmental Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Conditions Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical Product ( W x D x H ) 480 x 48 x 266 mm Specifi...
- Page 11 < 2.2 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu...
- Page 12 < 2.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
- Page 13 < 2.2 > On-screen Display Operation ( OSD ) Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...
-
Page 14: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 2.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 2.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position... - Page 15 < 2.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080 955 x 716...
-
Page 16: Part. 3 > Option
< Part 3 > < < 3.1 > Options : 3G / HD / SD-SDI input Acnodes' SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed with displays, input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty. - Page 17 ( Multi-display Control ) More control is always good. Especially when it is necessary and easy. Acnodes provides MCS solution to control the OSD of various LCD display up to 64 units. The RS-232C is used for the communication between the PC and the first display via a 15 feet serial cable while the CAN bus is used...
- Page 18 < 3.4 > Options : Touchscreen & driver 23" USB Touchscreen Specifi cation Model e-Resistive TPC-10 Multi-touch Technology Projected Capacitive 5-Wire Resistive Touch Point 10 point touch standard Single ( special requirement available ) Input Type Finger or Capacitive Stylus Finger or Stylus Resolution 4096 x 4096...
- Page 19 < 3.4 > Options : Touchscreen & Driver TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB / TCB Driver Please follow the below steps to setup the touch screen:- Step 1.
- Page 20 < 3.5 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
