All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2016 Acnodes C orp.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Acnodes RMW7175
Summary of Contents for Acnodes RMW7175

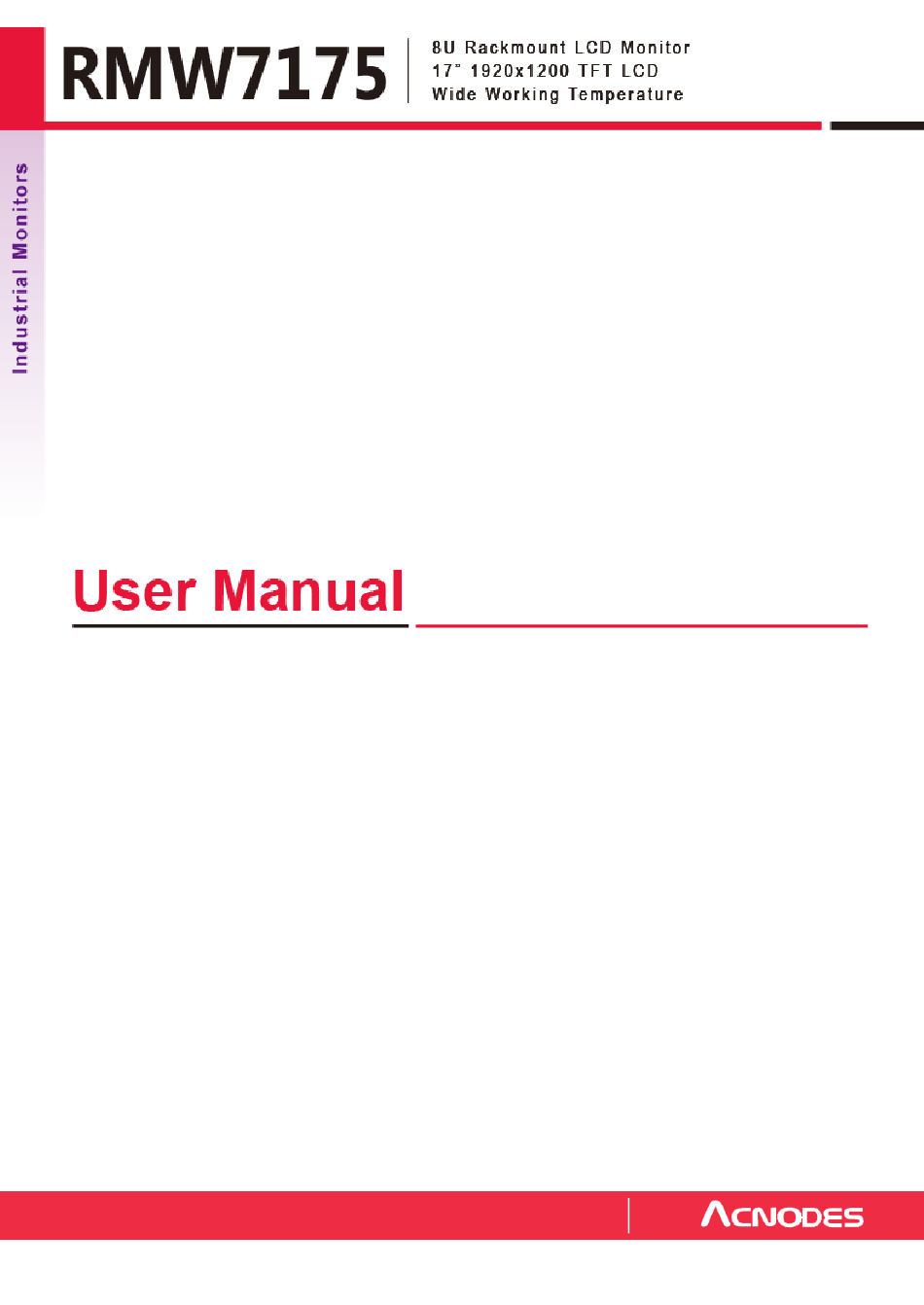

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 1. Control Button LCD OSD Function: On/Off On/Off the PC Space 1. Adjust the display to the best position. 2. Exit the options Enter Menu/Select function: 1. Call the Menu 2. Confirm the selection UP▲ Press the button to adjust the increasing value of selected OSD control option.
- Page 3 3. Main Menu Press「Enter」and the screen will appear the following OSD icons: OSD Menu Adjustments: 」,「 」 to increase or decrease the light bar for moving to the right icon you to Press「 ▲ ▼ adjust. Press 「Enter」again to confirm in the selected item. Then, the selected bar will become yellow at bottom under the item.
- Page 4 Backlight： The backlight has default set in the brightest. Normally the function has no effect. BRIGHTNESS： Adjust the brightness of the screen. CONTRAST： Adjust the contrast level of brightness and darkness of the screen. SHARPNESS: Adjust the sharpness of display Display Image H./V.
- Page 5 COLOR Temp 9300K： Asian Area. 7500K： Asian Area. 6500K： Europe and North American Area. SRGB： Europe and North American Area. USER COLOR： User’s setting. Red adjustment. User’s setting Remark 1 RED： Green adjustment. User’s setting Remark1 GREEN： Blue adjustment. User’s setting Remark1 BLUE：...
- Page 6 Others Reset: Recall settings to the factory default setting Menu Time: OSD Menu showing period during no any instructions given. OSD H. Position：Present the position of the OSD horizontal position OSD V. Position： Present the position of the OSD vertical position Language: English / French / German / Japanese/ 繁體中文...
- Page 7 Information Display the video information presenting to the current states.
