RMW7194
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For latest product information, please visit Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
© Copyright 2019 Acnodes Corp.

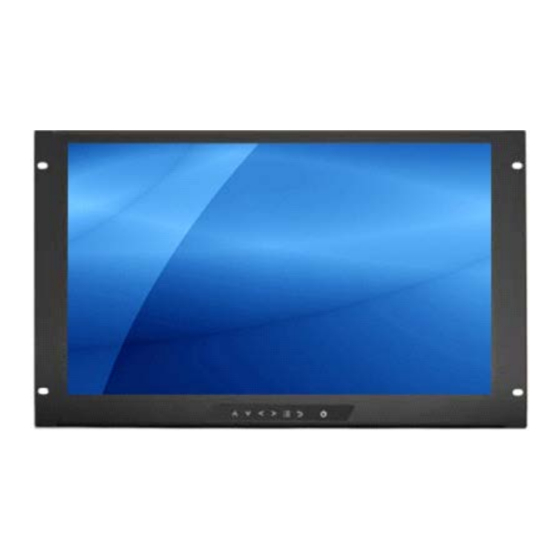

7U Rackmount LCD Monitor
19" 1440 x 900 Widescreen LCD
1000-nit High Brightness Display
Tel: 909.597.7588
Fax: 909.597.1939
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Acnodes RMW7194
Summary of Contents for Acnodes RMW7194
- Page 1 1000-nit High Brightness Display User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
- Page 2 Legal Information First English printing, July 2019 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents RMW7194 < Part. 1 > Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifi cations / OSD / Remote Controller Product Specifi cations P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 <... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part. 1 > Rmw7194
< Part 1 > < 1.1 > Package Content RMW7194 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 < 1.2 > Structure Diagram Front view Power adapter Rear view... - Page 6 (W x D x H) Weight Weight 480 x 58 x 310 mm 529 x 124 x 495 mm 5.8 kg 7.9 kg RMW7194 18.9 x 2.3 x 12.2 inch 20.8 x 4.9 x 19.5 inch 12.8 lb 17.4 lb...
-
Page 7: Installation
< 1.3 > Installation Step ■ Mount the display panel with M6 screw set. ■ M6 screw x 4 pcs required ( Left & right side ). M6 screw sets are not provided. Step ■ Fix the LCD into the rack. -
Page 8: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations Panel Size ( diagonal ) 19-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1440 x 900 Brightness ( typ. ) 1000 Contrast Ratio ( typ. ) 1000:1 Color 16.7 M... - Page 9 Operating Temperature 0 to 55°C degree Environmental Conditions Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Product ( W x D x H ) 480 x 58 x 310 mm Physical Specifi...
-
Page 10: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 11 < 2.2 > On-screen Display Operation ( OSD ) OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc:...
- Page 12 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Acnodes' SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed with displays, input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
-
Page 13: Part. 3 > Options
( Multi-display Control ) More control is always good. Especially when it is necessary and easy. Acnodes provides MCS solution to control the OSD of various LCD display up to 64 units. The RS-232C is used for the communication between the PC and the first display via a 15 feet serial cable while the CAN bus is used... - Page 14 < 3.3 > Options : AV2.2D Upgrade ( DVI-D TMDS single link ) - DVI-D ( S-Video + Composite, BNC ) - AV ( Built-in Dual Stereo Speakers, 2W x 2 ) - Audio ( 3.5mm audio jacks for audio in & out ) Audio DVI-D Power...
-
Page 15: Av3.0 Upgrade
< 3.5 > Options : AV3.0 Upgrade ( HDMI 1.3, CEA-861-D ) - HDMI ( DVI-D TMDS single link ) - DVI-D ( S-Video + Composite, BNC ) - AV ( Built-in Dual Stereo Speakers, 2W x 2 ) - Audio ( 3.5mm audio jacks for audio in &... - Page 16 < 3.6 > Options : Touchscreen & Driver 19" USB Touchscreen Specifi cation e-Resistive e-Capacitive Model 5-Wire Resistive Capacitive Technology Single Single Touch Point Stylus or Finger Finger Method ≤ 50g / Stylus=R0.8 ≤ 50g Activation Force 35 million touches 300 million touches Durability 15 ms...
- Page 17 < 3.7 > Options : DC Power Model 125V Input rating Input voltage: 24-Volt 48-Volt 110-Volt Input range: 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 35 mA - Full load 4880 mA 2442 mA 749 mA...
-
Page 18: Mil-Type Or Lockable Connector
< 3.8 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MS3470W8-33P MIL - DTL - 26482 MIL - type DC Power ( Male ) Connector MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl...
