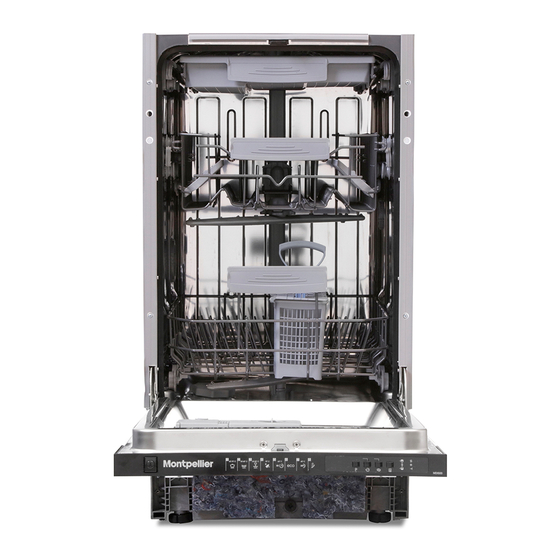

Fully Integrated Dishwasher
MDI500 - Slimline - 45cm
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDI500 and is the answer not in the manual?

Questions and answers

Related Manuals for montpellier MDI500

Summary of Contents for montpellier MDI500

  • Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Fully Integrated Dishwasher MDI500 - Slimline - 45cm Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
  • Page 2 Welcome Thank you for choosing this Montpellier Integrated Dishwasher. Our Integrated Dishwasher has been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Integrated Dishwasher to ensure you get the most from your purchase.

  • Page 3: Table Of Contents

    CONTENTS Technical specifications ..................4  Safety information and Recommendations ............5 Recycling ....................... 5  Safety information ....................5  Recommendations ..................8  Items not suitable for dishwashing ..............9  Installing the machine ....................9 Positioning the machine ..................9 ...
  • Page 4 Loading your dishwasher ................19 Top basket ....................19  Alternative basket loads ..................22  Programme descriptions ..................24 Programme items ....................24  Getting familiar with your machine ..............25 Switching on the machine and selecting a programme ........27 Switching on the machine .................

  • Page 6: Technical Specifications

    Technical specifications Capacity 10 place settings Height 820 mm - 870 mm Width 450 mm Depth 550 mm Net Weight 32 kg Electricity input 220-240 V, 50 Hz Total Power 1900 W Heating Power 1800 W Pump Power 100 W Drain Pump Power 30 W Water supply pressure...

  • Page 7: Safety Information And Recommendations

    SAFETY INFORMATIONAND RECOMMENDATIONS Recycling • Certain components and the packaging of your machine have been produced from recyclable materials. • Plastic parts are marked with international abbreviations: (>PE< , >PS< , >POM<, >PP<, ) • Cardboard parts have been produced from recycled paper and they should be disposed of into waste paper collection containers for recycling.
  • Page 8 • Check whether the indoor electrical fuse system is connected according to the regulations. • All electrical connections must match the values indicated on the rating plate. • Pay special attention and be sure that the machine does not stand on the electricity supply cable. •...
  • Page 9 mental capabilities lack experience knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.Cleaning and user maintenance shall not be made by children without supervision. •...

  • Page 10: Recommendations

    For your children’s safety • After removing the machine’s packaging, make sure that the packaging material is out of reach of children. • Do not allow children to play with or start the machine. • Keep your children away from detergents and rinse aids.

  • Page 11: Items Not Suitable For Dishwashing

    Items not suitable for dishwashing: • Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials; • Forks, spoons and knives with wooden or bone, or ivory or nacre-coated handles; glued items,items soiled with abrasive, acidic or base chemicals. • Plastic items that are not heat-resistant, copper or tin- coated containers.

  • Page 12: Water Connections

    Position the machine close to a water tap or drain. need site your machine, taking into consideration that its connections will not be altered once they are made. Do not grip the machine by its door or panel in order to move it.

  • Page 13: Water Inlet Hose

    Water inlet hose Do not use the water inlet hose of your old machine,if any. Use the new water inlet hose supplied with your machine instead. If you are going to connect a new or long - unused water inlet hose to your machine ,run water through it for a while before making the connection.

  • Page 14: Water Outlet Hose

    Water outlet hose The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot. Using a special bent pipe available), water can be drained directly into the sink via hooking the bent pipe over the edge of the sink.

  • Page 15: Electrical Connection

    Electrical connection The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electrician carry out an earthing installation. In case of usage without earthing installed, our company will not be responsible for any loss of usage that might occur.

  • Page 16: Prior To Using The Machine

    Testing strip The washing effectiveness of your machine depends on the softness of the tap water. For this reason, your machine is equipped with a system that reduces the hardness in mains water supply. The washing effectiveness will increase when the system is correctly set. To find out the water hardness level of water in your area, contact your local water board or determine water hardness level by using the test strip(if available).
  • Page 18 After resetting your machine, press the program selection button and keep it pressed down.3 Meanwhile, energise the machine by pressing the Power On/Off button. Keep the program selection button pressed until “SL” disappears from the display. Release the program selection button after “SL” disappears from the display. Your machine displays the latest entered water hardness setting.

  • Page 19: Detergent Usage

    Detergent usage Use a detergent specifically designed for use in domestic dishwashers. You can find powder,gel,and tablet detergents in the market that have been designed for household dishwashers. Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry places out of reach of your children.

  • Page 20: Filling With Rinse Aid And Making The Setting

    They produce good results for certain types of usage only. If you are using this type of  detergents, you need to contact the manufacturers and find out about the suitable conditions of use. When the conditions of use of such products and the machine settings are appropriate, ...

  • Page 21: Loading Your Dishwasher

    Warning: Use only those rinse aid materials which are allowed for use in the machine. As rinse aid residues left as a result of overflowing will create extremely high amounts of foam and thus reduce the washing performance, remove the excess amount of rinse aid by wiping it with a rag. LOADING YOUR DISHWASHER If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance.
  • Page 22 Top basket height adjustment Top basket of your machine is in upper position. When it is in this position, you can place big items such as pans, etc. on lower basket. When you take top basket to lower position, you can place and wash big sized plates on the top basket.
  • Page 23 Upper Cutlery Basket The upper cutlery basket is designed for you to place forks, spoons and knives, long dippers and small items. Because it can easily be taken out of the machine, it allows your dishes to be taken out of the machine along with the basket after washing.

  • Page 24: Top Basket

    Alternative basket loads Lower Basket Top basket...
  • Page 25 Faulty loads Important Note for Test Laboratories For detailed information on performance tests, please contact following address: "dishwasher@standardtest.info” . In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door.

  • Page 29: Switching On The Machine And Selecting A Programme

    SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Switching on the machine Machine is energized when the On/Off button is pressed , t wo dashe s appear in t he progra m displa y and the end of program indicator turns on. When you select a program with the program selection button,the program you select ( P1,P2,etc )appears on the...

  • Page 30: Changing A Programme With Resetting

    Changing a programme with resetting If you would like to cancel a program while a washing program is resumed Open the door of your machine. The last selected program will appear on the screen. Discharge process starts after closing the door of the machine.The machine Keep the program selection button pressed discharges the water in it for about 30 for 3 seconds.

  • Page 31: Maintenance And Cleaning

    MAINTENANCE AND CLEANING Cleaning the machine in regular intervals prolongs the machine’s service life. Oil and lime may accumulate in the machine’s washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, select a programme that runs at high temperature, and start the machine.

  • Page 32: Spray Arms

    Spray arms Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water. You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left.
  • Page 34 If the programme won’t start Check if the plug is connected.  Check your indoor fuses.  Be sure that the water inlet tap is turned on.  Be sure that you have closed the machine door.  Be sure that you switched off the machine by pressing the Power On / Off button. ...

  • Page 35: Practical And Useful Information

    If there are rust stains on the dishes Stainless-steel quality of the dishes washed is insufficient.  High rate of salt in the wash water.  Salt compartment cap not closed well.  Too much salt spilt into the sides and into the machine while filling it with salt. ...
  • Page 36 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
  • Page 37 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
