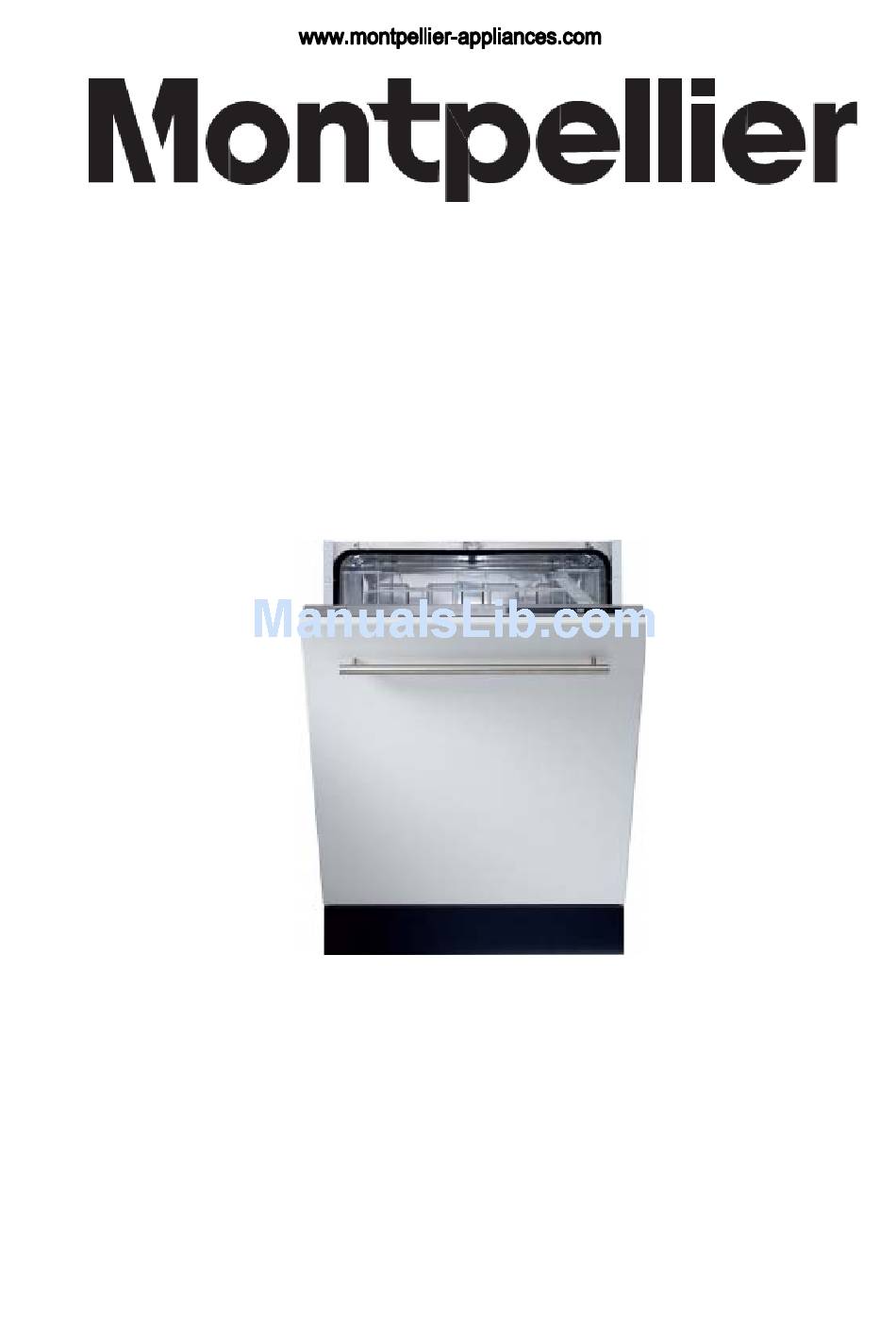

Installation and Operating Instructions
Model: MDI600
12 Place Fully Integrated Dishwasher
(Image shown for illustrative purposes only)
(The decorative door shown is not part of the product)
Please read these instructions carefully before attempting to install or use this appliance.
It is
advisable to keep these instructions in a safe place for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDI600 and is the answer not in the manual?

Questions and answers

Related Manuals for montpellier MDI600

Summary of Contents for montpellier MDI600

  • Page 1       Installation and Operating Instructions Model: MDI600 12 Place Fully Integrated Dishwasher (Image shown for illustrative purposes only)  (The decorative door shown is not part of the product)  Please read these instructions carefully before attempting to install or use this appliance. It is advisable to keep these instructions in a safe place for future reference.
  • Page 2     Introduction Thank you for choosing this Montpellier appliance. It has been designed to give years of trouble-free use provided it is installed and maintained correctly. Please read these instructions carefully before installing or using your appliance. It is advisable to keep your purchase and installation receipts with these instructions in a safe place for future reference.
  • Page 3 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.

  • Page 4: Description Of The Appliance

        Description of the Appliance  ...
  • Page 5     CONTENTS: Section 1. Installation Section 2. Safety Advice Section 3. Operating the Appliance Section 4. Maintenance...
  • Page 6   Section 1. Installation    Position the appliance in a dry, well ventilated room with a solid level floor. The room temperature must not fall below +5° or rise above +35°.  This appliance is fitted with adjustable feet so that you can ensure it is sitting level.

  • Page 7: Water Outlet Hose

        Water Outlet Hose The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot using a special bent pipe (if available). The hose connection should be at a minimum of 50cm and at a maximum of 110 cm from the floor.
  • Page 8   Section 2. Safety Advice        This appliance is manufactured and intended for DOMESTIC use only. Any guarantee offered with the appliance is not valid for any installation in a commercial environment.  This appliance MUST BE EARTHED! ...
  • Page 9     Section 3. Operating the Appliance 3.1. Before Operating the Appliance 3.1.1. Adding Salt  The sole use of 3-in-1 tablets is not recommended as failure to add salt to the salt container will leave your dishwasher exposed to limescale damage which is not covered by the manufacturers guarantee.
  • Page 10        Remove the Rinse Aid Filler Cap (1).  Add Rinse Aid until the rinse aid level indicator becomes dark (2).  Replace the Filler Cap (3).  If the rinse aid level is sufficient the indicator light will be dark on the control panel (2B).
  • Page 11     3.1.4. Combined Detergent – Recommended Usage If you are using a combined detergent, add a rinse aid agent to your machine and switch the rinse agent setting to its lowest position (1) and activate the tablet detergent button in order to obtain better results. Depending on the water hardness you may need to fill the salt container with salt.

  • Page 12: The Control Panel

                        3.2. The Control Panel   1. Power On/Off Button    2. Programme Selection Button – Allows you to select a suitable programme.    3. Delay Timer Button – You can delay the start of a programme by 3, 6 or 9 hours by  pressing this button. The delay will increase by 3 hours each time the button is pressed,  once you have the required delay press the programme selection button. If you wish to  change or cancel the delay, you can adjust it with the delay timer button as it will be  activated/deactivated according to the last value entered.    4. Salt Warning Indicator – When your machine needs salt the salt warning indicator will  come on. When this happens, add more salt.    Rinse Aid Warning Indicator – When there is insufficient rinse aid in your machine the  rinse aid warning indicator will come on. When this happens, fill the rinse aid chamber.    End of Programme Indicator – When a programme has ended the end of programme  indicator will come on. Additionally your machine will sound a buzzer 5 times.         ...

  • Page 13: Loading The Baskets

      3.3. Loading the Baskets 3.3.1. Upper Basket There are folding dish racks on the upper basket of your machine. You can use these dish racks in an open or closed position depending on whether you want to place cups, long glasses, or cutlery on them Ensure that items are not blocking the rotation of the top spray arm.
  • Page 14       3.3.2. Alternate Basket Loads Lower Basket Upper Basket Incorrectly Distributed Loads  ...
  • Page 15     3.4. Programme Selection Table         15 15...
  • Page 16   3.5. Selecting a Programme...
  • Page 17      ...
  • Page 18           Section 4. Maintenance 4.1. Cleaning the Filter The filter helps prevent large pieces of food or other items entering the pump and causing damage. It is important that you examine and clean the filter system on a regular basis. Blocked filters are not covered under the Guarantee! The filter assembly is located inside the appliance just...
  • Page 19         4.3. Cleaning the Spray Arms Small particles of food will over time get into the spray arms and cause blockages. Periodically remove the spray arms (as shown below) and wash them in warm soapy water. Blocked spray arms are not covered under the Guarantee! To remove the lower spray arm pull it upwards, so that the upper...

  • Page 20: Error Codes

      4.5. Error Codes  ...
  • Page 21         4.6. Before Calling Service If you appear to have a problem with your dishwasher, please take a few minutes to check the following ‘trouble shooting’ guide. The problem may be easily solved without the need for a service call. Dishwasher Will Not Start •...
  • Page 22         Knocking Noise From Inside the Cabinet • The spray arm is catching against an item in the basket – reposition the items • Items of crockery are loose in the basket and water pressure is causing them to move –...
  • Page 23     SERVICE HELP-LINE Should your appliance develop a fault, please call the Montpellier Service Helpline on: 01527-888133  ...
  • Page 24       Important Note: This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
