Installation and Operating Instructions
Model: MDI450

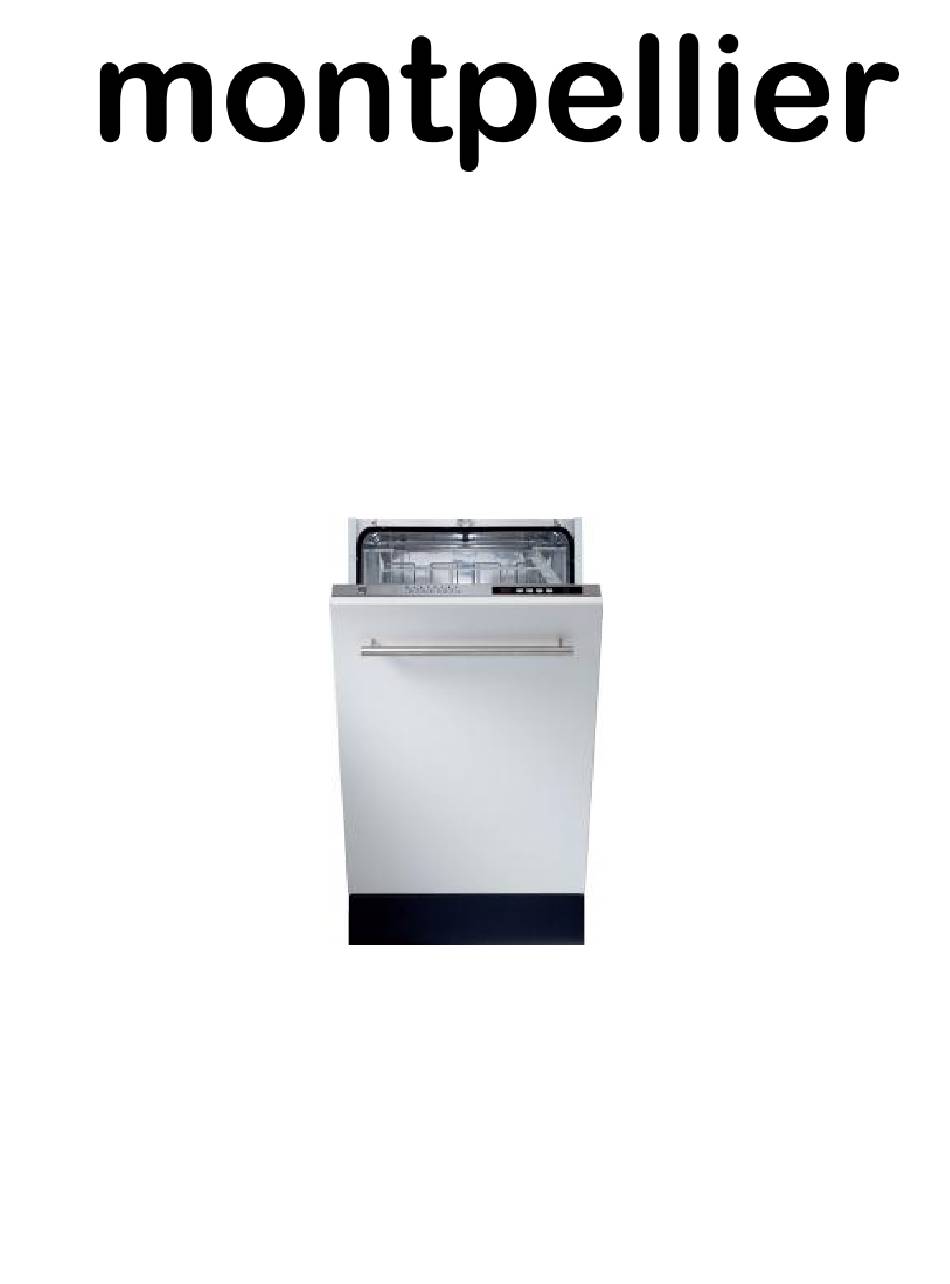

10 Place Fully Integrated Dishwasher
(Image shown for illustrative purposes only)
(The decorative door shown is not part of the product)
Please read these instructions carefully before attempting to install or use this appliance.
It is advisable to keep these instructions in a safe place for future reference.
1
Advertisement
Related Manuals for montpellier MDI450
Summary of Contents for montpellier MDI450
- Page 1 Installation and Operating Instructions Model: MDI450 10 Place Fully Integrated Dishwasher (Image shown for illustrative purposes only) (The decorative door shown is not part of the product) Please read these instructions carefully before attempting to install or use this appliance.
- Page 2 Introduction montpellier Thank you for choosing this appliance. It has been designed to give years of trouble-free use provided it is installed and maintained correctly. Please read these instructions carefully before installing or using your appliance. It is advisable to keep your purchase and installation receipts with these instructions in a safe place for future reference.
- Page 3 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 4 Description of the Appliance...
- Page 5 CONTENTS: Section 1. Installation Section 2. Safety Advice Section 3. Operating the Appliance Section 4. Maintenance...
- Page 6 Section 1. Installation · Position the appliance in a dry, well ventilated room with a solid level floor. The room temperature must not fall below +5° or rise above +35°. · This appliance is fitted with adjustable feet so that you can ensure it is sitting level.
- Page 7 Water Outlet Hose The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot using a special bent pipe (if available). The hose connection should be at a minimum of 50cm and at a maximum of 110 cm from the floor.
- Page 8 Section 2. Safety Advice · This appliance is manufactured and intended for DOMESTIC use only. Any guarantee offered with the appliance is not valid for any installation in a commercial environment. · This appliance MUST BE EARTHED! · Never try and disconnect the power by pulling the supply cable – hold the plug firmly and pull it out of the socket.
- Page 9 Section 3. Operating the Appliance 3.1. Before Operating the Appliance 3.1.1. Adding Salt · The sole use of 3-in-1 tablets is not recommended as failure to add salt to the salt container will leave your dishwasher exposed to limescale damage which is not covered by the manufacturers guarantee.
- Page 10 · Remove the Rinse Aid Filler Cap (1). · Add Rinse Aid until the rinse aid level indicator becomes dark (2). · Replace the Filler Cap (3). · If the rinse aid level is sufficient the indicator light will be dark on the control panel (2B).
- Page 11 3.1.4. Combined Detergent – Recommended Usage If you are using a combined detergent, add a rinse aid agent to your machine and switch the rinse agent setting to its lowest position (1) and activate the tablet detergent button in order to obtain better results. Depending on the water hardness you may need to fill the salt container with salt.
- Page 12 3.2. The Control Panel 1. Power On/Off Button 2. Programme Display – Indicates the selected programme number. 3. Programme Selection Button – Allows you to select a suitable programme. 4. ½ Load Button – By using this feature, you can reduce the duration of selected programs, and decrease the power and water consumption of your machine.
- Page 13 3.3. Loading the Baskets 3.3.1. Upper Basket There are folding racks on the upper basket of your machine. You can use these racks in an open or closed position depending on whether you want to place cups, long glasses, or cutlery on them Ensure that items are not blocking the rotation of the top spray arm.
- Page 14 3.3.2. Alternate Basket Loads Lower Basket Upper Basket Incorrectly Distributed Loads...
- Page 15 3.4. Programme Selection Table 15 15...
- Page 16 3.5. Selecting a Programme...
- Page 18 Section 4. Maintenance 4.1. Cleaning the Filter The filter helps prevent large pieces of food or other items entering the pump and causing damage. It is important that you examine and clean the filter system on a regular basis. Blocked filters are not covered under the Guarantee! The filter assembly is located inside the appliance just...
- Page 19 4.3. Cleaning the Spray Arms Small particles of food will over time get into the spray arms and cause blockages. Periodically remove the spray arms (as shown below) and wash them in warm soapy water. Blocked spray arms are not covered under the Guarantee! To remove the lower spray arm pull it upwards, so that the upper...
- Page 20 4.5. Error Codes Error Code Error Description Control Make sure the water inlet tap is totally open and that there is no Inadequate water supply water leak Close the water inlet tap, remove the water inlet hose from the tap and clean the filter at the connection end of the hose Restart your machine, contact the Repairtech helpline if the error resumes Continuous water input...
- Page 21 4.6. Before Calling Service If you appear to have a problem with your dishwasher, please take a few minutes to check the following ‘trouble shooting’ guide. The problem may be easily solved without the need for a service call. Dishwasher Will Not Start •...
- Page 22 Knocking Noise From Inside the Cabinet • The spray arm is catching against an item in the basket – reposition the items • Items of crockery are loose in the basket and water pressure is causing them to move – reposition the items of crockery The Crockery is not Clean •...
- Page 23 SERVICE HELP-LINE Should your appliance develop a fault, please call the montpellier Service Helpline 01527-888133...
- Page 24 Important Note: This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
