montpellier MDI705 Installation And Operating Instructions Manual

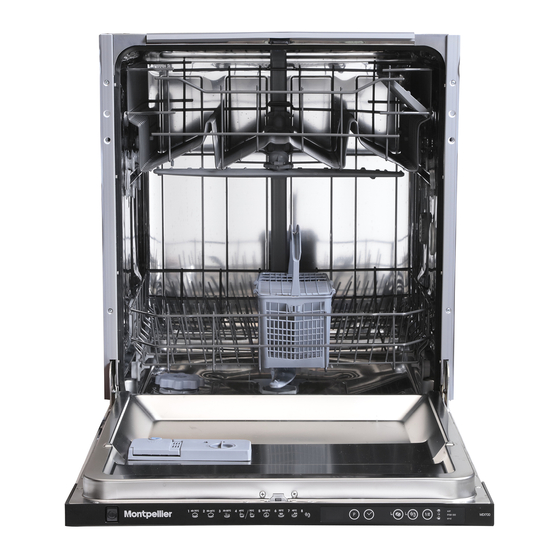

Fully integrated dishwasher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Fully Integrated Dishwasher
MDI705 - 60cm
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDI705 and is the answer not in the manual?

Questions and answers

Related Manuals for montpellier MDI705

Summary of Contents for montpellier MDI705

  • Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Fully Integrated Dishwasher MDI705 - 60cm Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
  • Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
  • Page 3 Thank you for choosing this product. This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

  • Page 4: Table Of Contents

    CONTENTS 1.SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ...................1 1.2. Installation Warnings ....................2 1.3. During Use........................2 2.INSTALLATION ........................ 6 2.1. Machine Positioning ....................6 2.2. Water Connection .......................6 2.3. Water Inlet Hose ......................7 2.4. Drain Hose........................7 2.5. Electrical Connection ....................7 3.TECHNICAL SPECIFICATIONS ..................
  • Page 5 8.CLEANING AND MAINTENANCE ................. 20 8.1. Cleaning the Machine and Filters ................20 8.2. Spray Arms .......................20 8.3. Drain Pump .......................21 9.TROUBLESHOOTING ....................22 10 . Technical Data......................25 11 . Here For You....................... 26...

  • Page 6: Safety Instructions

    1. SAFETY INSTRUCTIONS 1.1. General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

  • Page 7: Installation Warnings

    1.2. Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine. Unplug the machine before installation. Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.
  • Page 8 it for other purposes. Commercial use will void the guarantee. Do not stand, sit or place loads on the open door of the dishwasher. Only use detergents and rinse aids produced specifically for dishwashers. Our company is not responsible for any damage that may occur due to misuse.
  • Page 9 be performed by an authorised service company, otherwise the warranty will be void. Before repair work, the machine should be disconnected from the mains. Do not pull the cable to unplug the machine. Switch off the water tap. Operation at a low voltage will cause a decline in performance levels.
  • Page 10 CE Declaration of Conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste.

  • Page 11: Installation

    2. INSTALLATION The machine should be placed on flat ground otherwise it will be unstable and the door of the machine will not close Complete installation instructions for the properly. appliance and decor door are included Adjustment of the feet must be done once within the fitting kit supplied with the the appliance is in the required position appliance(see image below)

  • Page 12: Water Inlet Hose

    2.3. Water inlet hose IMPORTANT: Items will not wash WARNING: Use the new water inlet properly if the drain hose is longer hose supplied with your machine, do not use than 4m. an old machine’s hose. WARNING: Run water through the new hose before connecting.

  • Page 13: Technical Specifications

    3. TECHNICAL SPECIFICATIONS 3.1. General appearance 1. Upper basket with racks 2. Upper spray arm 3. Lower basket 4. Lower spray arm 5. Filters 6. Rating plate 7. Control panel 8. Detergent and rinse-aid dispenser 9. Cutlery basket 10. Salt dispenser 11.
  • Page 14 RECYCLING • Some machine components and packaging consist of recyclable materials. • Plastics are marked with the international abbreviations:(>PE<, >PP<, etc. ) • The cardboard parts consist of recycled paper. They can be put into waste paper containers for recycling. •...

  • Page 15: Before Using The Appliance

    4. BEFORE USING THE 4.3. Fill the salt APPLIANCE To add softener salt, open the salt compartment cap by turning it counter 4.1. Preparing your dishwasher for first use clockwise. (1) (2) Before first use, fill the compartment with water (3) to the brim of •...

  • Page 16: Test Strip

    4.4. Test Strip Run water Keep the Shake the Wait Set the hardness level of through the strip in the strip. (1min.) your machine. tap (1min.) water (1sec) NOTE: The level is set to 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

  • Page 17: Filling The Detergent

    Using too little detergent can result in poor If rinse aid dosage setting is set too high, cleaning and you can see whitish streaks you can see bluish layers on glass and in hard water. dishes. See the detergent manufacturer’s 4.12.

  • Page 18: Loading Your Dishwasher

    5.1. Basket Adjustments 5. LOADING YOUR DISHWASHER Upper Basket Height adjustment For best results, follow these loading guidelines. Loading the household dishwasher up to If you find the upper spray arm is hitting the capacity indicated by the manufacturer items in the lower basket or you require will contribute to energy and water savings.

  • Page 19: Alternative Basket Loads

    Height Adjustable Rack (peg type) Incorrect Loads Incorrect loading can cause poor washing The height adjustable racks enable and drying performance. Please follow the glasses and cups to be placed on or under manufacturer's recommendations for the the racks. The racks can be adjusted to 2 best cleaning performance results.

  • Page 20: Programme Table

    EN - 15...
  • Page 21 • The program duration may change according to the amount of dishes, the water temperature, the ambient temperature and selected additional functions. • Values given for programmes other than the eco programme are indicative only. • Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation.

  • Page 22: The Control Panel

    7. THE CONTROL PANEL 5. Delay Button Press the Delay button (5) to delay the start time of a programme for 1 hour up to 19 hours. Pressing the button once will delay the start time for 1 hour, and continuing to press will increase the delay time.

  • Page 23: Changing A Programme

    7.1. Changing a Programme 7.3. Switching the Machine Off Follow the steps below to change a programme while in operation. "00" will be shown on the display when a programme is complete. A signal will also sound 5 times. You can then switch your machine off using the Power On/Of f button.
  • Page 24 Save Power Mode To activate or deactivate Save Power Mode, follow the below steps: 1. Open the door and press Half Load (4) and Delay (5) buttons simultaneously for 3 seconds. After 3 seconds, the machine will display last Setting, “IL1” or “IL0”. When Save Power Mode is activated,“IL1”...

  • Page 25: Cleaning And Maintenance

    8. CLEANING AND To remove and clean the filter combination, turn it counter clockwise and remove it by MAINTENANCE lifting it upwards (1).Pull the coarse filter out of the micro filter (2).Then pull and remove Cleaning your dishwasher is important to the metal filter (3).Rinse the filter with lots of maintain the machine’s service life.

  • Page 26: Drain Pump

    8.3 Drain Pump Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements.

  • Page 27: Troubleshooting

    9. TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start.
  • Page 28 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
  • Page 29 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing. Separate the inlet hose from the tap and clean the filter of Water inlet system failure the hose.

  • Page 30: Technical Data

    10. Technical Data Noise Declaration Level (dB(A) 12 PS (2 baskets) 50 Hz: 49 ( C ) re 1 pW) (1059/2010) Energy efficiency class (2019/2017) Energy efficiency class Energy efficiency index 12 PS 55.9 (2019/2017) Cleaning performance index 1.13 Eco programme water Default consumption (lt / cycle) (2017/2022)

  • Page 31: Here For You

    Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
  • Page 32 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
