Summary of Contents for S&T kontron KSwitch D3 UMP

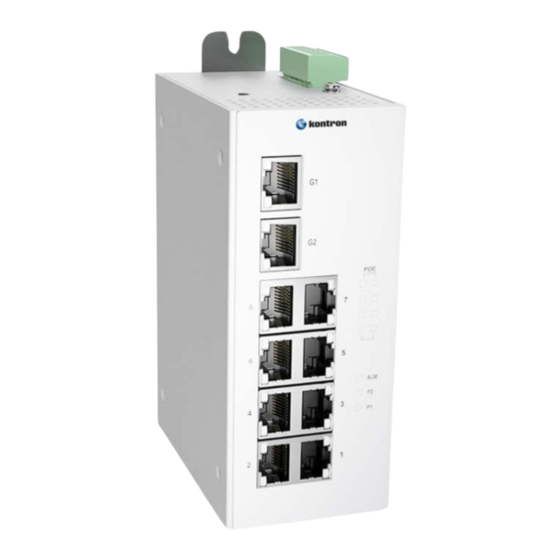

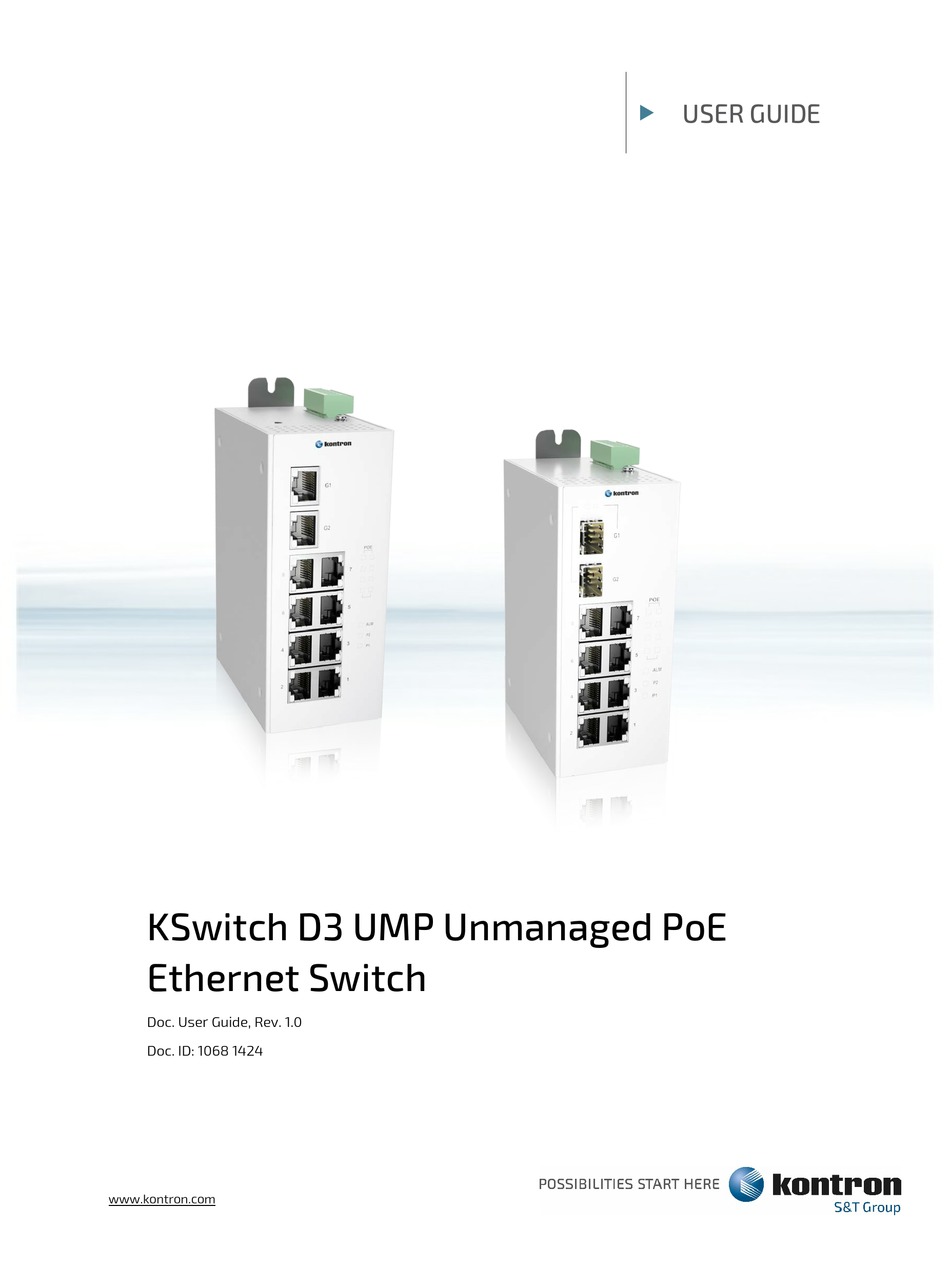

- Page 1 USER GUIDE KSwitch D3 UMP Unmanaged PoE Ethernet Switch Doc. User Guide, Rev. 1.0 Doc. ID: 1068 1424 www.kontron.com...
- Page 2 KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 This page has been intentionally left blank www.kontron.com // 2...
- Page 3 KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 KSWITCH D3 UMP UNMANAGED POE ETHERNET SWITCH – USER GUIDE Disclaimer Kontron would like to point out that the information contained in this user guide may be subject to alteration, particularly as a result of the constant upgrading of Kontron products.
- Page 4 KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 Intended Use THIS DEVICE AND ASSOCIATED SOFTWARE ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE FOR THE OPERATION OF NUCLEAR FACILITIES, THE NAVIGATION, CONTROL OR COMMUNICATION SYSTEMS FOR AIRCRAFT OR OTHER TRANSPORTATION, AIR TRAFFIC CONTROL, LIFE SUPPORT OR LIFE SUSTAINING APPLICATIONS, WEAPONS SYSTEMS, OR ANY OTHER APPLICATION IN A HAZARDOUS ENVIRONMENT, OR REQUIRING FAIL-SAFE PERFORMANCE, OR IN WHICH THE FAILURE OF PRODUCTS COULD LEAD DIRECTLY TO DEATH, PERSONAL INJURY, OR SEVERE PHYSICAL OR...
- Page 5 KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 Revision History Revision Brief Description of Changes Date of Issue Author/ Editor Initial Version 2021-Oct-06 Terms and Conditions Kontron warrants products in accordance with defined regional warranty periods. For more information about warranty compliance and conformity, and the warranty period in your region, visit ://www.kontron.com/terms-and- conditions.
-
Page 6: Symbols
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. -
Page 7: For Your Safety
KSwitch D3 UMP Unmanaged PoE Ethernet Switch – User Guide, Rev. 1.0 For Your Safety Your new Kontron product was developed and tested carefully to provide all features necessary to ensure its compliance with electrical safety requirements. It was also designed for a long fault-free life. However, the life expectancy of your product can be drastically reduced by improper treatment during unpacking and installation. -
Page 8: Special Handling And Unpacking Instruction
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 Special Handling and Unpacking Instruction ESD Sensitive Device! Electronic boards and their components are sensitive to static electricity. Therefore, care must be taken during all handling operations and inspections of this product, in order to ensure product integrity at all times. -
Page 9: Quality And Environmental Management
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 Quality and Environmental Management Kontron aims to deliver reliable high-end products designed and built for quality, and aims to complying with environmental laws, regulations, and other environmentally oriented requirements. For more information regarding Kontron’s quality and environmental responsibilities, visit http://www.kontron.com/about-kontron/corporate- responsibility/quality-management. -
Page 10: Table Of Contents
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 Table of Contents Symbols ..........................................6 For Your Safety ........................................7 High Voltage Safety Instructions .................................. 7 Optical Safety Instructions ....................................7 Special Handling and Unpacking Instruction ............................8 Lithium Battery Precautions .................................. -
Page 11: List Of Tables
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 Technical Support ..................................... 33 9.1. Returning Defective Merchandise ..............................33 Warranty ......................................34 10.1. Limitation/Exemption from Warranty Obligation ........................34 List of Acronyms ......................................35 About Kontron ........................................36 List of Tables Table 1: Scope of Delivery .................................... -
Page 12: 1/ Introduction
1/ Introduction This user guide focuses on describing the special features the Kontron KSwitch D3 UMP unmanaged PoE Ethernet switch series referred to as switch within this user guide. To ensure you have the latest version of this user guide, visit Kontron’s KSwitch Industrial Ethernet Switches, at https://www.kontron.com/products/systems/ethernet-... -
Page 13: 2/ General Safety Instructions
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 2/ General Safety Instructions Please read this passage carefully and take careful note of the instructions, which have been compiled for your safety and to ensure to apply in accordance with intended regulations. If the following general safety instructions are not observed, it could lead to injuries to the operator and/or damage of the product;... -
Page 14: Laser
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 a suitable, easily accessible disconnecting device is used in the application (e.g. overcurrent protective device), if the product itself is not disconnectable a disconnect device, if provided in or as part of the product, shall disconnect both poles simultaneously ... -
Page 15: 3/ Shipment And Packaging
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 3/ Shipment and Packaging 3.1. Packaging All parts are delivered together in a switch specific cardboard package designed to provide adequate protection to absorb shock. Kontron recommends keeping the packaging to store or transport the switch. 3.2. - Page 16 KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 Product Name / Product Group Description RK4U 19” Rack Mount Kit 4U Enables DIN-Rail switch to be installed in a 4U rack WK25 Wall Mount Kit Power Supply / Adapter 230 VAC to DC Power Adaptor SFP Modules EN-SFP-G-SX00-T...
-
Page 17: Product Identification Type Label Example
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 3.5. Product Identification Type Label Example Figure 1: KSwitch Type Label 24-48VDC Max. 0.425A Model full name Production date Series name Electrical Specification Part Number(PN) with bar code QI code Revision Certification Information... -
Page 18: 4/ Features
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 4/ Features Before working with the switch, Kontron recommends users to take a few minutes to learn about the switch’s various features and to observe the instructions and warning notices within this user guide. The KSwitch D3 UMP is an unmanaged industrial Ethernet switch with eight 10/100 Mbps Ethernet ports that meets the IEEE 802.3af/at standard with 15.4 W/30 W PoE output and up to two 10/100/1000 Mbps copper/fiber ports. -
Page 19: Faceplate Features
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 4.1. Faceplate Features 4.1.1. RJ45 Copper PoE Ethernet Ports When connecting to a PC use a straight-through or a cross-over Ethernet cable and when connecting to an Ethernet device use UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair) Ethernet cables. -
Page 20: Power Over Ethernet (Poe)
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 4.1.2. Power Over Ethernet (PoE) The Ethernet ports ‘1’ up to ‘8‘ are IEEE 802.3af/at compliant PoE/ PoE+ ports. When connected to a Powered Device (PD), the switch automatically detects if the PD is PoE or PoE+ and powers accordingly with either 15.4 W or 30 W, full load. -
Page 21: Sfp Fiber Ethernet Ports
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 4.1.3. SFP Fiber Ethernet Ports The switch supports up to two 1000Base fiber SFP slots ‘G1‘ and ‘G2‘ with separate Link/Activity indicator LEDs labelled accordingly. When connecting a 1000 Mbps fiber port use the SFP slots that accept plug in fiber transceivers that typically have an LC style connector and are available with multimode, single mode, long-haul (for connections up to 80+ km) or special-application transceivers. -
Page 22: Indicator Leds (P 1, P2, Alm, Poe, Link/Activity And Speed)
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 4.1.4. Indicator LEDs (P 1, P2, ALM, PoE, Link/Activity and Speed) The indicator LEDs show the normal operation of the switch and in the case of failure may be used for faultfinding. The Ethernet ports‘1’... -
Page 23: Top Side Features
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 4.2. Top Side Features 4.2.1. DC Terminal Block Power Contacts The switch can be powered from dual external DC power supplies (input range: 24 VDC to 48 VDC) by inserting the positive and negative wires into the corresponding contacts for the first power supply P1+/- and second power supply P2+/- on the DC terminal block and tightening the wire-clamp screws to prevent the wires from loosening. -
Page 24: Ground Connector
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 4.2.1.1. DC Terminal Block Alarm Relay Contacts (non-PoE variants) The alarm relay contacts, in the middle of the DC terminal block, detect an Ethernet port failure and form a short circuit. -
Page 25: Rear Side Features
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 4.3. Rear Side Features The mounting holes for the DIN-Rail clip enabling the orientation of the DIN-Rail clip to be changed by 180°. Sets of mounting holes at the top and bottom sides of the rear side enable installation of wall mount plates. For mounting information, see Chapter 5/Mounting. -
Page 26: 5/ Mounting
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 5/ Mounting Before mounting the switch, consider the required orientation of the switch within the installation environment and access to connectors. Mount leaving a clearance of 20 mm around the switch, to ensure proper operation and to prevent the switch from overheating. -
Page 27: Figure 13: Wall Mount Plate Location
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 Figure 13: Wall Mount Plate Location 27 mm 131.3 mm 143.2 mm 27 mm The distance from the wall mount plate’s mounting holes to the top of the wall mount plate is 27 mm. -
Page 28: 6/ Starting Up
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 6/ Starting Up Before connecting the switch to power and starting up, read and observe the instructions within this user guide including Chapter 2/: General Safety Instructions. Only connect the switch to an external power supply providing the voltage type (AC or DC) and the input power (max. -
Page 29: 7/ Technical Specification
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 7/ Technical Specification The KSwitch D3 UMP supports up to 10-ports. 7.1. Hardware Specification Table 5: Hardware Specification 10-Port Network Operating Store and forward, L2 wire-speed/non-blocking switching engine MAC addresses Packet Buffer 4 Mbits... -
Page 30: Environmental Specification
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 7.2. Environmental Specification Table 6: Environmental Specification Environmental 10-port Operating Temperature -40 to +75°C (cold startup at -40°C) Storage Temperature -40 to +85°C Humidity 5% to 95% RH (non-condensing) 7.3. -
Page 31: Power Specification
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 7.5. Power Specification The switch supports dual external DC power supplies. The external DC power supplies must fulfill the specified electrical ratings in this user guide, comply with the safety requirements of UL/IEC 62368-1 and be able to supply the PDs with adequate power. -
Page 32: 8/ Maintenance
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 8/ Maintenance The switch contains no user serviceable parts. Maintenance or repair on the switch may only be carried out by qualified personnel authorized by Kontron. Return the switch to Kontron for maintenance and repair, see Chapter 9.1: Returning Defective Merchandise. The switch contains no user serviceable parts. -
Page 33: 9/ Technical Support
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 9/ Technical Support For technical support contact our Support Department: E-mail: support@kontron.com Phone: +49-821-4086-888 Make sure you have the following information available when you call: Product ID Number (PN), ... -
Page 34: 10/ Warranty
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 Warranty Kontron defines product warranty in accordance with regional warranty definitions. Claims are at Kontron’s discretion and limited to the defect being of a material nature. To find out more about the warranty conditions and the defined warranty period for your region, following the steps below: Visit Kontron’s Term and Conditions webpage. -
Page 35: List Of Acronyms
KSwitch D3 UMP Unmanaged PoE Ethernet Switch - User Guide, Rev. 1.0 List of Acronyms Table 10: List of Acronyms Alternating Current Network Time Protocol Access Control List Powered Device BPDU Bridge Protocol Data Unit Part Number Code of Federal Regulations Power over Ethernet Direct Current Power Source 2... -
Page 36: About Kontron
KSwitch D3 UMP Unmanaged PoE Ethernet Switch – User Guide, Rev. 1.0 About Kontron Kontron is a global leader in IoT/Embedded Computing Technology (ECT). As a part of technology group S&T, Kontron, together with its sister company S&T Technologies, offers a combined portfolio of secure hardware, middleware and services for Internet of Things (IoT) and Industry 4.0 applications.
