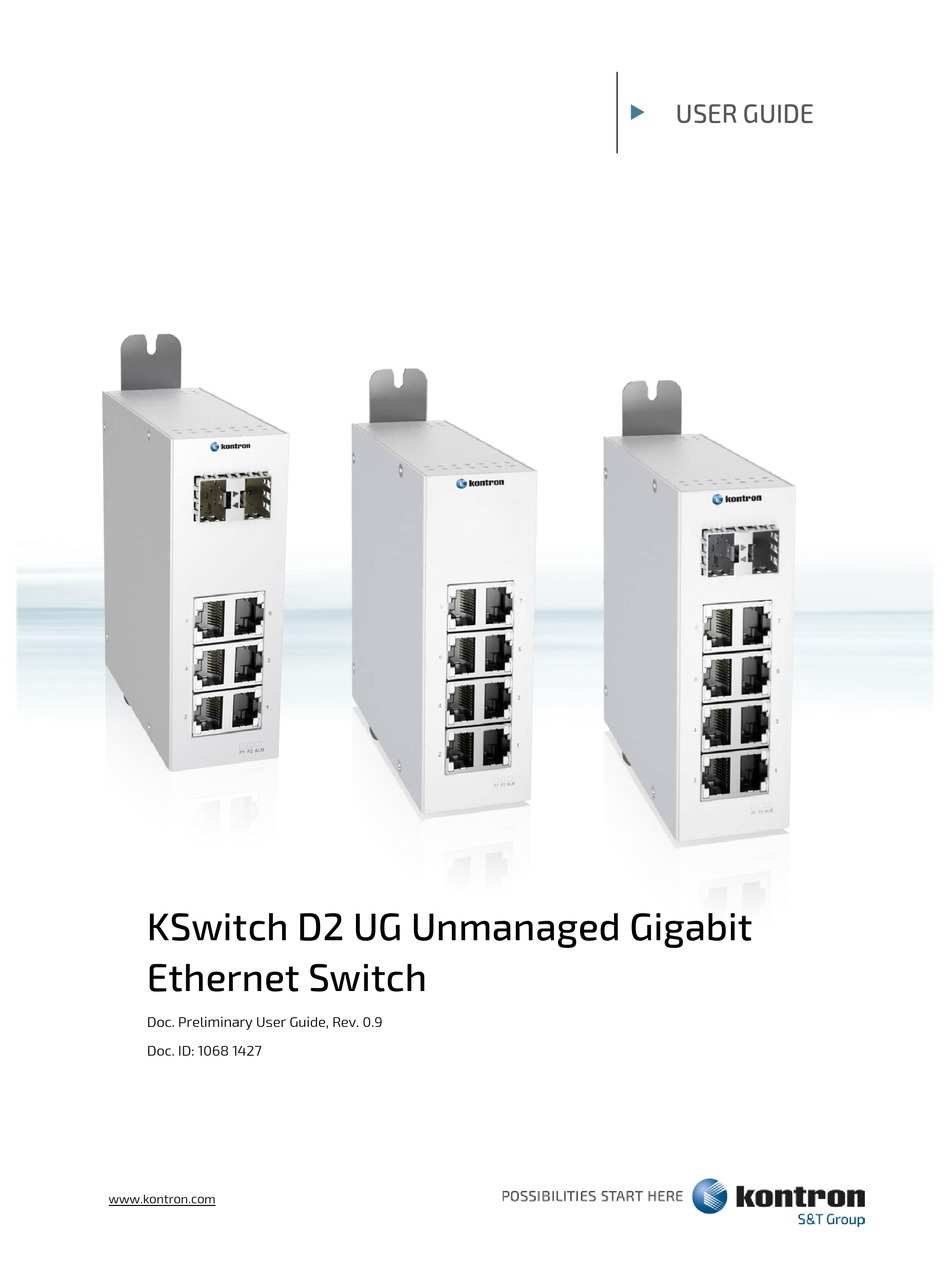

- Page 1 USER GUIDE KSwitch D2 UG Unmanaged Gigabit Ethernet Switch Doc. Preliminary User Guide, Rev. 0.9 Doc. ID: 1068 1427 www.kontron.com...
- Page 2 KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 This page has been intentionally left blank www.kontron.com // 2...
- Page 3 KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 KSWITCH D2 UG UNMANAGED GIGABIT ETHERNET SWITCH – USER GUIDE Disclaimer Kontron would like to point out that the information contained in this user guide may be subject to alteration, particularly as a result of the constant upgrading of Kontron products.
- Page 4 KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 Intended Use THIS DEVICE AND ASSOCIATED SOFTWARE ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE FOR THE OPERATION OF NUCLEAR FACILITIES, THE NAVIGATION, CONTROL OR COMMUNICATION SYSTEMS FOR AIRCRAFT OR OTHER TRANSPORTATION, AIR TRAFFIC CONTROL, LIFE SUPPORT OR LIFE SUSTAINING APPLICATIONS, WEAPONS SYSTEMS, OR ANY OTHER APPLICATION IN A HAZARDOUS ENVIRONMENT, OR REQUIRING FAIL-SAFE PERFORMANCE, OR IN WHICH THE FAILURE OF...
- Page 5 KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 Revision History Revision Brief Description of Changes Date of Issue Author/ Editor Preliminary version 2021-April-21 Terms and Conditions Kontron warrants products in accordance with defined regional warranty periods. For more information about warranty compliance and conformity, and the warranty period in your region, visit http://www.kontron.com/terms- and-conditions.
-
Page 6: Symbols
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. -
Page 7: For Your Safety
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch – Preliminary User Guide, Rev. 0.9 For Your Safety Your new Kontron product was developed and tested carefully to provide all features necessary to ensure its compliance with electrical safety requirements. It was also designed for a long fault-free life. However, the life expectancy of your product can be drastically reduced by improper treatment during unpacking and installation. -
Page 8: Special Handling And Unpacking Instruction
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 Special Handling and Unpacking Instruction ESD Sensitive Device! Electronic boards and their components are sensitive to static electricity. Therefore, care must be taken during all handling operations and inspections of this product, in order to ensure product integrity at all times. -
Page 9: Quality And Environmental Management
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 Quality and Environmental Management Kontron aims to deliver reliable high-end products designed and built for quality, and aims to complying with environmental laws, regulations, and other environmentally oriented requirements. For more information regarding Kontron’s quality and environmental responsibilities, visit http://www.kontron.com/about-kontron/corporate- responsibility/quality-management. -
Page 10: Table Of Contents
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 Table of Contents Symbols ..........................................6 For Your Safety ........................................7 High Voltage Safety Instructions .................................. 7 Optical Safety Instructions ....................................7 Special Handling and Unpacking Instruction ............................8 Lithium Battery Precautions .................................. -
Page 11: List Of Tables
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 9.1. Returning Defective Merchandise ..............................33 Warranty ......................................34 10.1. Limitation/Exemption from Warranty Obligation ........................34 List of Acronyms ......................................35 About Kontron ........................................36 List of Tables Table 1: Scope of Delivery .................................... -
Page 12: 1/ Introduction
1/ Introduction This user guide focuses on describing the special features of the Kontron KSwitch D2 UG Unmanaged Fast Industrial Switch series referred to as switch within this user guide. To ensure you have the latest version of this user guide, visit Kontron’s KSwitch Industrial Ethernet Switches, at https://www.kontron.com/products/systems/ethernet-... -
Page 13: 2/ General Safety Instructions
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 2/ General Safety Instructions Please read this passage carefully and take careful note of the instructions, which have been compiled for your safety and to ensure to apply in accordance with intended regulations. If the following general safety instructions are not observed, it could lead to injuries to the operator and/or damage of the product;... -
Page 14: Laser
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 a suitable, easily accessible disconnecting device is used in the application (e.g. overcurrent protective device), if the product itself is not disconnectable a disconnect device, if provided in or as part of the product, shall disconnect both poles simultaneously ... -
Page 15: 3/ Shipment And Packaging
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 3/ Shipment and Packaging 3.1. Packaging All parts are delivered together in a switch specific cardboard package designed to provide adequate protection to absorb shock. Kontron recommends keeping the packaging to store or transport the switch. 3.2. - Page 16 KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 Product Name Description RK4U 19” Rack Mount Kit 4U Enables DIN-Rail switches to be installed in a 4U rack WK25 Wall Mount Kit 2x wall mount plates and screws Product Name Product Group Description...
-
Page 17: Product Identification Type Label
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 3.5. Product Identification Type Label Figure 1: Type Label Model full name Production date Series name Electrical specification Part Number (PN) with bar code QI code Revision Certification information Serial Number (SN) with barcode www.kontron.com... -
Page 18: 4/ Features
The Kontron KSwitch D2 UG series offers cost-effective unmanaged industrial Ethernet switches with up to 10 Gigabit copper or fiber optics Ethernet ports providing easy to use plug-n-play connectivity. -
Page 19: Faceplate Features
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 4.1. Faceplate Features 4.1.1. RJ45 Copper Ethernet Ports To connect to a PC use a straight-through or a cross-over Ethernet cable and when connecting to an Ethernet device use UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair) Ethernet cables. -
Page 20: Sfp Fiber Ethernet Ports
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 4.1.2. SFP Fiber Ethernet Ports The switch supports up to two 100/1000 Mbps fiber SFP slot Ethernet ports on the 8-port and 10-port switch variants.. To connect to a 100 Mbps fiber port, use the LC or SC connector (with optional SC to LC adapter). The connectors are also available with multimode, single mode, long-haul (for connections up to 120+ km) or special-application transceivers. -
Page 21: Indicator Leds (P1, P2 And Ethernet)
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 4.1.3. Indicator LEDs (P1, P2 and Ethernet) The indicator LEDs indicate the normal operation of the switch and in the case of failure may be used for faultfinding The indicator LEDs are contained within the RJ45 connectors or as separate Link/Activity (L/A), Fiber/Optic (F/O) and power indictor LEDs. -
Page 22: Bottom Side Features
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 4.2. Bottom Side Features 4.2.1. DC Terminal Block The switch can be powered from dual external DC power supplies by inserting the positive and negative wires into the corresponding contacts for the first power supply (P1+/-) and second power supply (P2+/-) on the DC terminal block and tighten the wire-clamp screws to prevent the wires from loosening. -
Page 23: Ground Connector
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 4.2.2. Ground Connector The switch must be grounded properly using the ground connector for optimum system performance. Figure 7: Ground Connector (8-port, 10-port) Ground properly using a ground that meets the ground requirements specified in your local, national and international region. -
Page 24: Rear Side Features
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 4.3. Rear Side Features The mounting holes for the DIN-Rail clip enable the orientation of the DIN-Rail clip to be changed by 180°. Sets of mounting holes at the top and bottom of the rear side enable installation of two wall mount plates. For mounting information, see Chapter 5/Mounting. -
Page 25: 5/ Mounting
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 5/ Mounting Before mounting the switch, consider the required orientation of the switch within the installation environment and access to connectors. Mount leaving a clearance of 20 mm around the switch, to ensure proper operation and to prevent the switch from overheating. -
Page 26: Wall Mounting
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 5.3. Wall Mounting To mount on a flat surface or wall use the Wall Mount Kit, see Table 2: List of Accessories. Two wall mount plates are required to mount the switch. -
Page 27: 6/ Starting Up
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 6/ Starting Up Before connecting the switch to power and starting up, read and observe the instructions within this user guide including Chapter 2/: General Safety Instructions. The switch supports dual power inputs with an input range of 12 VDC to 58 VDC, on the power contacts P1+/- and P2+/- on the DC terminal block. -
Page 28: 7/ Technical Specification
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 7/ Technical Specification The KSwitch D2 UG unmanaged Gigabit Ethernet switch supports 8-port and 10-port variants. 7.1. Hardware Specification Table 5: Hardware Specification 8-Port 10-Port Network Operating Store and forward, L2 wire-speed/non-blocking switching engine MAC addresses Packet Buffer... -
Page 29: Environmental Specification
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 7.2. Environmental Specification Table 6: Environmental Specification Environmental 8-port 10-port Operating Temperature -40°C to +75°C (cold startup at -40°C) Storage Temperature -40°C to +85°C Humidity 5% to 95% RH (non-condensing) 7.3. -
Page 30: Figure 12: Mechanical Dimensions
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 Figure 12: Mechanical Dimensions 8-port 10-port www.kontron.com // 30... -
Page 31: Power Specification
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 7.5. Power Specification The switch supports dual external DC power supplies. The external DC power supplies used must fulfill the specified electrical ratings in this user guide and comply with the safety requirements of UL/IEC 62368-1. Table 9: Electrical Specification Power 8-port... -
Page 32: 8/ Maintenance
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 8/ Maintenance The switch contains no user serviceable parts. Maintenance or repair on the switch may only be carried out by qualified personnel authorized by Kontron. Return the switch to Kontron for maintenance and repair, see Chapter 9.1: Returning Defective Merchandise. For maintenance and repair, return the switch the Kontron, see Chapter 9.1: Returning Defective Merchandise www.kontron.com... -
Page 33: 9/ Technical Support
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 9/ Technical Support For technical support, contact Kontron’s Support department: E-mail: support@kontron.com Phone: +49-821-4086-888 Make sure you have the following information available when you call: ... -
Page 34: 10/ Warranty
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 Warranty Kontron defines product warranty in accordance with regional warranty definitions. Claims are at Kontron’s discretion and limited to the defect being of a material nature. To find out more about the warranty conditions and the defined warranty period for your region, following the steps below: Visit Kontron’s Term and Conditions webpage. -
Page 35: List Of Acronyms
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch - Preliminary User Guide, Rev. 0.9 List of Acronyms Table 10: List of Acronyms Alternating Current Network Time Protocol Access Control List Powered Device BPDU Bridge Protocol Data Unit Part Number Code of Federal Regulations Power over Ethernet Direct Current Power Source 2... -
Page 36: About Kontron
KSwitch D2 UG Unmanaged Gigabit Ethernet Switch – Preliminary User Guide, Rev. 0.9 About Kontron Kontron is a global leader in IoT/Embedded Computing Technology (ECT). As a part of technology group S&T, Kontron, together with its sister company S&T Technologies, offers a combined portfolio of secure hardware, middleware and services for Internet of Things (IoT) and Industry 4.0 applications.
