Related Manuals for S&T kontron KSwitch D1 UGP
Summary of Contents for S&T kontron KSwitch D1 UGP

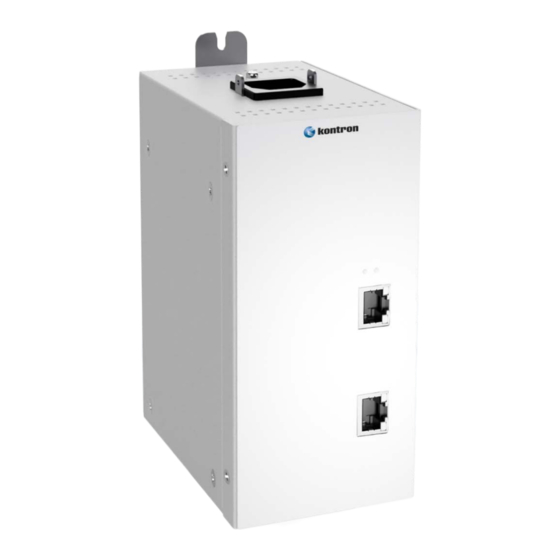

- Page 1 USER GUIDE KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch Doc. Preliminary User Guide, Rev 0.9. Doc. ID: 1068-1428 www.kontron.com...
- Page 2 KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. This page has been intentionally left blank www.kontron.com // 2...
- Page 3 KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. KSWITCH D1 UGP UNMANAGED GIGABIT POE ETHERNET SWITCH – USER GUIDE Disclaimer Kontron would like to point out that the information contained in this user guide may be subject to alteration, particularly as a result of the constant upgrading of Kontron products.
- Page 4 KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. Intended Use THIS DEVICE AND ASSOCIATED SOFTWARE ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE FOR THE OPERATION OF NUCLEAR FACILITIES, THE NAVIGATION, CONTROL OR COMMUNICATION SYSTEMS FOR AIRCRAFT OR OTHER TRANSPORTATION, AIR TRAFFIC CONTROL, LIFE SUPPORT OR LIFE SUSTAINING APPLICATIONS, WEAPONS SYSTEMS, OR ANY OTHER APPLICATION IN A HAZARDOUS ENVIRONMENT, OR REQUIRING FAIL-SAFE PERFORMANCE, OR IN WHICH THE FAILURE OF...
- Page 5 KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. Revision History Revision Brief Description of Changes Date of Issue Author/ Editor Preliminary version 2021-April-21 Terms and Conditions Kontron warrants products in accordance with defined regional warranty periods. For more information about warranty compliance and conformity, and the warranty period in your region, visit http://www.kontron.com/terms- and-conditions.
-
Page 6: Symbols
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. -
Page 7: For Your Safety
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch – Preliminary User Guide, Rev 0.9. For Your Safety Your new Kontron product was developed and tested carefully to provide all features necessary to ensure its compliance with electrical safety requirements. It was also designed for a long fault-free life. However, the life expectancy of your product can be drastically reduced by improper treatment during unpacking and installation. -
Page 8: Special Handling And Unpacking Instruction
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. Special Handling and Unpacking Instruction ESD Sensitive Device! Electronic boards and their components are sensitive to static electricity. Therefore, care must be taken during all handling operations and inspections of this product, in order to ensure product integrity at all times. -
Page 9: Quality And Environmental Management
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. Quality and Environmental Management Kontron aims to deliver reliable high-end products designed and built for quality, and aims to complying with environmental laws, regulations, and other environmentally oriented requirements. For more information regarding Kontron’s quality and environmental responsibilities, visit http://www.kontron.com/about-kontron/corporate- responsibility/quality-management. -
Page 10: Table Of Contents
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. Table of Contents Symbols ..........................................6 For Your Safety ........................................7 High Voltage Safety Instructions .................................. 7 Optical Safety Instructions ....................................7 Special Handling and Unpacking Instruction ............................8 Lithium Battery Precautions .................................. -
Page 11: List Of Tables
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 7.1. Hardware Specification ..................................30 7.2. Environmental Specification ................................. 31 7.3. Certifications ......................................31 7.4. Mechanical Specification ..................................31 7.5. Power Specification ....................................33 Maintenance ....................................... 35 Technical Support ..................................... -
Page 12: 1/ Introduction
1/ Introduction This user guide focuses on describing the special features of the Kontron KSwitch D1 UGP PoE Injector series referred to as switch within this user guide. To ensure you have the latest version of this user guide, visit Kontron’s KSwitch Industrial Ethernet Switches, at https://www.kontron.com/products/systems/ethernet-solutions/. -
Page 13: 2/ General Safety Instructions
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 2/ General Safety Instructions Please read this passage carefully and take careful note of the instructions, which have been compiled for your safety and to ensure to apply in accordance with intended regulations. If the following general safety instructions are not observed, it could lead to injuries to the operator and/or damage of the product;... -
Page 14: Laser
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. a suitable, easily accessible disconnecting device is used in the application (e.g. overcurrent protective device), if the product itself is not disconnectable a disconnect device, if provided in or as part of the product, shall disconnect both poles simultaneously ... -
Page 15: 3/ Shipment And Packaging
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 3/ Shipment and Packaging 3.1. Packaging All parts are delivered together in a switch specific cardboard package designed to provide adequate protection to absorb shock. Kontron recommends keeping the packaging to store or transport the switch. 3.2. -
Page 16: Accessories
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 3.4. Accessories Table 2: List of Accessories Product Name Order Information Description Mounting Kits RK2U 19” Rack Mount Kit 2U Enables DIN-Rail switch to be installed in a 2U rack RK4U 19”... -
Page 17: Product Identification Type Label
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 3.5. Product Identification Type Label Figure 1: Type Label Model full name Production date Series name Electrical Specification Part Number(PN) with bar code QI code Revision Certification Information Serial Number (SN) with barcode www.kontron.com... -
Page 18: 4/ Features
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 4/ Features Before working with the switch, Kontron recommends users to take a few minutes to learn about the switch’s various features and to observe the instructions and warning notices within this user guide. The KSwitch D1 UGP PoE injector series is an unmanaged Gigabit industrial PoE injector that meets the IEEE 802.3af/at standard with up to 60 Watts output in a ruggedized design. -
Page 19: Faceplate Features
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 4.1. Faceplate Features 4.1.1. RJ45 Copper Ethernet Ports When connecting the switch to a PC use a straight-through or a cross-over Ethernet cable and when connecting the switch to an Ethernet device use UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair) Ethernet cables. -
Page 20: Indicator Leds (Sys, Poe / Pwr, Poe)
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 4.1.2. Indicator LEDs (SYS, PoE / PWR, PoE) The LEDs indicate the normal operation of the switch and in the case of failure may be used for faultfinding. Figure 4: Indicator LEDs DC version AC Version... -
Page 21: Bottom Side Features (Dc Version)
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 4.2. Bottom Side Features (DC version) The switch (DC version) supports a DC terminal block and a DC power Jack. 4.2.1. DC Terminal Block The switch can be powered from an external DC power supply (input range: 24 VDC to 48 VDC) by insert the positive and negative wires into the corresponding V+/- contacts on the DC terminal block and tightening the wire-clamp screws to prevent the wires from loosening. -
Page 22: Dip-Switch Poe Mode
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. Figure 6: DC Power Jack The DC power jack is not lockable. Due to possible accidental disconnection, Kontron recommends using the DC terminal block as the primary power source. With multiple power sources connected to the switch, the switch utilizes the power supply with the higher voltage or the most stable power supply. -
Page 23: Ground Connector
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 4.2.4. Ground Connector The switch must be grounded properly for optimum system performance. Figure 8: Ground Connector (DC Version) When connecting a ground wire to the switch, ensure that the wire size range is 18 to 14 AWG, and resistance is less than 5 ohms. -
Page 24: Top Side Features (Ac Version)
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 4.3. Top Side Features (AC version) 4.3.1. AC Power Connector The switch (AC version) supports an AC power connector (Type: IEC 320) 100 VAC/240 VAC, 50 Hz/-60 Hz that connects to a mains power outlet using an AC power cable, see Table 2: List of Accessories. -
Page 25: Rear Side Features
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 4.4. Rear Side Features The mounting holes for the DIN-Rail clip enable the orientation of the DIN-Rail clip to be changed by 180°. Sets of mounting holes at the top and bottom of the rear side enable installation of wall mount plates. For mounting information, see Chapter 5/Mounting. -
Page 26: 5/ Mounting
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 5/ Mounting Before installing the switch, consider the required orientation of the switch within the installation environment and access to connectors. Mount leaving a clearance of 20 mm around the switch, to ensure proper operation and to prevent the switch from overheating. -
Page 27: Wall Mounting
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 5.3. Wall Mounting To mount on a flat surface or wall use the Wall Mount Kit, see Table 2: List of Accessories. Figure 13: Wall Mount Plate Two mounting holes to fasten to the Grove to mount with screw on a wall or switch... -
Page 28: 6/ Starting Up
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 6/ Starting Up Before connecting the switch to power and starting up, read and observe the instructions within this user guide including Chapter 2/: General Safety Instructions. The switch’s DC version supports two power options a DC terminal block and a DC power Jack. -
Page 29: Connecting To Dc Power Jack (Dc Version)
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 6.2. Connecting to DC Power Jack (DC version) To connect the switch to an AC/DC power adapter with 24 VDC to 48 VDC and turn on, perform the following: Connect a ground wire to the ground connector. -
Page 30: 7/ Technical Specification
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 7/ Technical Specification The KSwitch D1 UGP supports 2-ports and DC or AC power versions. 7.1. Hardware Specification Table 5: Hardware Specification KSwitch D1 UGP Ports Port type Shielded RJ45 Ethernet Compliance... -
Page 31: Environmental Specification
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 7.2. Environmental Specification Table 6: Environmental Specification Environmental KSwitch D1 UGP Operating Temperature -40 to +75°C (cold startup at -40°C) Storage Temperature -40 to +85°C Humidity 5% to 95% RH (non-condensing) 7.3. -
Page 32: Figure 16: Mechanical Dimensions 2-Port (Ac Version)
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. Figure 16: Mechanical Dimensions 2-port (AC version) www.kontron.com // 32... -
Page 33: Power Specification
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 7.5. Power Specification The switch (DC version) supports an external DC power supply. The external DC power supplies used must fulfill the specified electrical ratings in this user guide and comply with the safety requirements of UL/IEC 62368-1. The switch (AC version) supports the connection to a AC mains power source that must fulfill the specified electrical ratings in this user guide and comply with the safety requirements of UL/IEC 62368-1. - Page 34 KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. After a brownout condition the used power supply must remain in the “off state” long enough to allow all internal voltages to discharge sufficiently. Failure to observe this required “off state”...
-
Page 35: 8/ Maintenance
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 8/ Maintenance The switch contains no user serviceable parts. Maintenance or repair on the switch may only be carried out by qualified personnel authorized by Kontron. Return the KSwitch D1 UGP to Kontron for maintenance and repair, see Chapter 9.1: Returning Defective Merchandise. -
Page 36: 9/ Technical Support
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. 9/ Technical Support For technical support contact our Support department: E-mail: support@kontron.com Phone: +49-821-4086-888 Make sure you have the following information available when you call: ... -
Page 37: 10/ Warranty
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. Warranty Kontron defines product warranty in accordance with regional warranty definitions. Claims are at Kontron’s discretion and limited to the defect being of a material nature. To find out more about the warranty conditions and the defined warranty period for your region, following the steps below: Visit Kontron’s Term and Conditions webpage. -
Page 38: List Of Acronyms
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch - Preliminary User Guide, Rev 0.9. List of Acronyms Table 10: List of Acronyms Alternating Current Network Time Protocol Access Control List Powered Device BPDU Bridge Protocol Data Unit Part Number Code of Federal Regulations Power over Ethernet Direct Current Power Source 2... -
Page 39: About Kontron
KSwitch D1 UGP Unmanaged Gigabit PoE Ethernet Switch – Preliminary User Guide, Rev 0.9. About Kontron Kontron is a global leader in IoT/Embedded Computing Technology (ECT). As a part of technology group S&T, Kontron, together with its sister company S&T Technologies, offers a combined portfolio of secure hardware, middleware and services for Internet of Things (IoT) and Industry 4.0 applications.
