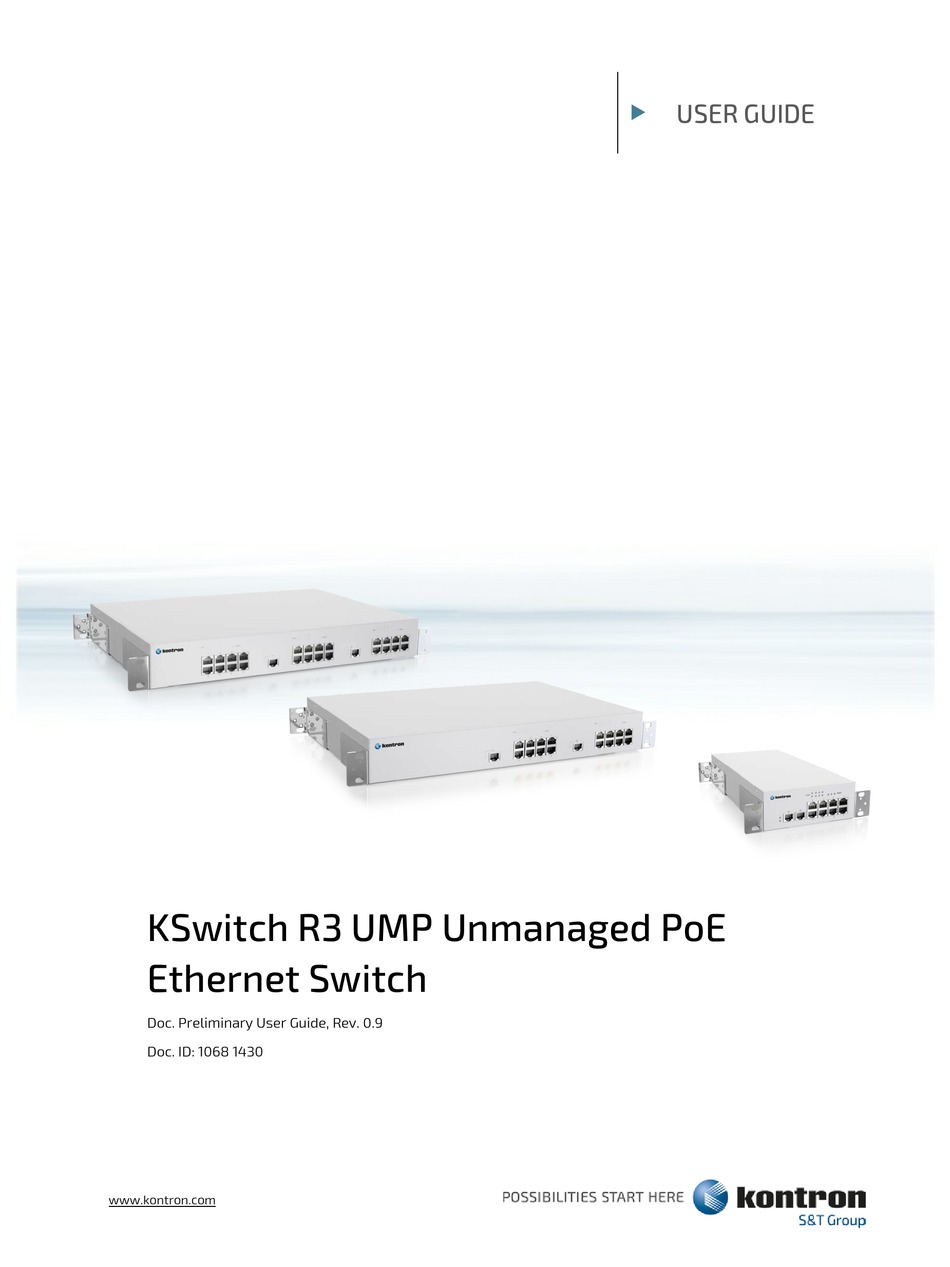

- Page 1 USER GUIDE KSwitch R3 UMP Unmanaged PoE Ethernet Switch Doc. Preliminary User Guide, Rev. 0.9 Doc. ID: 1068 1430 www.kontron.com...
- Page 2 KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 This page has been intentionally left blank www.kontron.com // 2...
- Page 3 KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 KSWITCH R3 UMP UNMANAGED POE ETHERNET SWITCH – USER GUIDE Disclaimer Kontron would like to point out that the information contained in this user guide may be subject to alteration, particularly as a result of the constant upgrading of Kontron products.
- Page 4 KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 Intended Use THIS DEVICE AND ASSOCIATED SOFTWARE ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE FOR THE OPERATION OF NUCLEAR FACILITIES, THE NAVIGATION, CONTROL OR COMMUNICATION SYSTEMS FOR AIRCRAFT OR OTHER TRANSPORTATION, AIR TRAFFIC CONTROL, LIFE SUPPORT OR LIFE SUSTAINING APPLICATIONS, WEAPONS SYSTEMS, OR ANY OTHER APPLICATION IN A HAZARDOUS ENVIRONMENT, OR REQUIRING FAIL-SAFE PERFORMANCE, OR IN WHICH THE FAILURE OF...
- Page 5 KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 Revision History Revision Brief Description of Changes Date of Issue Author/ Editor Preliminary Version 2021-April-21 Terms and Conditions Kontron warrants products in accordance with defined regional warranty periods. For more information about warranty compliance and conformity, and the warranty period in your region, visit http://www.kontron.com/terms- and-conditions.
-
Page 6: Symbols
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. -
Page 7: For Your Safety
KSwitch R3 UMP Unmanaged PoE Ethernet Switch – Preliminary User Guide, Rev. 0.9 For Your Safety Your new Kontron product was developed and tested carefully to provide all features necessary to ensure its compliance with electrical safety requirements. It was also designed for a long fault-free life. However, the life expectancy of your product can be drastically reduced by improper treatment during unpacking and installation. -
Page 8: Special Handling And Unpacking Instruction
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 Special Handling and Unpacking Instruction ESD Sensitive Device! Electronic boards and their components are sensitive to static electricity. Therefore, care must be taken during all handling operations and inspections of this product, in order to ensure product integrity at all times. -
Page 9: Quality And Environmental Management
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 Quality and Environmental Management Kontron aims to deliver reliable high-end products designed and built for quality, and aims to complying with environmental laws, regulations, and other environmentally oriented requirements. For more information regarding Kontron’s quality and environmental responsibilities, visit http://www.kontron.com/about-kontron/corporate- responsibility/quality-management. -
Page 10: Table Of Contents
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 Table of Contents Symbols ..........................................6 For Your Safety ........................................7 High Voltage Safety Instructions .................................. 7 Optical Safety Instructions ....................................7 Special Handling and Unpacking Instruction ............................8 Lithium Battery Precautions .................................. -
Page 11: List Of Tables
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 10.1. Limitation/Exemption from Warranty Obligation ........................32 List of Acronyms ......................................33 About Kontron ........................................34 List of Tables Table 1: Scope of Delivery ....................................15 Table 2: List of Accessories ................................... 15 Table 3: Ethernet Ports (RJ45 copper) Connector Pin Assignment .................... -
Page 12: 1/ Introduction
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 1/ Introduction This user guide focuses on describing the special features the Kontron KSwitch R3 UMP unmanaged PoE Ethernet switch series referred to as switch within this user guide. To ensure you have the latest version of this user guide, visit Kontron’s KSwitch Industrial Ethernet switches, at https://www.kontron.com/products/systems/ethernet- solutions/. -
Page 13: 2/ General Safety Instructions
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 2/ General Safety Instructions Please read this passage carefully and take careful note of the instructions, which have been compiled for your safety and to ensure to apply in accordance with intended regulations. If the following general safety instructions are not observed, it could lead to injuries to the operator and/or damage of the product;... -
Page 14: Laser
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 a suitable, easily accessible disconnecting device is used in the application (e.g. overcurrent protective device), if the product itself is not disconnectable a disconnect device, if provided in or as part of the product, shall disconnect both poles simultaneously ... -
Page 15: 3/ Shipment And Packaging
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 3/ Shipment and Packaging 3.1. Packaging All parts are delivered together in a switch specific cardboard package designed to provide adequate protection to absorb shock. Kontron recommends keeping the packaging to store or transport the switch. 3.2. - Page 16 KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 Product Name / Product Group Description wide operating Temp. -40~85°C EN-SFP-G-SX02-T 1 Gigabit SFP Modules 1000Base-SX+ multi-mode transceiver 2km (1310nm), wide operating Temp. -40~85°C EN-SFP-G-LX10-T 1 Gigabit SFP Modules 1000Base-LX single-mode transceiver 10Km (1310nm), wide operating Temp.
-
Page 17: Product Identification Type Label
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 3.5. Product Identification Type Label Figure 1: Type Label Model full name Production date Series name Electrical Specification Part Number(PN) with bar code QI code Revision Certification Information Serial Number (SN) with barcode www.kontron.com // 17... -
Page 18: 4/ Features
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 4/ Features Before working with the switch, Kontron recommends users to take a few minutes to learn about the switch’s various features and to observe the instructions and warning notices within this user guide. The Kontron KSwitch R3 UMP is an unmanaged industrial Ethernet switch with up to 26 fast Ethernet ports where 2- ports support Gigabit TX or FX and up to 24-ports are PoE IEEE 802.3af/at compatible with up to 30 W power output. -
Page 19: Faceplate Features
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 4.1. Faceplate Features 4.1.1. RJ45 Copper PoE Ethernet Ports When connecting to a PC use a straight-through or a cross-over Ethernet cable and when connecting to an Ethernet device use UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair) Ethernet cables. -
Page 20: Gigabit Ethernet Ports (Copper Rj45 Or Fiber Sfp Slot)
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 4.1.3. Gigabit Ethernet Ports (copper RJ45 or fiber SFP slot) The Ethernet ports ‘G1’ and ‘G2’ are 1000 Mbps copper RJ45 connectors or 1000 Mbps fiber port SFP slots. When connecting to a 1000 Mbps fiber port use the SFP slots that accept plug in fiber transceivers that typically have an LC style connector and are available with multimode, single mode, long-haul (for connectors up to 80+ km) or special-application transceivers. -
Page 21: Indicator Leds (Poe, Pwr, Gigabit Ethernet, Fast Ethernet)
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 4.1.4. Indicator LEDs (PoE, PWR, Gigabit Ethernet, Fast Ethernet) The LEDs indicate the normal operation of the switch and in the case of failure may be used for faultfinding Figure 5: Indicator LEDs (10-port, 18-port and 26-port) 10-port 18-port... -
Page 22: Rear Side Features
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 4.2. Rear Side Features 4.2.1. Power Connectors Depending on the switch’s port variant the switch includes up to three 100/240VAC standard IEC 320 power connectors. To avoid accidental removal of the power cable, after inserting the power cable, close the lock lever. The switch’s total power budget depends on the number of power connections with 250 W (10-port), 490 W (18-port), and 730 W (26-port). -
Page 23: Sides Features (Left And Right)
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 4.3. Sides Features (left and right) Rack mount bracket attach to the sides of the switch at the front and rear. Ensure that the ventilation openings on the sides are not covered or blocked, to ensure sufficient ventilation. -
Page 24: 5/ Rack Mounting
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 5/ Rack Mounting Mount in a stable 19" industrial rack cabinet using proper procedures: • Mount from the bottom of the cabinet upwards • Place heavy items lower down •... -
Page 25: 6/ Starting Up
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 6/ Starting Up Before connecting the switch to power and starting up, read and observe the instructions within this user guide including Chapter 2/: General Safety Instructions. Before connecting to power, ensure that the installation sites ground meets the grounding requirements specified in your local, national and international region. -
Page 26: 7/ Technical Specification
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 7/ Technical Specification The KSwitch D3 UMP unmanaged PoE Ethernet switch supports up to 26-ports. 7.1. Hardware Specification Table 5: Hardware Specification 10-Port 18-port 26-port Network Operating Store and forward, L2 wire-speed/non-blocking switching engine Devices Supported All IEEE 802.3 compliant devices are supported... -
Page 27: Environmental Specification
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 7.2. Environmental Specification Table 6: Environmental Specification Environmental 10-Port 18-port 26-port Operating Temperature -40 to +75°C (cold startup at -40°C) Storage Temperature -40 to +85°C Humidity 5% to 95% RH (non-condensing) Environmental Air No corrosive gases permitted 7.3. -
Page 28: Figure 10: Mechanical Dimensions (10-Port)
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 Figure 10: Mechanical Dimensions (10-port) Figure 11: Mechanical Dimensions (18-port) www.kontron.com // 28... -
Page 29: Power Specification
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 Figure 12: Mechanical Dimensions (26-port) 7.5. Power Specification The switch supports up to three (100 VAC/240 VAC) input power connections and up to 24-ports that are IEEE 802.3af/at compliant PoE ports that when connected to a PD, automatically detects if the PD device is PoE or PoE+ and powers the PD accordingly with 15.4 W or 30 W. -
Page 30: 8/ Maintenance
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 8/ Maintenance The switch contains no user serviceable parts. Maintenance or repair on the switch may only be carried out by qualified personnel authorized by Kontron. Return the KSwitch R3 UMP to Kontron for maintenance and repair, see Chapter 9.1: Returning Defective Merchandise. The switch contains no user serviceable parts. -
Page 31: 9/ Technical Support
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 9/ Technical Support For technical support contact our Support Department: E-mail: support@kontron.com Phone: +49-821-4086-888 Make sure you have the following information available when you call: ... -
Page 32: 10/ Warranty
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 Warranty Kontron defines product warranty in accordance with regional warranty definitions. Claims are at Kontron’s discretion and limited to the defect being of a material nature. To find out more about the warranty conditions and the defined warranty period for your region, following the steps below: Visit Kontron’s Term and Conditions webpage. -
Page 33: List Of Acronyms
KSwitch R3 UMP Unmanaged PoE Ethernet Switch - Preliminary User Guide, Rev. 0.9 List of Acronyms Table 10: List of Acronyms Alternating Current Network Time Protocol Access Control List Powered Device BPDU Bridge Protocol Data Unit Part Number Code of Federal Regulations Power over Ethernet Direct Current Power Source 2... -
Page 34: About Kontron
KSwitch R3 UMP Unmanaged PoE Ethernet Switch – Preliminary User Guide, Rev. 0.9 About Kontron Kontron is a global leader in IoT/Embedded Computing Technology (ECT). As a part of technology group S&T, Kontron, together with its sister company S&T Technologies, offers a combined portfolio of secure hardware, middleware and services for Internet of Things (IoT) and Industry 4.0 applications.
