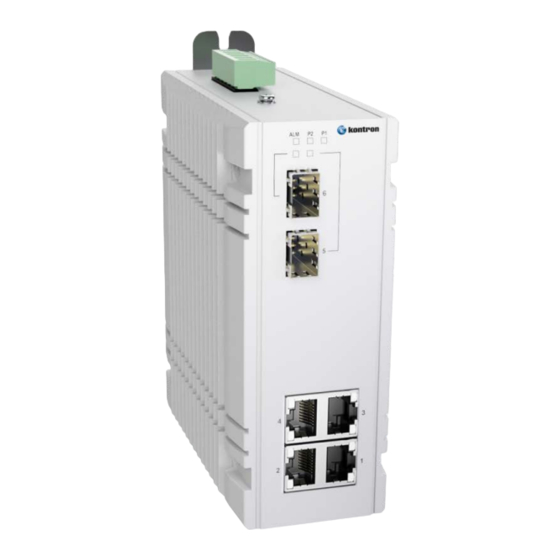

S&T kontron KSwitch D4 MF User Manual

Managed fast ethernet switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

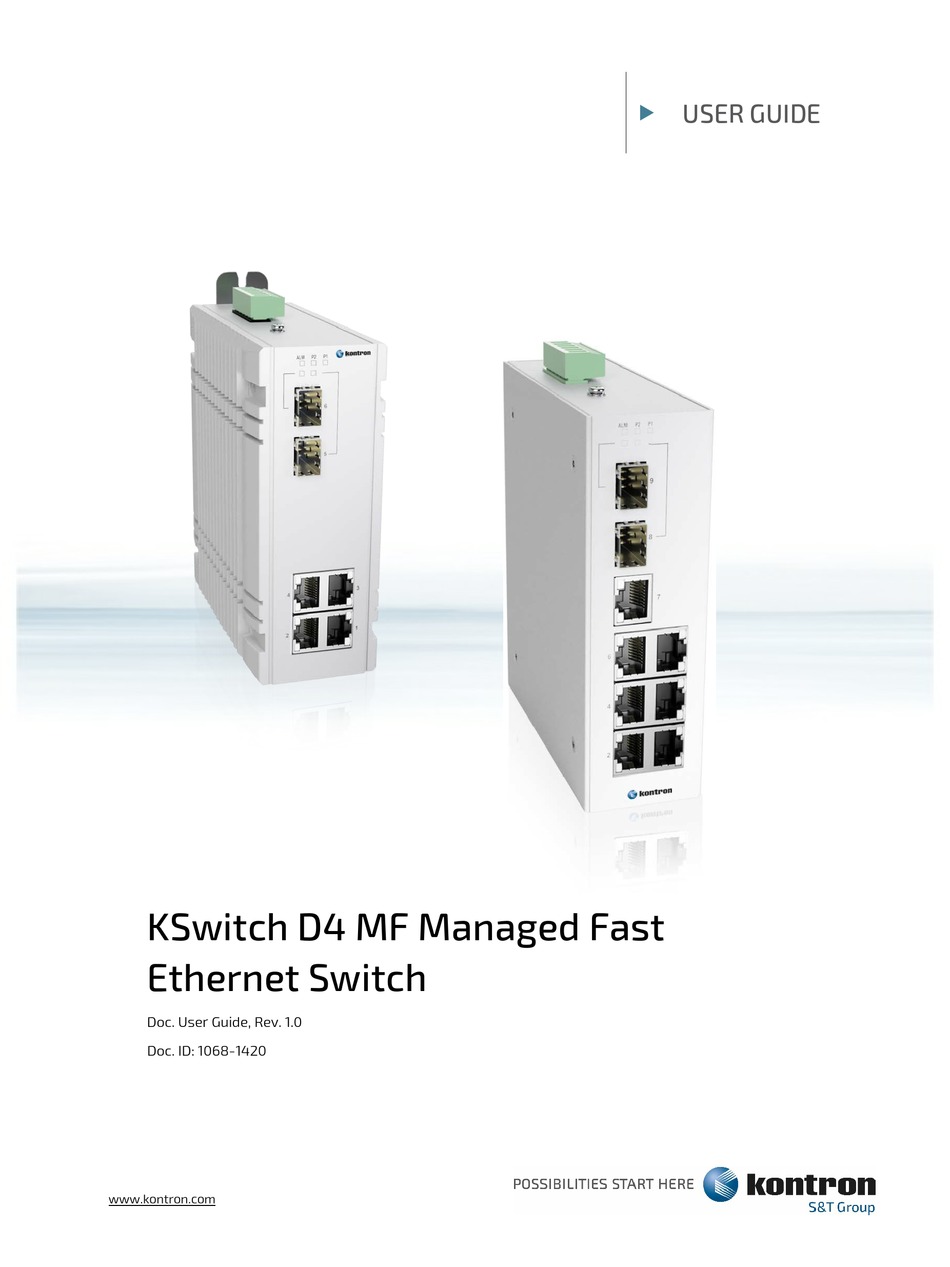

USER GUIDE
KSwitch D4 MF Managed Fast
Ethernet Switch
Doc. User Guide, Rev. 1.0
Doc. ID: 1068-1420
www.kontron.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the kontron KSwitch D4 MF and is the answer not in the manual?

Questions and answers

Related Manuals for S&T kontron KSwitch D4 MF

Summary of Contents for S&T kontron KSwitch D4 MF

  • Page 1  USER GUIDE KSwitch D4 MF Managed Fast Ethernet Switch Doc. User Guide, Rev. 1.0 Doc. ID: 1068-1420 www.kontron.com...
  • Page 2 KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 This page has been intentionally left blank www.kontron.com // 2...
  • Page 3 KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 KSWITCH D4 MF MANAGED FAST ETHERNET SWITCH – USER  GUIDE Disclaimer Kontron would like to point out that the information contained in this user guide may be subject to alteration, particularly as a result of the constant upgrading of Kontron products.
  • Page 4 KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 Intended Use THIS DEVICE AND ASSOCIATED SOFTWARE ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE FOR THE OPERATION OF NUCLEAR FACILITIES, THE NAVIGATION, CONTROL OR COMMUNICATION SYSTEMS FOR AIRCRAFT OR OTHER TRANSPORTATION, AIR TRAFFIC CONTROL, LIFE SUPPORT OR LIFE SUSTAINING APPLICATIONS, WEAPONS SYSTEMS, OR ANY OTHER APPLICATION IN A HAZARDOUS ENVIRONMENT, OR REQUIRING FAIL-SAFE PERFORMANCE, OR IN WHICH THE FAILURE OF PRODUCTS COULD LEAD DIRECTLY TO DEATH, PERSONAL INJURY, OR SEVERE PHYSICAL OR...
  • Page 5 KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 Revision History Revision Brief Description of Changes Date of Issue Author/ Editor Initial version 2021-Oct-05 Terms and Conditions Kontron warrants products in accordance with defined regional warranty periods. For more information about warranty compliance and conformity, and the warranty period in your region, visit http://www.kontron.com/terms- and-conditions.

  • Page 6: Symbols

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 7: For Your Safety

    KSwitch D4 MF Managed Fast Ethernet Switch – User Guide, Rev. 1.0 For Your Safety Your new Kontron product was developed and tested carefully to provide all features necessary to ensure its compliance with electrical safety requirements. It was also designed for a long fault-free life. However, the life expectancy of your product can be drastically reduced by improper treatment during unpacking and installation.

  • Page 8: Special Handling And Unpacking Instruction

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 Special Handling and Unpacking Instruction ESD Sensitive Device! Electronic boards and their components are sensitive to static electricity. Therefore, care must be taken during all handling operations and inspections of this product, in order to ensure product integrity at all times.

  • Page 9: Quality And Environmental Management

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 Quality and Environmental Management Kontron aims to deliver reliable high-end products designed and built for quality, and aims to complying with environmental laws, regulations, and other environmentally oriented requirements. For more information regarding Kontron’s quality and environmental responsibilities, visit http://www.kontron.com/about-kontron/corporate- responsibility/quality-management.

  • Page 10: Table Of Contents

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 Table of Contents Symbols ..........................................6 For Your Safety ........................................7 High Voltage Safety Instructions .................................. 7 Optical Safety Instructions ....................................7 Special Handling and Unpacking Instruction ............................8 Lithium Battery Precautions ..................................
  • Page 11 KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 Web Interface ..................................... 35 8.1. Getting Started and Login ..................................35 8.2. Setting Up the Console Port ................................. 36 8.3. Administrator ......................................38 8.3.1. System Information ..................................... 38 8.3.2.

  • Page 12: List Of Tables

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.10.3. ACL Ctag Settings ....................................72 9.10.4. ACL Stag Settings ....................................72 9.10.5. ACL VLAN Settings....................................73 9.10.6. ACL Bandwidth Settings................................... 73 9.10.7. ACL DSCP Settings ....................................74 9.11.

  • Page 13: List Of Figures

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 List of Figures Figure 1: Type Label......................................19 Figure 2: KSwitch D4 MF Managed Fast Ethernet Switches (6-port and 9-port) ..............20 Figure 3: Copper Ethernet Ports RJ45 Connectors (6-port and 9-port) ..................21 Figure 4: Fiber Ethernet Ports (6-port and 9-port) ..........................

  • Page 14: 1/ Introduction

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 1/ Introduction This user guide focuses on describing the special features of Kontron’s KSwitchD4 MF managed fast industrial Ethernet switch referred to as switch within this user guide. To ensure you have the latest version of this user guide, visit Kontron’s KSwitch Industrial Ethernet Switches, at https://www.kontron.com/products/systems/ethernet- solutions/.

  • Page 15: 2/ General Safety Instructions

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 2/ General Safety Instructions Please read this passage carefully and take careful note of the instructions, which have been compiled for your safety and to ensure to apply in accordance with intended regulations. If the following general safety instructions are not observed, it could lead to injuries to the operator and/or damage of the product;...

  • Page 16: Laser

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0  a suitable, easily accessible disconnecting device is used in the application (e.g. overcurrent protective device), if the product itself is not disconnectable  a disconnect device, if provided in or as part of the product, shall disconnect both poles simultaneously ...

  • Page 17: 3/ Shipment And Packaging

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 3/ Shipment and Packaging 3.1. Packaging All parts are delivered together in a switch specific cardboard package designed to provide adequate protection to absorb shock. Kontron recommends keeping the packaging to store or transport the switch. 3.2.
  • Page 18 KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 Product Name/Product Group Description RK4U 19” Rack Mount Kit 4U Enables DIN-Rail switch to be installed in a 4U rack WK25 Wall Mount Kit Power Supply/ Adapter 230 VAC to DC Power Adaptor SFP Modules EN-SFP-F-M002-T 100 Megabit SFP Modules...

  • Page 19: Product Identification Type Label

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 3.5. Product Identification Type Label Figure 1: Type Label Model full name Production date Series name Electrical specification Part Number(PN) with bar code QI code Revision Certification information Serial Number (SN) with barcode www.kontron.com // 19...

  • Page 20: 4/ Features

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 4/ Features Before working with the switch, Kontron recommends users to take a few minutes to learn about the switch’s various features and to observe the instructions and warning notices within this user guide. The KSwitch D4 MF is a web-managed industrial Ethernet switch with up to nine fast Ethernet ports providing easy to use plug-n-play connectivity.

  • Page 21: Faceplate Features

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 4.1. Faceplate Features 4.1.1. RJ45 Copper Ethernet Ports When connecting to a PC use a straight-through or a cross-over Ethernet cable and when connecting to an Ethernet device use UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair) Ethernet cables. The Ethernet ports ‘1’...

  • Page 22: Fiber Ethernet Ports

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 4.1.2. Fiber Ethernet Ports The switch supports up to three fiber Ethernet ports depending on the switch variant. On the 6-port variant ports ‘5‘ and ‚‘6’ are 100 Mbps fiber SFP slot Ethernet ports and on the 9-port variant ports ‘8‘ and ‘9’ are dedicated 100 Mpbs fiber SFP slots Ethernet ports and Port 7 is variable and may be ordered as 100 Mbps copper RJ45 or fiber SFP slot.

  • Page 23: Indicator Leds P1, P2, Alm And Ethernet

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 4.1.3. Indicator LEDs P1, P2, ALM and Ethernet The LEDs indicate the normal operation of the switch and in the case of failure may be used for faultfinding. Figure 5: Indicator LEDs Power and alarm LEDs 7x copper RJ45 Ethernet ports with...

  • Page 24: Top Side Features

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 4.2. Top Side Features 4.2.1. DC Terminal Block Power Contacts The switch can be powered from dual external DC power supplies (input range of 12 VDC to 58 VDC) by inserting the positive and negative wires into the corresponding contacts for the first power supply P1+/- and second power supply P2+/- on the DC terminal block and tightening the wire-clamp screws to prevent the wires from loosening.

  • Page 25: Dc Terminal Block Alarm Relay Contacts

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 4.2.2. DC Terminal Block Alarm Relay Contacts The alarm relay contacts in the middle of the DC terminal block detect an Ethernet link fail or power supply fail. The alarm relay output is “Normal Close”.

  • Page 26: Reset Button

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 4.2.4. Reset Button The rest button functions include both reboot and reset to default. To reboot the switch press the reset button briefly. To set the factory defaults, press the rest button for a prolonged period of time (5 seconds approximately). The reset button is a small opening with a recessed button to avoid being activated accidentally.

  • Page 27: Rear Side Features

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 4.3. Rear Side Features The mounting holes for the DIN-Rail clip enabling the orientation of the DIN-Rail clip to be changed by 180°. Sets of mounting holes at the top and bottom sides of the rear side enable installation of wall mount plates. For mounting information, see Chapter 5/: Mounting.

  • Page 28: 5/ Mounting

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 5/ Mounting Before mounting the switch consider the required orientation of the switch within the installation environment and access to connectors. Mount leaving a clearance of 20 mm around the switch, to ensure proper operation and to prevent the switch from overheating.

  • Page 29: Wall Mounting

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 5.3. Wall Mounting To mount on a flat surface or wall use the Wall Mount Kit, see Table 2: List of Accessories. Two wall mount plates are required to mount the switch. Figure 12: Wall Mount Plate 2 screws hole to mount on the Grove to mount with screw on a wall or...

  • Page 30: 6/ Starting Up

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 6/ Starting Up Before connecting the switch to power and starting up , read and observe the instruction within this user guide including Chapter 2/: General Safety Instructions. Only connect the switch to an external power supply providing the voltage type (AC or DC) and the input power (max.

  • Page 31: 7/ Technical Specification

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 7/ Technical Specification The KSwitch D4 MF managed industrial Ethernet switch series supports 6-port and 9-port variants. 7.1. Hardware Specification Table 6: Hardware Specification 6-Port 9-Port Network Operating Store and forward, L2 wire-speed/non-blocking switching engine MAC addresses Packet Buffer...

  • Page 32: Environmental Specification

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 6-Port 9-Port Management Security HTTPs, SSH, Access Management, Loop Protection Upgrade & Restore TFTP for Configuration Import / Export and TFTP for Firmware Upgrade Diagnostic Syslog, Level Info / Warning / Error Port Mirror, Per VLAN mirroring, CPU Load Monitor, Traffic Counter ICMP Ping DHCP...

  • Page 33: Mechanical Specification

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 7.4. Mechanical Specification Table 9: Mechanical Specification Mechanical 6-port 9-port Dimensions (H x D x W) 138 mm x 118.2 mm x 57 mm Weight 1.03 kg Protection IP30 Installation DIN-Rail, Wall Mount...

  • Page 34: Power Specification

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 7.5. Power Specification The switch supports dual power inputs. The external power supplies used must fulfill the specified electrical ratings in this user guide and comply with the safety requirements of UL/IEC 62368-1. Table 10: Electrical Specification Power 6-port...

  • Page 35: 8/ Web Interface

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 8/ Web Interface The KSwitch D4 MF managed industrial Ethernet switch supports IE, Firefox, and Chrome. The Web Interface configuration features Administrator, Basic Configuration, VLAN Configuration, QoS Configuration, ACL Configuration, Security, Advanced Features and Monitoring.

  • Page 36: Setting Up The Console Port

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 8.2. Setting Up the Console Port The console port enables local management using a terminal emulator or a computer with terminal emulation software. To connect a host PC to the console port connector, use the console cable (RJ45 to USB Type A) to connect the switch’s RJ45 console port to the host PC’s USB port.
  • Page 37 KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 Set up the “Tera Term” software by selecting the <Serial Port> and choosing the prolific COM port. Click <OK>. In the pop up Window select <SETUP> and click on <Serial Port>. Within the “Tera Term”...

  • Page 38: Administrator

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 8.3. Administrator 8.3.1. System Information System Information gives an overview of important system information such as Ethernet Switch MAC Address, Firmware Version, Uptime, Device Name, Comment, Location and Contact Information for the KSwitch D4 MF managed industrial Ethernet switch.

  • Page 39: Account User Name And Password

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 8.3.2. Account User Name and Password Users are required to input User Name and Passport. Login with a default account and password  Username: admin  Password: admin Administrator ->...

  • Page 40: Ip Configuration

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 8.3.3. IP Configuration IP Configuration allows users to configure IPv4 Address and IPv6 Address or allocated random value by DHCP Server. 8.3.3.1. IPv4 Administrator -> IP Configuration -> IPv4 Only numbers ranging from 0~9 are allowed.
  • Page 41 KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 8.3.3.2. IPv6 Administrator -> IP Configuration -> IPv6 Only numbers from “0 to 9” and letters ranging from “a to f” are allowed. Parameter Description IPv6 Address Configure IPv6 Address Subnet Prefix Length Configure IPv6 Subnet Prefix Length Default Gateway...

  • Page 42: 9/ Settings And Configuration

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9/ Settings and Configuration This chapter lists the available configuration options. In order to use and troubleshoot any managed switch properly and efficiently, training and experience is unavoidable. Kontron does not offer a general switch training, in particular not for beginners.

  • Page 43: Snmp Group Table

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.1.2. SNMP Group Table Administrator -> SNMP Settings -> SNMP Group Table Parameter Description Group Name Create New Group Name, limited to 20 letters Read View Configure Read View Authorization Write View Configure Write View Authorization Notify View...

  • Page 44: Snmp Community Table

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.1.4. SNMP Community Table Administrator -> SNMP Settings -> SNMP Community Table Parameter Description Community Name Create New SNMPv1 / SNMPv2 Community Name, limited to 20 letters Access Group Configure New Access Group 9.1.5.

  • Page 45: Snmp Configuration

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.1.6. SNMP Configuration Administrator -> SNMP Settings -> SNMP Configuration Parameter Description SNMP State Enable / Disable SNMP Function SNMP Trap Enable / Disable SNMP Trap Function SNMP Link Change Traps Enable / Disable SNMP Link Change Traps Port Selection Configure Port Link Control...

  • Page 46: Ntp Settings

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.2. NTP Settings The Network Time Protocol (NTP) page enables time calibration. Administrator -> NTP Settings Parameter Description System Time Display System Time State Enable / Disable NTP Function Time Zone Configure Time Zone Primary Server IP...

  • Page 47: Syslog Settings

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.3. Syslog Settings This page allows to Configure Syslog. Administrator -> Syslog Settings Parameter Description Syslog state Enable Syslog Name Protocol State Enable / Disable Protocol Facility Configure Local Number Server Info.

  • Page 48: Load Factory Default

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.4. Load Factory Default This page allows the switch to return to the original configuration. Administrator -> Load Factory Default Loading Factory Default Setting will only reset the switch’s series functions. It will not affect Username, Password, and IP Address.

  • Page 49: Configuration Backup Or Recover

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.5. Configuration Backup or Recover This page provides the administrator with a method to back up or recover the switch configuration. Users may use the Backup Feature to create a file call current.tar.gz. To restore to previous setting, the user may upload current.tar.gz in the Restore Feature.

  • Page 50: Firmware Update

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.6. Firmware Update This page allows user to update the latest version of KSwitch D4 MF series firmware. Locate the name of the firmware file then click “Apply” to proceed with Firmware Update. 9.6.1.

  • Page 51: Port Management

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.7. Port Management 9.7.1. Port Configuration This page enables users to configure individual port such as Power up / down, Speed, Duplex, Auto-Negotiation, Flow Control, Address Learning, and Port Name. Basic Configuration ->...

  • Page 52: Port Mirror Function

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.7.2. Port Mirror Function This page is operated utilizing features such as Source Ports and Destination Ports to monitor and manage streaming bandwidth. Basic Configuration -> Port Mirror Function Parameter Description Source Port Selection...

  • Page 53: Broadcast Storm Protection

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.7.3. Broadcast Storm Protection This page allows user to manage individual ports by configuring Broadcast, Multicast, ARP and ICMP. The threshold is valid up to 255. Basic Configuration -> Broadcast Storm Protection Parameter Description Type...

  • Page 54: Bandwidth Control

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.7.4. Bandwidth Control This page allows user to configure the bandwidth for each port. Factory default is configured to highest bandwidth. Basic Configuration -> Bandwidth Control Parameter Description Port Selection Selecting Corresponding Port Ingress Rate...

  • Page 55: Vlan Configuration

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.8. VLAN Configuration Virtual LAN allows user to configure the ports as a group to save switch bandwidth and increase network performance. KSwich D4 MF series support both IEEE 802.1Q and Port-Based VLAN, the untag function can remove 802.1Q tag from the packet to ensure compatibility with devices which do not support 802.1Q.

  • Page 56: Vlan Group-Based Entry Configuration

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.8.2. VLAN Group-based Entry Configuration VLAN Configuration -> VLAN Group-based Entry Configuration Parameter Description Group Name Configure Group VLAN Name Group Member Port Configure Group VLAN Member Create New Group VLAN Edit Editing Group VLAN Modify...

  • Page 57: Tag Vlan Webpage

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.8.4. Tag VLAN Webpage VLAN Configuration -> Tag VLAN Webpage Parameter Description VLAN Name Name of Tag VLAN Tag VLAN VID Priority Configure Tag VLAN Priority GVRP forward GVRP enable, define if Tag VLAN transmit through GVRP VLAN Member Configure Tag VLAN member...

  • Page 58: Vlan Port Configuration

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.8.5. VLAN Port Configuration VLAN Configuration -> VLAN Port Configuration Parameter Description Port Selection Select corresponding port PVID Configure Port VID Tagging Configure the selected Port to add or remove VLAN Tag for transmit packet Force VLAN Group Define if follow Group VLAN setting first.

  • Page 59: Protocol Vlan Configuration

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.8.6. Protocol VLAN Configuration VLAN Configuration -> Protocol VLAN Configuration Parameter Description Protocol VLAN enable Protocol VLAN On / Off Enable check box Select entry Configure VID, when the packet meet selected Protocol, will be based on this VID to check VLAN Member Protocol type Configure Protocol type...

  • Page 60: Qinq Index Configuration

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 Parameter Description Port Selection Select corresponding port Index Select Index, the Service tag of this index can be set in QinQ Index Config webpage. Tagging Add: Add Service Tag on the packet, if the Service Tag already exist on packet, will be based on Rx detect status to modify or replace Service tag.

  • Page 61: Qos Configuration

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.9. QoS Configuration The Quality of Service (QoS) is IEEE 802.1p allows users to define the priority of specific packet(s) to ensure the performance and bandwidth. 9.9.1. QoS Group Member QoS Configuration ->...

  • Page 62: Qos Out Queue Aging

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 Parameter Description Queue Mode Selects QoS mode of each group: First-In-First-Out SPx1+WRR/WFQ/BW/TWRRx7 SPx2+WRR/WFQ/BW/TWRRx6 SPx4+WRR/WFQ/BW/TWRRx4 SPx8 Queue Method Selects Queue method： WRR: Weighted Round Robin WFQ: Weighted Fair Queue Bwassure - Dynamic Bandwidth Management Bwlimit- Static Bandwidth Management TWRR: Time Weighted Rate Return...

  • Page 63: Qos Remap

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 Parameter Description Out Queue Aging Time Configure Queue Aging Time Fast Aging Time Enable Aging Time Unit Conversion, from 100ms to 1.638ms Port Select Select corresponding ports Q0 ~ Q7 Select the queue to enable Out Queue Aging Time 9.9.4.

  • Page 64: Class Of Service

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.9.5. Class of Service QoS Configuration -> Class of Service This Class of Service Priority Level： ACL > IGMP > IP Addr > MAC Addr > VID > TCP/UDP Port > DSCP > 802.1p > Physical Port Parameter Description Port Selection...

  • Page 65: Base

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.9.6. 802.1q Base QoS Configuration -> 802.1q Base Parameter Description Earlier Edition Select earlier version 2005 Edition Select 2005 version Exchange the priority Exchange the weights 9.9.7. DSCP Base QoS Configuration ->...

  • Page 66: Tcp/Udp Port Base

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.9.8. TCP/UDP Port Base QoS Configuration -> TCP/UDP Port Base Parameter Description Protocol TCP/UDP protocol Priority Select the queue of each TCP/UDP protocol User defined A Configure TCP/UDP port number User defined B Configure TCP/UDP port number User defined C...

  • Page 67: Acl Configuration

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.10. ACL Configuration The KSwitch D4 MF Switch series has 128 ACL Entry that allows users to configure base of preference.  ACL Profile List  ACL Ctag Settings ...
  • Page 68 KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 ACL Profile Configuration – MAC ACL Profile Configuration- IP ACL Profile Configuration – IP Extension www.kontron.com // 68...
  • Page 69 KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 ACL Profile Configuration – IPv6 ACL Profile Configuration –> Advanced Parameter Description Source MAC Address Input Source MAC Address Source MAC Mask Select Source MAC > Mask > Select FF:FF:FF:FF:FF:FF ;...

  • Page 70: Action Drop Types

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 Parameter Description Destination IP Mask Select Destination IP> Mask > Select 255.255.255.255, 255.255.255.240, 255.255.255.0, 255.255.240., 255.255.0.0, 255.0.0.0 and 240.0.0.0 Source Port Input Source Port, can be a specific number or a range Destination Port Input Destination Port, can be a specific number or a range Input VID, from 1~4094...
  • Page 71 KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 Action Type 3 Action Type 4 Parameter Description Redirect Configure redirecting to another port Priority Configure Priority, parameter limited to 0~7 DSCP Configure DSCP Index, Transmits DSCP value base on ACL DSCP Settings Configuration.

  • Page 72: Acl Ctag Settings

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.10.3. ACL Ctag Settings ACL Configuration -> ACL Ctag Settings 9.10.4. ACL Stag Settings ACL Configuration -> ACL Stag Settings www.kontron.com // 72...

  • Page 73: Acl Vlan Settings

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.10.5. ACL VLAN Settings ACL Configuration -> ACL VLAN Settings 9.10.6. ACL Bandwidth Settings ACL Configuration -> ACL Bandwidth Settings www.kontron.com // 73...

  • Page 74: Acl Dscp Settings

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.10.7. ACL DSCP Settings ACL Configuration -> ACL DSCP Settings www.kontron.com // 74...

  • Page 75: Security

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.11. Security 9.11.1. Port-MAC-IP Binding The Port-MAC-IP Binding supports IPv4/IPv6, through source IP/MAC check to improve security and filtering. 9.11.2. Port-MAC-IP Port Setting Security -> Port-MAC-IP Binding -> Port-MAC-IP Port Setting Parameter Description Port Selection...

  • Page 76: Port-Mac-Ip Entry Setting

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.11.3. Port-MAC-IP Entry Setting Security -> Port-MAC-IP Binding -> Port-MAC-IP Entry Setting Parameter Description IPv4/IPv6 Select IPv4 or IPv6 and input IP Address IMP Entry Management Click “edit” icon to modify IMP entry in IP Table Monitor IMP Entry IP Address Check port Enable/Disable source port checking...

  • Page 77: Mac Address Binding

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 DHCP Snooping Enable / Disable DHCP snooping feature ARP Inspection Enable / Disable ARP inspection feature MAC Verification Enable / Disable MAC verification feature 9.11.5. MAC Address Binding This feature allows users to drop, mirror and forward packets to CPU port when source MAC is not match MAC binding list.
  • Page 78 KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 Parameter Description Port Configure Binding MAC Address Port Drop When source MAC of received packet match Mac entry, packet is dropped. Sniffer1 When source MAC of received packet match Mac entry, packet is forwarded to Destination Port defined in Port Mirror.

  • Page 79: Advanced Features

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.12. Advanced Features 9.12.1. Spanning Tree Protocol (STP) Spanning Tree Protocol (STP) is a layer 2 protocol base on OSI model, this feature ensures a loop free Ethernet Network to avoid broadcast storm, prevent repeated packet and MAC address table trashing.
  • Page 80 KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.12.1.2. MST Port Settings Advanced Features -> Spanning Tree Protocol -> MST Port Settings Parameter Default Description Configuration Name SWITCH Configure name, is MSTI (Multiple Spanning Tree Instance) only ID. Revision Level(0-65535) Configure revision level to identify if in the same MSTP region...
  • Page 81 KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.12.1.3. STP Instance Settings Advanced Features -> Spanning Tree Protocol -> STP Instance Settings 9.12.1.4. MSTP Port Information Multiple Spanning Tree Protocol (MSTP) provides connectivity assigned to any given Virtual LAN (VLAN) throughout a Bridged Local Area Network.

  • Page 82: Trunk & Link Aggregation

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.12.2. Trunk & Link Aggregation Trunk Group combines several specific ports and use load balance design to achieve higher bandwidth and performance. KSwitch D4 MF series supports four FE groups and two Gigabit Ethernet groups, Each FE trunk group includes a maximum of four members, Gigabit group includes two members.

  • Page 83: Igmp Snooping

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.12.3. IGMP Snooping Internet Group Management Protocol (IGMP) Snooping is not a protocol feature and takes place internally on switches. IGMP snooping allows a switch to only forward multicast traffic to the links that have requested them: ...
  • Page 84 KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.12.3.2. IGMP Snooping Router Ports Settings Advanced Features -> IGMP Snooping -> IGMP Snooping Router Ports Settings Parameter Description IGMP Snooping Static Router Ports Configure static router ports IGMP Snooping Dynamic Router Ports Display static router ports 9.12.3.3.

  • Page 85: Igmp Snooping Ports

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.12.3.4. IGMP Snooping Ports Advanced Features -> IGMP Snooping -> IGMP Snooping Ports Parameter Description IGMP Snooping Port Information Displays group information of selected port www.kontron.com // 85...

  • Page 86: Mld Snooping

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.12.4. MLD Snooping Multicast Listener Discovery (MLD) Snooping is used for discovering multicast listeners on a directly attached link. using MLD Snooping (Settings, Router Ports Settings, Groups and Ports). 9.12.4.1.
  • Page 87 KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.12.4.3. MLD Snooping Groups Advanced Features -> MLD Snooping -> MLD Snooping Groups Parameter Description MLD Snooping Static Group Configuration Configures static group and members MLD Snooping Group Information Displays current group status 9.12.4.4.

  • Page 88: Dhcp Relay Agent

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.12.5. DHCP Relay Agent The Dynamic Host Configuration Protocol (DHCP) Relay Agent forwards DHCP requests to the designated DHCP server. Advanced Features -> DHCP Relay Agent Parameter Default Description DHCP Relay-Agent State Enable/Disable DHCP Relay-Agent...

  • Page 89: Loop Detect

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.12.6. Loop Detect Loop Detect is the ability to detect when a loop occurs within a switch. When loop detection is activated, the port that is causing loop will be blocked in order to prevent from crashing the network. Advanced Features ->...

  • Page 90: Gvrp

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.12.7. GVRP GVRP (Generic VLAN Registration Protocol) is a protocol that facilitates control of VLANs, through several messages (Join, Leave and LeaveAll) exchanging, this allows network devices to dynamically exchange VLAN configuration information with other devices.

  • Page 91: Neighbor Macid

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.12.8. Neighbor MACID Neighbor MACID is to find out Neighbor switch’s MAC ID, based on select send period to transmit Neighbor Info packet, when switch receive Neighbor Info packet, will save and update MAC ID and Aging time, by using UDP NetCmd, can get Switch Neighbor MAC ID information.

  • Page 92: Monitoring

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.13. Monitoring 9.13.1. MIB Counter The MIB Counter provides the calculated data of packet number & bytes of each port. Monitoring -> MIB Counter Parameter Description Port No. Port number Receive The data of received packets and bytes...

  • Page 93: Mib Counter Detail

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.13.2. MIB Counter Detail The MIB counter detail provides more detailed information regarding the data packet. Monitoring -> MIB Counter -> Detail Parameter Description Type Packet type Receive The data of received packets Transmit The data of transmitted packets...

  • Page 94: Scan Macid Lookup Table

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.13.3. Scan MACID Lookup Table The Scan MACID Lookup Table displays the MAC Address for every port and enables users to delete the Lookup Table’s MAC Address. Monitoring -> Scan MACID Lookup Table Parameter Description Port Selection...

  • Page 95: Syslog

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 9.13.4. Syslog The syslog provides the configuration history of the switch manager. Monitoring -> Syslog Parameter Description Refresh Update system history www.kontron.com // 95...

  • Page 96: 10/ Maintenance

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 Maintenance The switch contains no user serviceable parts. Maintenance or repair on the switch may only be carried out by qualified personnel authorized by Kontron. Return the switch to Kontron for maintenance and repair, see Chapter 11.1: Returning Defective Merchandise. The switch contains no user serviceable parts.

  • Page 97: 11/ Technical Support

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 11/ Technical Support For technical support contact our Support Department:  E-mail: support@kontron.com  Phone: +49-821-4086-888 Make sure you have the following information available when you call:  Product ID Number (PN), ...

  • Page 98: 12/ Warranty

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 Warranty Kontron defines product warranty in accordance with regional warranty definitions. Claims are at Kontron’s discretion and limited to the defect being of a material nature. To find out more about the warranty conditions and the defined warranty period for your region, following the steps below: Visit Kontron’s Term and Conditions webpage.

  • Page 99: List Of Acronyms

    KSwitch D4 MF Managed Fast Ethernet Switch - User Guide, Rev. 1.0 List of Acronyms Table 11: List of Acronyms Alternating Current Network Time Protocol Access Control List Powered Device BPDU Bridge Protocol Data Unit Part Number Code of Federal Regulations Power over Ethernet Direct Current Power Source 2...

  • Page 100: About Kontron

    KSwitch D4 MF Managed Fast Ethernet Switch – User Guide, Rev. 1.0 About Kontron Kontron is a global leader in IoT/Embedded Computing Technology (ECT). As a part of technology group S&T, Kontron, together with its sister company S&T Technologies, offers a combined portfolio of secure hardware, middleware and services for Internet of Things (IoT) and Industry 4.0 applications.
