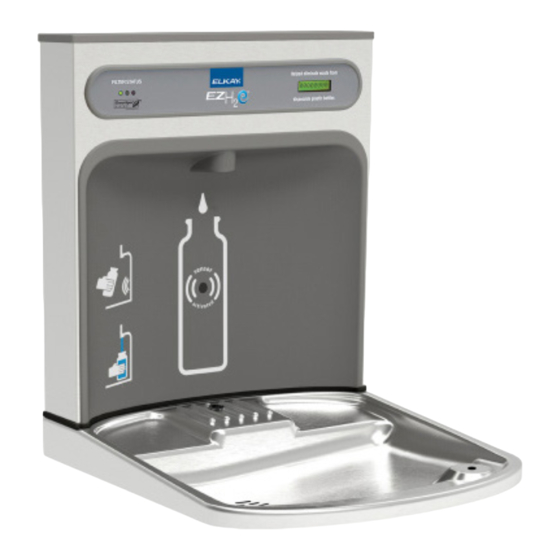

Elkay ezH2O EZWSR 1D Series Installation & Use Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
EZWSRK - ezH2O
LZWSRK - ezH2O
IMPORTANT! INSTALLER PLEASE NOTE.
THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES
IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM
THE BUILDING. THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK INTO A FOUNTAIN, CREATING AN
ELECTROLYSIS WHICH CAUSES A METALLIC TASTE OR AN INCREASE IN THE METAL CONTENT OF THE
WATER. THIS CONDITION IS AVOIDABLE BY USING THE PROPER MATERIALS AS INDICATED. ANY DRAIN
FITTINGS PROVIDED BY THE INSTALLER SHOULD BE MADE OF PLASTIC TO ELECTRICALLY ISOLATE THE
FOUNTAIN FROM THE BUILDING PLUMBING SYSTEM. WE SUGGEST THAT THE BOTTLE FILLING STATION
AND WATER COOLER BE PROTECTED BY A GROUND FAULT CIRCUIT INTERRUPTER (GFCI).
INSTALLER
EZWSR / LZWSR Bottle Fillers are among the easiest to install on the market today.
To insure you install these models easily and correctly, PLEASE READ THESE
SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK
YOUR INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL, AND
OTHER APPLICABLE CODES. After installation, leave these instructions with the
Cooler for future reference.
EZWSR*1D, *2D
LZWSR*1D, *2D
R
-F
®
ETRO
R
-F
®
ETRO
THIS IS AN INDOOR APPLICATION ONLY.
ALL SERVICE TO BE PERFORMED BY AN
SAFETY GLASSES
GLOVES
3/4" WRENCH OR CRESCENT
WRENCH
5/16" NUT DRIVER
UTILITY KNIFE
TAPE MEASURE
PENCIL
CENTER PUNCH
1/2" SOCKET & RATCHET WRENCH
5/32" ALLEN WRENCH
7/64" ALLEN WRENCH
Page 1
WWW.RESTROOMDIRECT.COM
INSTALLATION & USE MANUAL
B
F
IT
OTTLE
ILLING
B
F
IT
OTTLE
ILLING
IMPORTANT
AUTHORIZED SERVICE PERSON.
TOOLS REQUIRED
BUT NOT PROVIDED:
704 • 937• 2673
129 Oakpark Dr., Unit A, Mooresville, NC 28115
U
NIT
U
NIT
1000004729 (Rev. A - 09/18)

Advertisement

loading
Need help?

Need help?

Do you have a question about the ezH2O EZWSR 1D Series and is the answer not in the manual?

Questions and answers

Related Manuals for Elkay ezH2O EZWSR 1D Series

Summary of Contents for Elkay ezH2O EZWSR 1D Series

  • Page 1 EZWSR*1D, *2D LZWSR*1D, *2D INSTALLATION & USE MANUAL EZWSRK - ezH2O ® ETRO OTTLE ILLING LZWSRK - ezH2O ® ETRO OTTLE ILLING IMPORTANT THIS IS AN INDOOR APPLICATION ONLY. ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON. TOOLS REQUIRED BUT NOT PROVIDED: SAFETY GLASSES GLOVES...
  • Page 2 EZWSR*1D, *2D LZWSR*1D, *2D WATER COOLER PREPARATION 1) Remove lower front panel of watercooler by removing the four (4) screws from the bottom of cooler. (See Fig. 1) NOTE: For Bi-Level Models the Bottle Filling Unit can be mounted to the higher or lower unit. Both lower front panels and basin assemblies will need to be removed.
  • Page 3 EZWSR*1D, *2D LZWSR*1D, *2D Fig. 2 Page 3 1000004729 (Rev. A - 09/18) WWW.RESTROOMDIRECT.COM 704 • 937• 2673 129 Oakpark Dr., Unit A, Mooresville, NC 28115...
  • Page 4 EZWSR*1D, *2D LZWSR*1D, *2D Fig. 3 1000004729 (Rev. A - 09/18) Page 4 WWW.RESTROOMDIRECT.COM 704 • 937• 2673 129 Oakpark Dr., Unit A, Mooresville, NC 28115...
  • Page 5 EZWSR*1D, *2D LZWSR*1D, *2D Fig. 4 Page 5 1000004729 (Rev. A - 09/18) WWW.RESTROOMDIRECT.COM 704 • 937• 2673 129 Oakpark Dr., Unit A, Mooresville, NC 28115...
  • Page 6 EZWSR*1D, *2D LZWSR*1D, *2D Fig. 5 1000004729 (Rev. A - 09/18) Page 6 WWW.RESTROOMDIRECT.COM 704 • 937• 2673 129 Oakpark Dr., Unit A, Mooresville, NC 28115...
  • Page 7 EZWSR*1D, *2D LZWSR*1D, *2D Solenoid Valve Water Inlet Evaporator 3/8” Water Inlet Bubbler 3/8” Water Line from Bottle Filling Unit Tube Insulation Evaporator Bubbler 3/8” To 1/4” Union Tube Insulation EZ Non-Pressurized Plumbing Diagram Solenoid Valve Fig. 6 EZ Plumbing Diagram after Pressurization Modifications Fig.
  • Page 8 EZWSR*1D, *2D LZWSR*1D, *2D Plumbing Diagrams for EZ Coolers w/model no’s ending with 1, 1A, 2, & 3 Water Inlet Bubbler Solenoid Valve Evaporator 3/8” Water Inlet Bubbler Regulator Regulator Solenoid Valve Evaporator 3/8” Water Line from Bottle Filling Unit Tube Insulation 3/8”...
  • Page 9 EZWSR*1D, *2D LZWSR*1D, *2D Solenoid Valve 3/8” Water Inlet Water Inlet Filter Assembly Bubbler 1/4” Union Evaporator 3/8” Water Line from Bottle Filling Unit Evaporator Tube Insulation Bubbler EZ Non-Pressurized Plumbing Diagram Tube Insulation Fig. 6D Solenoid Valve EZ Plumbing Diagram after Filter Installation &...
  • Page 10 EZWSR*1D, *2D LZWSR*1D, *2D Plumbing Diagrams for EZ Coolers w/model no’s ending with 1, 1A, 2, & 3 Water Inlet 3/8” Water Inlet Solenoid Valve Bubbler Bubbler 1/4” Union Evaporator Regulator Regulator Evaporator Solenoid Valve 3/8” Water Line from Bottle Filling Unit Tube Insulation EZ Non-Pressurized EZ Plumbing Diagram...
  • Page 11 EZWSR*1D, *2D LZWSR*1D, *2D BASIN ASSEMBLY FILTER ASSEMBLY SCREWS SCREWS SCREWS EWF3000 Filter Location Basin Assembly Removal Fig. 9 Fig. 8 BASIN ASSEMBLY PREPARATION 1) Remove (4) screws from basin/shroud assembly. Separate basin from shroud. 2) Remove bubbler. 3) Install bubbler on new basin. 4) Remove drain tail piece from rubber boot that is attached to the shroud.
  • Page 12 EZWSR*1D, *2D LZWSR*1D, *2D FIVE PIN CONNECTOR FOUR PIN MAIN BOARD CONNECTOR PIGGY BACK TERMINAL ON POWER CORD WHITE I.R. BOARD SOLENOID YELLOW LED BOARD (For Filtered Model) VIOLET CONNECTOR VIOLET TO UNIT SOLENOID CONNECTOR YELLOW TO L.H. SOLENOID YELLOW TO GROUND BILEVEL SOLENOID (For Bi-Level Model)
  • Page 13 EZWSR*1D, *2D LZWSR*1D, *2D MOUNTING 7/16” BOLT HOLES FOR SCREWS FASTENING UNIT TO WALL TOP COVER UNIT CENTER LINE Fig. 13 Fig. 12 BOTTLE FILLING UNIT Fig. 14 WALL MOUNTING PLATE BOTTLE FILLER INSTALLATION 1) Remove two (2) mounting screws with 5/32” Allen wrench holding top cover to Bottle Filler (See Fig. 13). Remove top cover. Note do not discard mounting screws, they will be needed to reinstall top cover.
  • Page 14 EZWSR*1D, *2D LZWSR*1D, *2D BOTTLE FILLER GASKET Fig. 15 Fig. 16 1000004729 (Rev. A - 09/18) Page 14 WWW.RESTROOMDIRECT.COM 704 • 937• 2673 129 Oakpark Dr., Unit A, Mooresville, NC 28115...
  • Page 15 EZWSR*1D, *2D LZWSR*1D, *2D WIRING MODIFICATION FOR NON-REFRIGERATED UNIT IN A BI-LEVEL COOLER IF BOTTLE FILLER COUNTER CONTINUOUSLY ADVANCES 1) DISCONNECT POWER TO ALL UNITS BEFORE PROCEEDING! 2) Disconnect ribbed wire (powercord) from the switch wire (from pushbar), add the female to female adapter to wire. 3) Remove the smooth larger black wire (powercord) from the solenoid valve.
  • Page 16 EZWSR*1D, *2D LZWSR*1D, *2D PLUMBING DIAGRAMS VERSATILE BI-LEVEL Barb capped when not used Bottle Filler Drain Bottle Filler Drain Barb capped when not used Bottle Filler Drain Barb capped when not used Bottle Filler Drain Barb capped when not used 1000004729 (Rev.
  • Page 17 EZWSR*1D, *2D LZWSR*1D, *2D BF11 - BF12 PROGRAM SETTING THE CONTROL BOARD VERIFY CONTROL BOARD SOFTWARE Continued from below: 1) To verify the software program of the control board the unit will 2) When the display changes to “SETTINGS”, depress the button again. need to be shut down and restarted.

  • Page 18: Filter Assembly

    EZWSR*1D, *2D LZWSR*1D, *2D 1-3/8" Dia. Hole 3/8" Dia. Pilot Hole 2.25 1.75 3/16" Dia. Hole 2.00 3.75 Bottom View of Cooler Fig. 18 SCREWS PLASTIC BUSHING SCREWS FILTER MOUNTING BRACKET FILTER ASSEMBLY 3/8” WATER INLET Alternate Filter Mounting Location Fig. 19 ALTERNATE FILTER MOUNTING LOCATION 1) Drill one 3/8”...

  • Page 19: Replacement Part Kits

    PRINTED IN U.S.A. FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.834.4816 REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640 ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484 • www.elkay.com Page 19 1000004729 (Rev. A - 09/18) WWW.RESTROOMDIRECT.COM...
