Installation and Use Manual
ezH2O
Installer
To assure you install this model easily and correctly, PLEASE READ THESE
SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK
YOUR INSTALLATION FOR COMPLIANCE WITH ALL PLUMBING, ELECTRICAL
AND OTHER APPLICABLE CODES. FOLLOW ALL WARNINGS AND CAUTIONS
CAREFULLY. After installation, leave these instructions with the customer for future
reference.
Warnings
1. Use with clean, clear, fresh potable drinking water only! Do not use with water that is microbiologically
unsafe or of unknown quality without adequate disinfection before the system.
2. Connect Power Cord only to a grounded three prong electrical outlet with electrical power that:
a. MUST be rated for this product as specified on product data label.
b. MUST have over-current protection (e.g. Fuse, Breaker).
c. MUST have Ground Fault Circuit Interrupt protection (GFCI).
d.
These products are designed to operate on 20 to 105 PSI supply line pressure. If inlet pressure is
above 105 PSI, a pressure regulator must be installed in supply line. Any damage caused
by reason of connecting this product to supply line pressure lower than 20 PSI or higher than
105 PSI is not covered by warranty
EZWSSM-1A, EZWSSMJO-2A, LZWSSM-1A, LZWSSMJO-2A

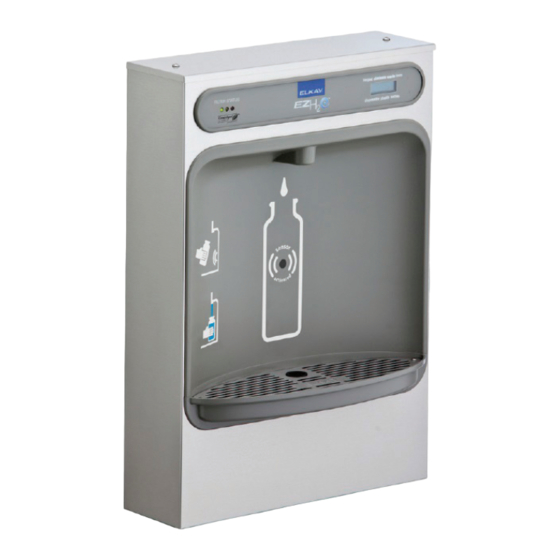

Surface Mount Bottle Filling Station
®
Model
LZWSSM
.
IMPORTANT
THIS IS AN INDOOR APPLICATION ONLY!
ALL SERVICE TO BE PERFORMED BY AN
AUTHORIZED SERVICE PERSONNEL.
TOOLS/ITEMS REQUIRED
BUT NOT SUPPLIED
- SERVICE STOP VALVE WITH 3/8"
COMPRESSION OUTLET
- FASTENERS FOR WALL TYPE (8 REQ'D.)
- SLIP JOINT DRAIN UNION OR
COMPRESSION CLAMP
- 5/32" HEX-WRENCH
Page 1
2000000494 (Rev. A - 01/22)

Advertisement

loading
Need help?

Need help?

Do you have a question about the ezH2O EZWSSM-1A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elkay ezH2O EZWSSM-1A

Summary of Contents for Elkay ezH2O EZWSSM-1A

  • Page 1 EZWSSM-1A, EZWSSMJO-2A, LZWSSM-1A, LZWSSMJO-2A Installation and Use Manual ezH2O Surface Mount Bottle Filling Station ® IMPORTANT THIS IS AN INDOOR APPLICATION ONLY! ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSONNEL. TOOLS/ITEMS REQUIRED BUT NOT SUPPLIED - SERVICE STOP VALVE WITH 3/8" COMPRESSION OUTLET - FASTENERS FOR WALL TYPE (8 REQ’D.) - SLIP JOINT DRAIN UNION OR...
  • Page 2 EZWSSM-1A, EZWSSMJO-2A, LZWSSM-1A, LZWSSMJO-2A 17-15/16” (455mm) 8-3/16” 7” 7” (208mm) (178mm) (178mm) 5-3/8” (136mm) ACTIVATION SENSOR 9-1/2” (241mm) D OPTIONAL (3 PL) 25-7/16” DRAIN TRAP 2-7/8” (647mm) CUSTOMER (73mm) SUPPLIED 12” (305mm) 46-7/16” (1179mm) 3 1/16" 78mm 40-1/4” (1022mm) 34-7/16” (875mm) 8-7/8”...

  • Page 3: Installation Instructions

    EZWSSM-1A, EZWSSMJO-2A, LZWSSM-1A, LZWSSMJO-2A INSTALLATION INSTRUCTIONS Pre-Installation (reference Rough-In, Fig. 1, Page 2) 1. Ensure Wall is structurally sound to bear the loads imparted by the ezH2O Surface Mount Bottle Filling ® Station (On-Wall Bottle Filler). If necessary, install a Wall Support Carrier (not supplied). 2.
  • Page 4 EZWSSM-1A, EZWSSMJO-2A, LZWSSM-1A, LZWSSMJO-2A Plumbing Connections • Ensure lines and ports remain clean and free of contaminants during assembly. • Purge each component if necessary. • To ensure quick-connect connections seal properly, follow instructions per Figure 2, Page 2. Connect Plumbing Lines 1.
  • Page 5 EZWSSM-1A, EZWSSMJO-2A, LZWSSM-1A, LZWSSMJO-2A BF9 PROGRAM SETTING THE CONTROL BOARD VERIFY CONTROL BOARD SOFTWARE SETTING UNIT TYPE 1) To verify the software program of the control board the unit will 1) Depress the program button for approximately 2 seconds need to be shut down and restarted. The chiller (if present) does not until the display changes then release.
  • Page 6 EZWSSM-1A, EZWSSMJO-2A, LZWSSM-1A, LZWSSMJO-2A BF11 - BF12 PROGRAM SETTING THE CONTROL BOARD VERIFY CONTROL BOARD SOFTWARE Continued from below: 1) To verify the software program of the control board the unit will 2) When the display changes to “SETTINGS”, depress the button again. need to be shut down and restarted.

  • Page 7: Parts List

    FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.834.4816 PRINTED IN U.S.A. REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640 ELKAY MANUFACTURING COMPANY • 1333 BUTTERFIELD ROAD SUITE 200 DOWNERS GROVE, IL 60515 • 630.574.8484 • www.elkay.com 2000000494 (Rev. A - 01/22) Page 7...
