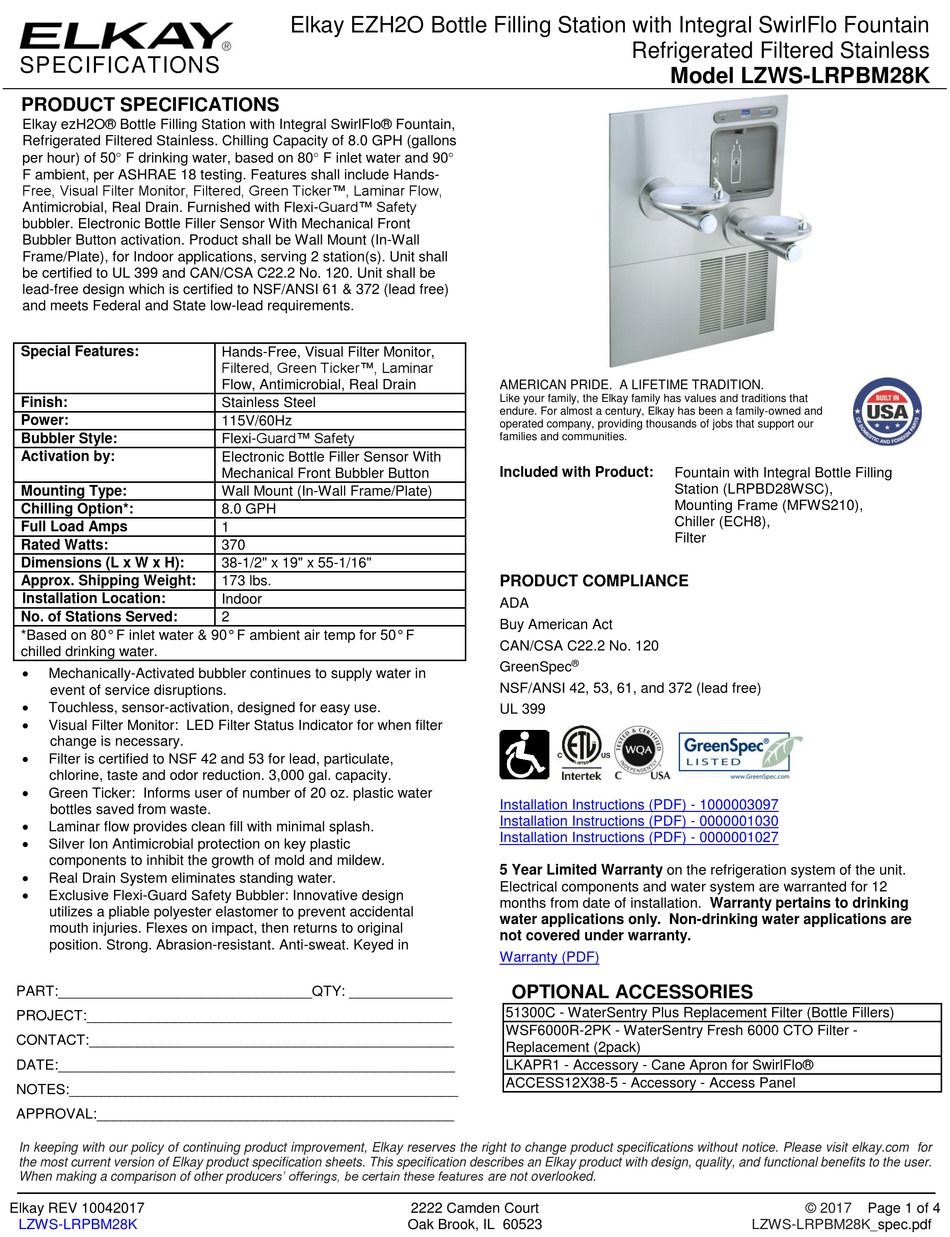

SPECIFICATIONS

PRODUCT SPECIFICATIONS

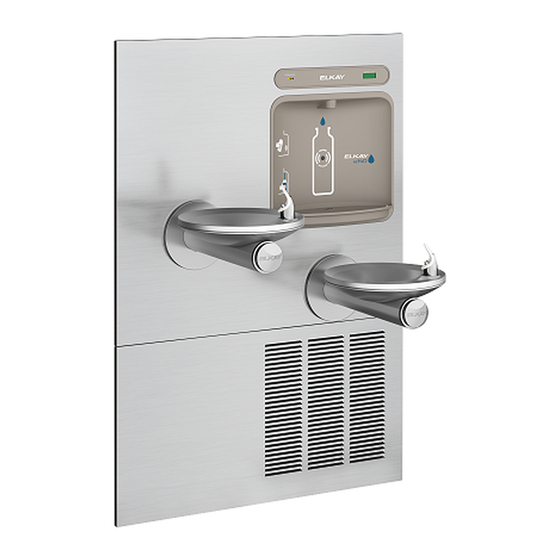

Elkay ezH2O® Bottle Filling Station with Integral SwirlFlo® Fountain,
Refrigerated Filtered Stainless. Chilling Capacity of 8.0 GPH (gallons
per hour) of 50 F drinking water, based on 80 F inlet water and 90
F ambient, per ASHRAE 18 testing. Features shall include Hands-
Free, Visual Filter Monitor, Filtered, Green Ticker™, Laminar Flow,
Antimicrobial, Real Drain. Furnished with Flexi-Guard™ Safety
bubbler. Electronic Bottle Filler Sensor With Mechanical Front
Bubbler Button activation. Product shall be Wall Mount (In-Wall
Frame/Plate), for Indoor applications, serving 2 station(s). Unit shall
be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be
lead-free design which is certified to NSF/ANSI 61 & 372 (lead free)
and meets Federal and State low-lead requirements.

Special Features:

Finish:
Power:
Bubbler Style:
Activation by:
Mounting Type:
Chilling Option*:
Full Load Amps
Rated Watts:
Dimensions (L x W x H):
Approx. Shipping Weight:
Installation Location:
No. of Stations Served:
*Based on 80° F inlet water & 90° F ambient air temp for 50° F
chilled drinking water.
Mechanically-Activated bubbler continues to supply water in
event of service disruptions.
Touchless, sensor-activation, designed for easy use.
Visual Filter Monitor: LED Filter Status Indicator for when filter
change is necessary.
Filter is certified to NSF 42 and 53 for lead, particulate,
chlorine, taste and odor reduction. 3,000 gal. capacity.
Green Ticker: Informs user of number of 20 oz. plastic water
bottles saved from waste.
Laminar flow provides clean fill with minimal splash.
Silver Ion Antimicrobial protection on key plastic
components to inhibit the growth of mold and mildew.
Real Drain System eliminates standing water.
Exclusive Flexi-Guard Safety Bubbler: Innovative design
utilizes a pliable polyester elastomer to prevent accidental
mouth injuries. Flexes on impact, then returns to original
position. Strong. Abrasion-resistant. Anti-sweat. Keyed in
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com for
the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the user.
When making a comparison of other producers' offerings, be certain these features are not overlooked.
Elkay REV 10042017
LZWS-LRPBM28K
Elkay EZH2O Bottle Filling Station with Integral SwirlFlo Fountain
Hands-Free, Visual Filter Monitor,
Filtered, Green Ticker™, Laminar
Flow, Antimicrobial, Real Drain
Stainless Steel
115V/60Hz
Flexi-Guard™ Safety
Electronic Bottle Filler Sensor With
Mechanical Front Bubbler Button
Wall Mount (In-Wall Frame/Plate)
8.0 GPH
1
370
38-1/2" x 19" x 55-1/16"
173 lbs.
Indoor
2
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.

Included with Product:

PRODUCT COMPLIANCE

ADA
Buy American Act
CAN/CSA C22.2 No. 120
®
GreenSpec
NSF/ANSI 42, 53, 61, and 372 (lead free)
UL 399
Installation Instructions (PDF) - 1000003097
Installation Instructions (PDF) - 0000001030
Installation Instructions (PDF) - 0000001027
5 Year Limited Warranty on the refrigeration system of the unit.
Electrical components and water system are warranted for 12
months from date of installation. Warranty pertains to drinking
water applications only. Non-drinking water applications are
not covered under warranty.
Warranty (PDF)

OPTIONAL ACCESSORIES

51300C - WaterSentry Plus Replacement Filter (Bottle Fillers)
WSF6000R-2PK - WaterSentry Fresh 6000 CTO Filter -
Replacement (2pack)
LKAPR1 - Accessory - Cane Apron for SwirlFlo®
ACCESS12X38-5 - Accessory - Access Panel
2222 Camden Court
Oak Brook, IL 60523
Refrigerated Filtered Stainless
Model LZWS-LRPBM28K
Fountain with Integral Bottle Filling
Station (LRPBD28WSC),
Mounting Frame (MFWS210),
Chiller (ECH8),
Filter
© 2017
LZWS-LRPBM28K
Page 1 of 4
