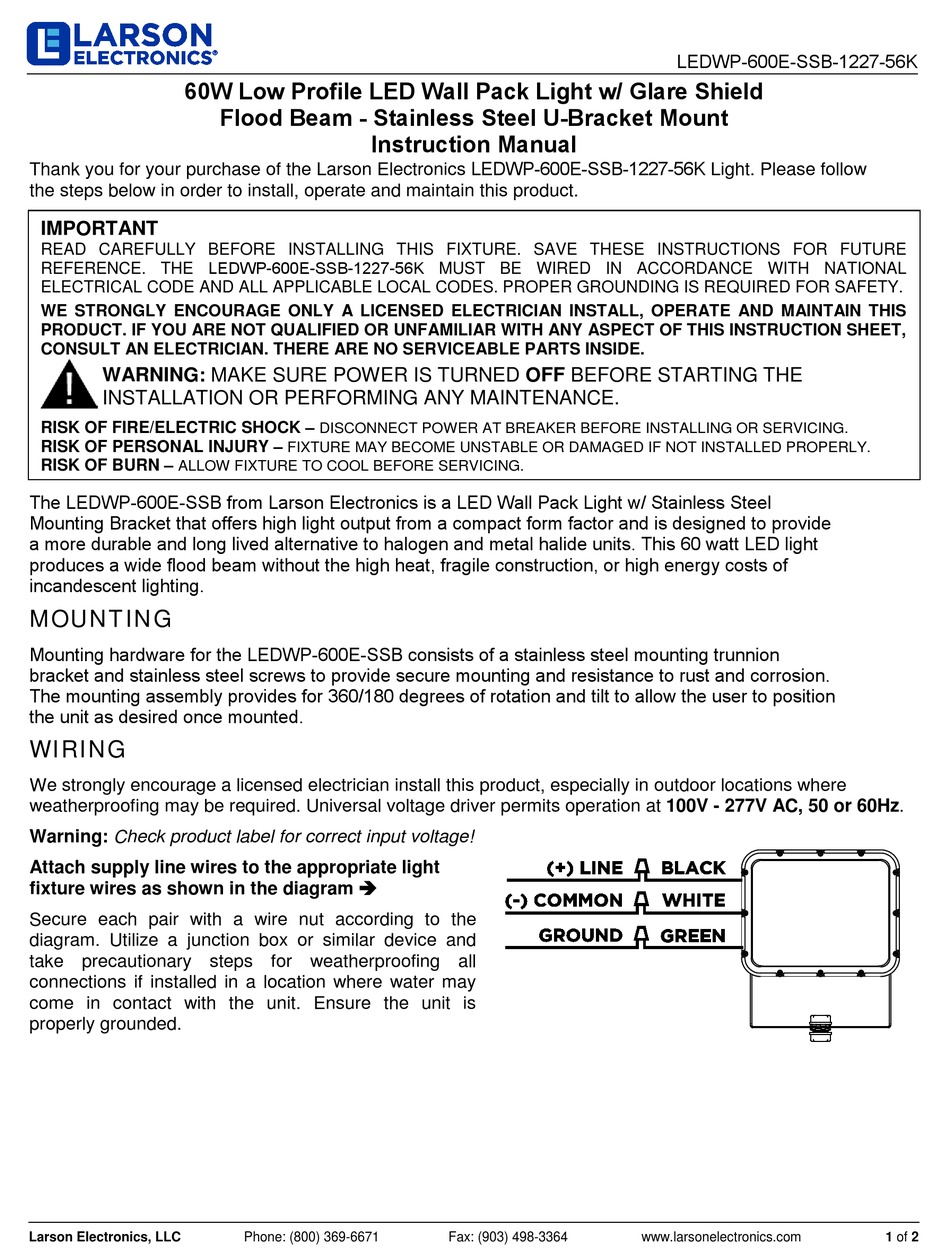

Larson Electronics LEDWP-600E-SSB-1227-56K Instruction Manual

60W Low Profile LED Wall Pack Light w/ Glare Shield
Thank you for your purchase of the Larson Electronics LEDWP-600E-SSB-1227-56K Light. Please follow
the steps below in order to install, operate and maintain this product.

IMPORTANT

READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. THE LEDWP-600E-SSB-1227-56K MUST BE WIRED IN ACCORDANCE WITH NATIONAL
ELECTRICAL CODE AND ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.
WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS
PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,
CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.
WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE
INSTALLATION OR PERFORMING ANY MAINTENANCE.
RISK OF FIRE/ELECTRIC SHOCK –
RISK OF PERSONAL INJURY –
RISK OF BURN –
ALLOW FIXTURE TO COOL BEFORE SERVICING.

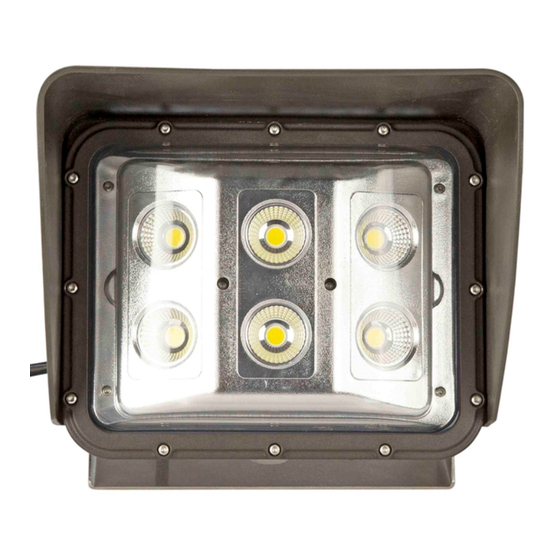

The LEDWP-600E-SSB from Larson Electronics is a LED Wall Pack Light w/ Stainless Steel
Mounting Bracket that offers high light output from a compact form factor and is designed to provide
a more durable and long lived alternative to halogen and metal halide units. This 60 watt LED light
produces a wide flood beam without the high heat, fragile construction, or high energy costs of
incandescent lighting.

MOUNTING

Mounting hardware for the LEDWP-600E-SSB consists of a stainless steel mounting trunnion
bracket and stainless steel screws to provide secure mounting and resistance to rust and corrosion.
The mounting assembly provides for 360/180 degrees of rotation and tilt to allow the user to position
the unit as desired once mounted.

WIRING

We strongly encourage a licensed electrician install this product, especially in outdoor locations where
weatherproofing may be required. Universal voltage driver permits operation at 100V - 277V AC, 50 or 60Hz.
Warning: Check product label for correct input voltage!
Attach supply line wires to the appropriate light
fixture wires as shown in the diagram 
Secure each pair with a wire nut according to the
diagram. Utilize a junction box or similar device and
take precautionary steps for weatherproofing all
connections if installed in a location where water may
come in contact with the unit. Ensure the unit is
properly grounded.
Larson Electronics, LLC
Flood Beam - Stainless Steel U-Bracket Mount
Instruction Manual
DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.
FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.
Phone: (800) 369-6671 Fax: (903) 498-3364
LEDWP-600E-SSB-1227-56K
www.larsonelectronics.com 1 of 2
