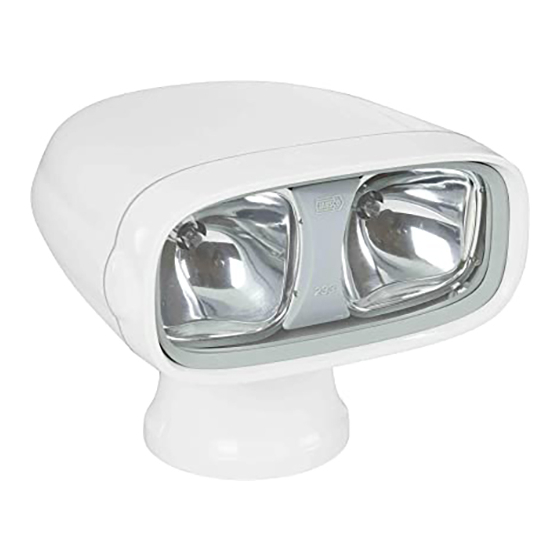

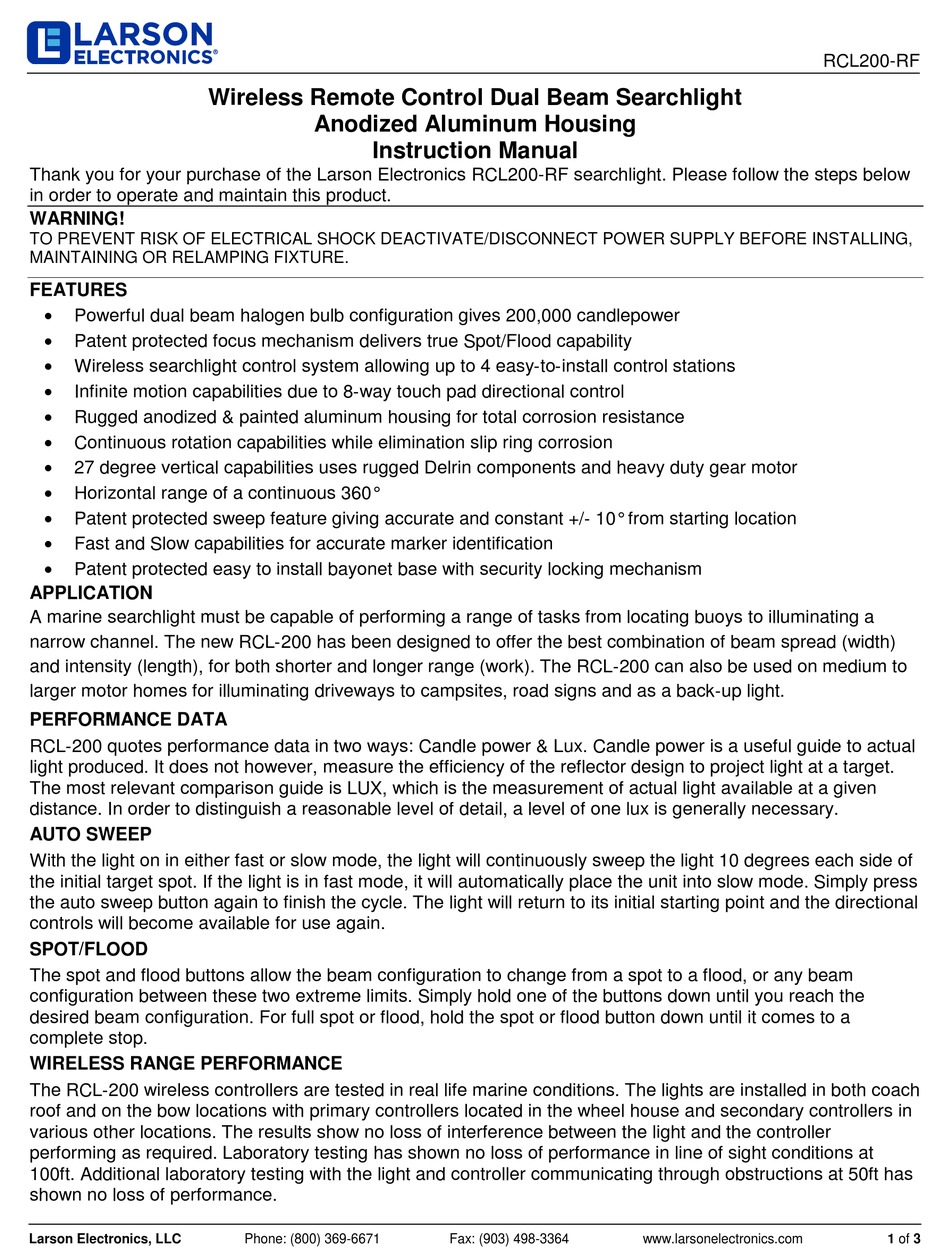

Larson Electronics RCL200-RF Instruction Manual

Thank you for your purchase of the Larson Electronics RCL200-RF searchlight. Please follow the steps below
in order to operate and maintain this product.
WARNING!
TO PREVENT RISK OF ELECTRICAL SHOCK DEACTIVATE/DISCONNECT POWER SUPPLY BEFORE INSTALLING,
MAINTAINING OR RELAMPING FIXTURE.

FEATURES


Powerful dual beam halogen bulb configuration gives 200,000 candlepower

Patent protected focus mechanism delivers true Spot/Flood capability

Wireless searchlight control system allowing up to 4 easy‐to‐install control stations

Infinite motion capabilities due to 8‐way touch pad directional control

Rugged anodized & painted aluminum housing for total corrosion resistance

Continuous rotation capabilities while elimination slip ring corrosion

27 degree vertical capabilities uses rugged Delrin components and heavy duty gear motor

Horizontal range of a continuous 360°

Patent protected sweep feature giving accurate and constant +/‐ 10° from starting location

Fast and Slow capabilities for accurate marker identification

Patent protected easy to install bayonet base with security locking mechanism

APPLICATION

A marine searchlight must be capable of performing a range of tasks from locating buoys to illuminating a
narrow channel. The new RCL‐200 has been designed to offer the best combination of beam spread (width)
and intensity (length), for both shorter and longer range (work). The RCL‐200 can also be used on medium to
larger motor homes for illuminating driveways to campsites, road signs and as a back‐up light.

PERFORMANCE DATA

RCL‐200 quotes performance data in two ways: Candle power & Lux. Candle power is a useful guide to actual
light produced. It does not however, measure the efficiency of the reflector design to project light at a target.
The most relevant comparison guide is LUX, which is the measurement of actual light available at a given
distance. In order to distinguish a reasonable level of detail, a level of one lux is generally necessary.

AUTO SWEEP

With the light on in either fast or slow mode, the light will continuously sweep the light 10 degrees each side of
the initial target spot. If the light is in fast mode, it will automatically place the unit into slow mode. Simply press
the auto sweep button again to finish the cycle. The light will return to its initial starting point and the directional
controls will become available for use again.

SPOT/FLOOD

The spot and flood buttons allow the beam configuration to change from a spot to a flood, or any beam
configuration between these two extreme limits. Simply hold one of the buttons down until you reach the
desired beam configuration. For full spot or flood, hold the spot or flood button down until it comes to a
complete stop.

WIRELESS RANGE PERFORMANCE

The RCL‐200 wireless controllers are tested in real life marine conditions. The lights are installed in both coach
roof and on the bow locations with primary controllers located in the wheel house and secondary controllers in
various other locations. The results show no loss of interference between the light and the controller
performing as required. Laboratory testing has shown no loss of performance in line of sight conditions at
100ft. Additional laboratory testing with the light and controller communicating through obstructions at 50ft has
shown no loss of performance.
Larson Electronics, LLC
Wireless Remote Control Dual Beam Searchlight
Anodized Aluminum Housing
Instruction Manual
Phone: (800) 369-6671 Fax: (903) 498-3364
RCL200-RF
www.larsonelectronics.com 1 of 3
