Larson Electronics Golight Stryker ST Series Instruction Manual

Congratulations

You are now the owner of one of the finest remote control searchlights available today. Thank you for letting Larson
Electronics assist you in your lighting application needs. We're proud of our products and the technology that we've
developed to ensure our customers the most durable, versatile and power-ful searchlights in the lighting industry.
Please read these instructions before using your new Golight Stryker.

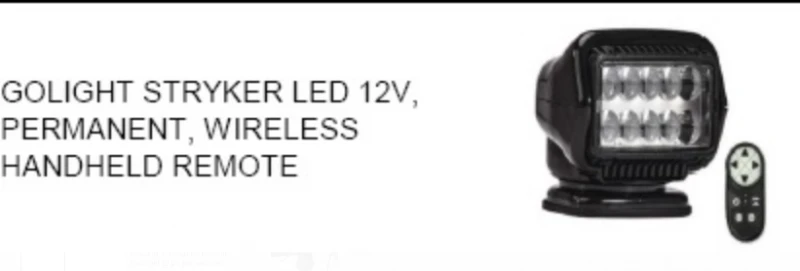

The Golight Stryker ST wireless remote spotlights are designed to be
attached to a vehicle using a magnetic or per-manent mount and
operated by a wireless remote control. Each spotlight has 370°
horizontal rotation and 135° vertical tilt.
The Stryker® ST Includes:
• Stryker® ST Spotlight
• ST Wireless Remote with two AAA 1.5V Batteries
• Rockguard (halogen units only)
Permanent Mount Units Include:
• Mounting Plate
• Three #8-16 x 3/4 inch stainless steel panhead self-tapping screws

MOUNTING INSTRUCTIONS - SPOTLIGHT

Portable Mount
1. Select the best location for mounting the spotlight. Make sure the metal area under the magnetic base is flat and
clean to ensure a strong bond.
2. Aluminum vehicles will require a non magnetic base. Visit our web store at https://www.larsonelectronics.com/
Permanent Mount
1. Determine the location for the light on your vehicle. This should be a flat surface. The small arrow on the base
indicates the normal forward direction of the light. The light will rotate to the left of this arrow 185 degrees and to the
right 185 degrees. The lamp will tilt down 45 degrees and tilt up 90 degrees. The location should take into
consideration this range of motion to maximize usability. Keep in mind the swing diameter is 286 mm (11.3 inches)
from the center of the mounting plate. This allows for clearance as the light is rotating. Refer to golight.com/st-
swingdiameter for diagram.
2. Remove the dog point screw from the mounting plate. Refer to Figure 1. Save this screw for reinstallation. Remove
mounting plate from base.
3. The mounting plate is designed to be mounted with either the supplied sheet metal screws or a combination of cap
screws, nuts and washers. You should choose hardware appropri-ate to the surface to which you intend to attach the
light. Drill holes in mounting surface for either type of hardware depending upon your preference
Refer to Figure 2 for hole pattern dimensions or use the mounting plate as a template. Drill holes and secure mounting
plate with fasteners.
Figure 1 – Stryker® ST viewed from bottom
Larson Electronics, LLC
Golight Stryker ST Series Wireless
Instruction Guide
Phone: (800) 369-6671
Figure 2 – Mounting Plate Hole Dimensions (mm)
Fax: (903) 498-3364
GL-3XXXST Series
www.larsonelectronics.com
1 of 5
