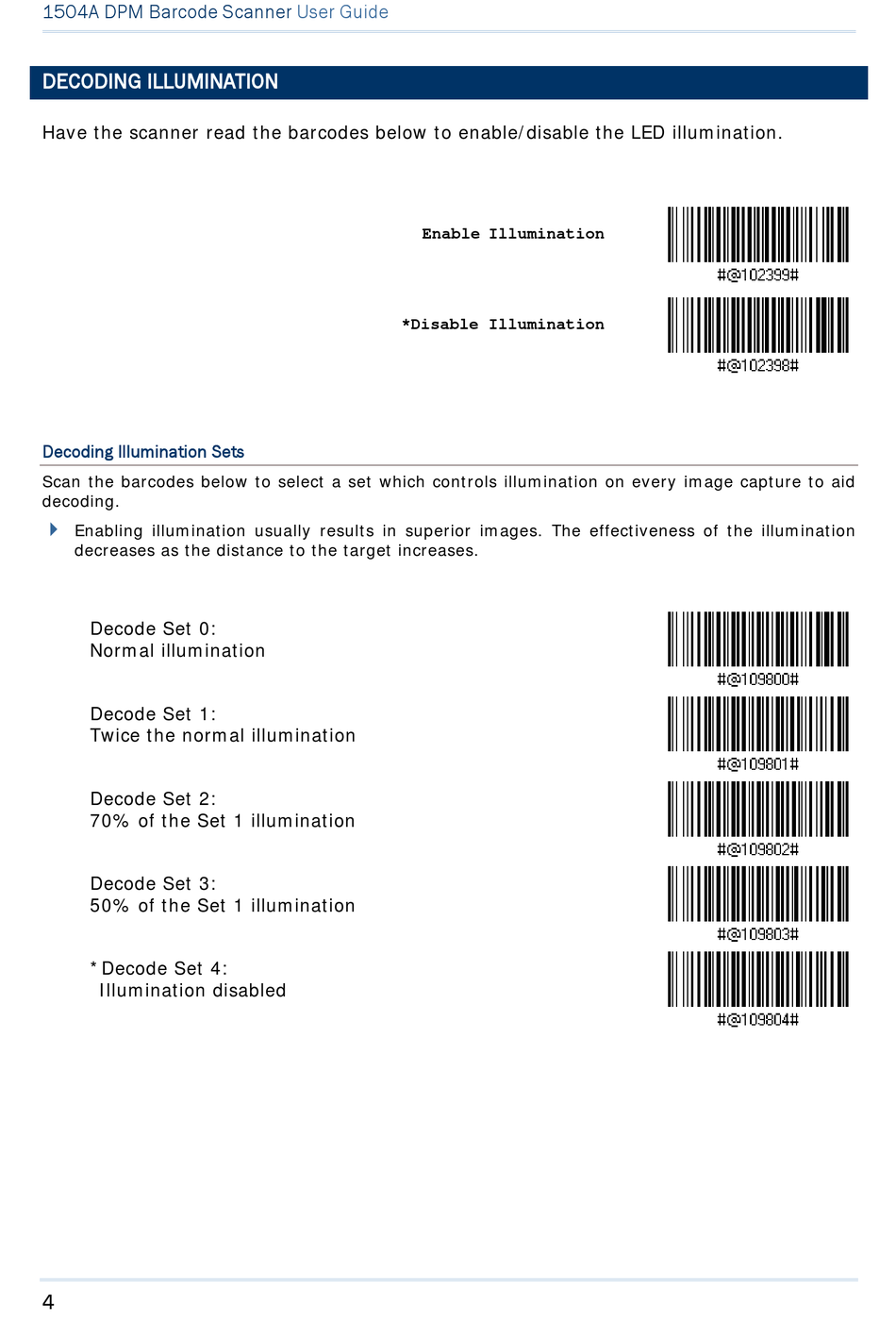

DECODING ILLUMINATION

Have the scanner read the barcodes below to enable/disable the LED illumination.
Decoding Illumination Sets
Scan the barcodes below to select a set which controls illumination on every image capture to aid
decoding.
 Enabling illumination usually results in superior images. The effectiveness of the illumination
decreases as the distance to the target increases.
Decode Set 0:
Normal illumination
Decode Set 1:
Twice the normal illumination
Decode Set 2:
70% of the Set 1 illumination
Decode Set 3:
50% of the Set 1 illumination
*Decode Set 4:
Illumination disabled
4
User Guide
Enable Illumination
*Disable Illumination
