Instructions

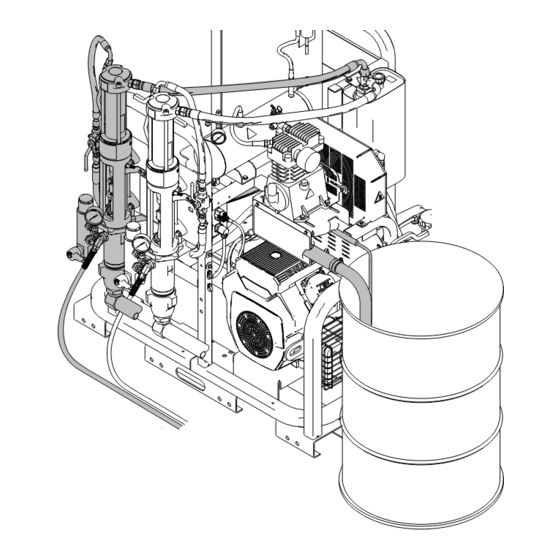

Complete RPS 2900 Pump Kit for
RoadLazer
Model 24G766

Important Safety Instructions

For complete warnings and safety instructions see RoadLazer
RoadPak
Line Striper System manual. Save these instructions.

Pressure Relief Procedure

The system pressure must be manually relieved to pre-
vent the system from starting or spraying accidentally.
Fluid under high pressure can be injected through the
skin and cause serious injury. To reduce the risk of an
injury from injection, splashing fluid, or moving parts,
follow the Pressure Relief Procedure in RoadLazer
RoadPak Line Striping System manual whenever
you:
are instructed to relieve the pressure
stop spraying
check or service any of the system equipment
install or clean the spray tip
1. Flush the system. See Flush System in RoadLazer
RoadPak Line Striping System manual.
2. Relieve pressure. See Pressure Relief Procedure
in RoadLazer RoadPak Line Striping System
manual.
RoadPak
Line Striping System
3A1304A
ENG
ti11724a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RPS 2900 and is the answer not in the manual?

Questions and answers

Summary of Contents for Graco RPS 2900

  • Page 1 Instructions Complete RPS 2900 Pump Kit for 3A1304A ™ ™ RoadLazer RoadPak Line Striping System Model 24G766 Important Safety Instructions ™ For complete warnings and safety instructions see RoadLazer ™ RoadPak Line Striper System manual. Save these instructions. Pressure Relief Procedure The system pressure must be manually relieved to pre- vent the system from starting or spraying accidentally.
  • Page 2 Hose Routing to Pumps and Tanks Hose Routing to Pumps and Tanks ti17274a 3A1304A...
  • Page 3 Second Pump Installation Second Pump Installation 7. Install hose fitting adaptor (21) and attach hydraulic line (25) to outlet of ball valve. Route and secure hose to pump inlet. 1. Install four mounting bolts (6) to mounting plate. 2. Lift pump over mounting bolts (6) and slide down into position.
  • Page 4 Parts Parts ti17213a 3A1304A...
  • Page 5 Parts List Ref. Part Description Qty. 24G767 PUMP, RPS 2900 24G986 FILTER, Assembly, RPS 2900 16J511 SENSOR, proximity, 12 mm 16G421 BRACKET, sensor 112774 SCREW, mach, sltd hex wash HD 120226 SCREW, hex HD, flange 16G414 BRACKET, ball valve 120140 VALVE, ball, assembly...
  • Page 6 With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
