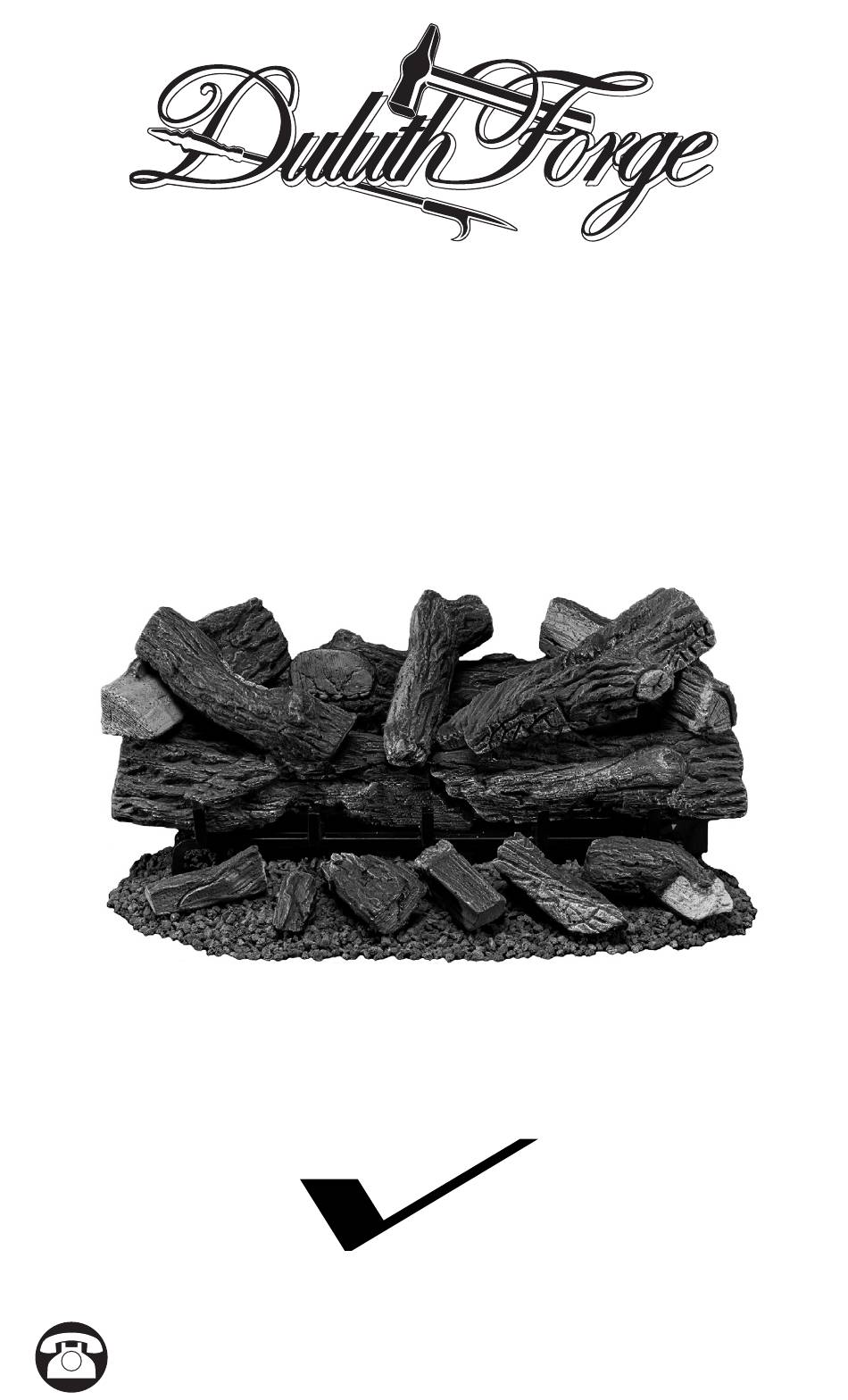

VENT - FREE GAS LOGS
INSTALLATION INSTRUCTIONS
MODELS
FVFLC24 - 1 & FVFLC24 - 2
FVFLC30 - 1 & FVFLC30 - 2
For Use With FDLR24/30-1 Chassis

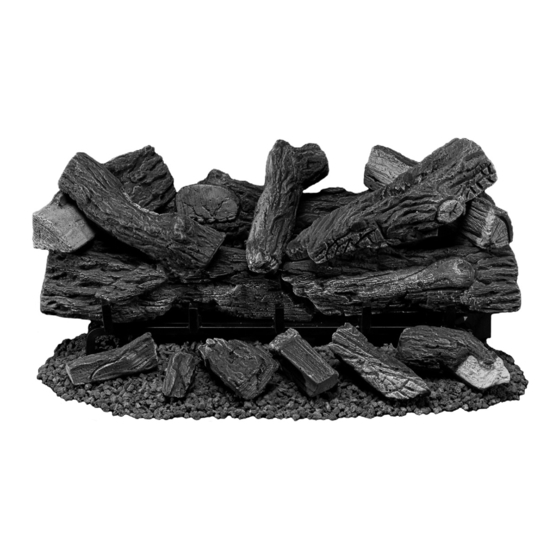

FVFLC30-2 Shown with Lava Rock
and Ember Bed Log Kit - Model FELK
Accessories.
PFS
®
US
Questions, problems, missing parts? Before returning to your retailer, call
our customer service department at 1-855-607-6557, 8:00 am - 4:30 pm CST,
Monday through Friday or email contact@factorybuysdirect.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Duluth Forge FVFLC24-1
Summary of Contents for Duluth Forge FVFLC24-1
- Page 1 VENT - FREE GAS LOGS INSTALLATION INSTRUCTIONS MODELS FVFLC24 - 1 & FVFLC24 - 2 FVFLC30 - 1 & FVFLC30 - 2 For Use With FDLR24/30-1 Chassis FVFLC30-2 Shown with Lava Rock and Ember Bed Log Kit - Model FELK Accessories.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Installation Guidelines ....... 3 Placing Ember Material ......4 Installing Logs..........4 Parts ............7 Warranty ............ 8 SAVE THIS BOOK INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference. This log set has been tested and approved to ANSI Z21.11.2 standard for Unvented Heaters and also com- plies with ANSI Z21.60 Decorative Vented Appliances for Solid Fuel Burning Fireplaces. -
Page 3: Installation Guidelines
INSTALLATION GUIDELINES Proper Log Placement Candles Log placement is critical to proper burner Avoid the use of scented or decorative can- performance. Logs must be correctly posi- dles while the log set is in operation. Candles tioned onto the burner. The illustrations in this produce a residue in the air that creates a soot manual show the proper pinned position for like substance. -
Page 4: Placing Ember Material
PLACING EMBER MATERIAL Separate the ember material into light pieces WARNING: Use only ember smaller than the size of a dime. Place the material provided with log set. pieces around the round gas ports starting in Do not add additional ember the front of the burner and working your way toward the back of the burner. - Page 5 INSTALLING LOGS Some logs have notches to help secure them in place. If applicable, place the log into the notch of the log or logs is it being placed on. See instructions and illustrations below for proper placement. MODEL FVFLC24 - 1 MODEL FVFLC24 - 2 1.
- Page 6 INSTALLING LOGS Some logs have pins and holes to help secure them in place. If applicable, place pin in the log into the hole of the log is it being placed on. See instructions and illustrations below for proper placement. MODEL FVFLC30 - 1 MODEL FVFLC30 - 2 1.
-
Page 7: Parts
This list contains replaceable parts used in your heater. When ordering parts, contact autho- rized dealers of this product or call customer service at 1-855-607-6557. When calling have you model and serial numbers available. ITEM FVFLC24-1 FVFLC24-2 DESCRIPTION FVFLC24-1-1 FVFLC24-2-1 Log 1 FVFLC24-1-2 FVFLC24-2-2 Log 2 FVFLC24-1-3 FVFLC24-2-3 Log 3 FVFLC24-1-4 FVFLC24-2-4... -
Page 8: Warranty
WARRANTY KEEP THIS WARRANTY Model _______________________________ Serial No. ____________________________ Date Purchased _______________________ Keep receipt for warranty verification. REGISTER YOUR PRODUCT AT WWW.FACTORYBUYSDIRECT. FACTORY BUYS DIRECT LIMITED WARRANTIES New Products Standard Warranty: Factory Buys Direct warrants this new product and any parts thereof to be free from defects in material and workmanship for a period of one (1) year from the date of first purchase from an authorized dealer provided the product has been installed, maintained and operated in accordance with Factory Buys Direct’s warnings and instructions.
