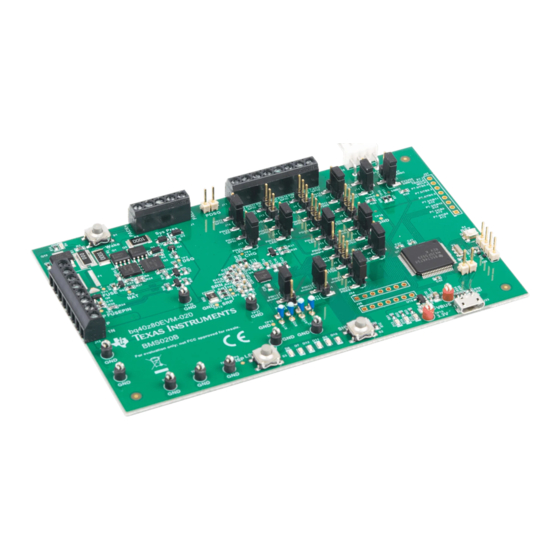

bq40z80EVM Li-Ion Battery Pack Manager Evaluation
This evaluation module (EVM) is a complete evaluation system for the bq40z80 battery management
system. The EVM includes one bq40z80, two bq771807 secondary protectors, and a link to Microsoft
Windows
based PC software. The circuit module includes one bq40z80 integrated circuit (IC), two
®
bq771807 secondary protectors, and all other onboard components necessary to monitor and predict
capacity, perform cell balancing, monitor critical parameters, protect the cells from overcharge, over-
discharge, short-circuit, and overcurrent in 2-, 3-, 4-, 5-, 6-, or 7-series cell Li-ion or Li-polymer battery
packs. The circuit module connects directly across the cells in a battery. The bq40z80EVM can use the
on-board EV2400 or an external EV2400 interface board and software to read the bq40z80 data registers,
program the chipset for different pack configurations, log cycling data for further evaluation, and evaluate
the overall functionality of the solution under different charge and discharge conditions.
.......................................................................................................................
1
1.1
1.2
1.3
1.4
2
2.1
2.2
2.3
2.4
3
3.1
3.2
3.3
3.4
3.5
3.6
4
4.1
4.2
4.3
4.4
4.5
5
5.1
5.2
6
7
1
2
Registers Screen
3
SLUUBZ5 - November 2018
..........................................................................................................
...............................................................................................
......................................................................................................
...........................................................................................
................................................................................................
...................................................................................................
....................................................................................................
................................................................................................
....................................................................................................
..................................................................................................
.................................................................................................
..................................................................................................
..................................................................................
................................................................................
.........................................................................................................
......................................................................................................
........................................................................................................
............................................................................................
....................................................................................
.........................................................................................
.......................................................................................................
........................................................................................
............................................................................................
............................................................................................................
........................................................................................................
Copyright © 2018, Texas Instruments Incorporated
Contents
..................................................................
........................................................................
......................................................................
.........................................
User's Guide
SLUUBZ5 - November 2018
Module
®
2
2
2
2
.............................
2
3
3
3
4
5
6
6
7
8
10
11
12
14
15
15
15
15
15
16
16
22
24
28
4
6
7
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments bq40z80EVM
Summary of Contents for Texas Instruments bq40z80EVM
-
Page 1: Table Of Contents
2-, 3-, 4-, 5-, 6-, or 7-series cell Li-ion or Li-polymer battery packs. The circuit module connects directly across the cells in a battery. The bq40z80EVM can use the on-board EV2400 or an external EV2400 interface board and software to read the bq40z80 data registers, program the chipset for different pack configurations, log cycling data for further evaluation, and evaluate the overall functionality of the solution under different charge and discharge conditions. -
Page 2: Features
Microsoft, Windows are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective owners. Features • Complete evaluation system for the bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module and bq771807 independent overvoltage protection ICs • Populated circuit module for quick setup •... -
Page 3: Bq40Z80Evm Quick Start Guide
Use the following steps to install the bq40z80 Battery Management Studio software: 1. Download and run the Battery Management Studio setup program from the Development Tools section of the bq40z80EVM product folder on www.ti.com. See Section 3 for detailed information on using the tools in the Battery Management Studio. -
Page 4: Evm Connections
⊕ -cell6+ ⊕ short ⊕ ⊕ -cell1+ ⊕ -cell2+ ⊕ -cell3+ ⊕ -cell4+ ⊕ -cell5+ ⊕ -cell6+ ⊕ ⊕ cell7+ bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module SLUUBZ5 – November 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 5: Update Firmware
Use the following steps to install the bq40z80 Battery Management Studio software: 1. Run Battery Management Studio from the Start | Programs | Texas Instruments | Battery Management Studio menu sequence, or the Battery Management Studio shortcut. -
Page 6: Battery Management Studio
Battery Management Studio Registers Screen Run Battery Management Studio from the Start | Programs | Texas Instruments | Battery Management Studio menu sequence, or the Battery Management Studio shortcut. The Registers screen (see Figure appears. The Registers section contains parameters used to monitor gauging. The Bit Registers section provides bit level picture of status and fault registers. -
Page 7: Setting Programmable Bq40Z80 Options
NOTE: The correct setting of these options is essential to get the best performance. The settings can be configured using the Data Memory screen (see Figure Figure 3. Data Memory Screen SLUUBZ5 – November 2018 bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 8: Calibration Screen
Press the Calibrate Gas Gauge button to calibrate the temperature measurement system. • Deselect the Calibrate boxes after temperature calibration has completed. bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module SLUUBZ5 – November 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... - Page 9 Current Calibration The Board Offset calibration option is not offered in Battery Management Studio, because it is not required when using the bq40z80EVM. The Board Offset calibration option is available in bqProduction. • Connect and measure a 2-A current source from 1N (–) and Pack– (+) to calibrate without using the FETs.
-
Page 10: Chemistry Screen
Select the ChemID that matches your cell from the table (see Figure • Press the Update Chemistry in the Data Flash button to update the chemistry in the device. bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module SLUUBZ5 – November 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 11: Firmware Screen
• Press the Read Srec to save the flash memory contents to the file. Wait for the download to complete. SLUUBZ5 – November 2018 bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 12: Advanced Comm Smb Screen
Press the Advanced Comm SMB button to select the Advanced SMB Comm window. This tool provides access to parameters using SMB and Manufacturing Access commands. See Figure Figure 7. Advanced Comm Screen bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module SLUUBZ5 – November 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... - Page 13 Read the result from ManufacturerData() – SMBus Read Block. Command = 0x23. Data read = 00 01 – That is 0x0100, chem ID 100 SLUUBZ5 – November 2018 bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
-
Page 14: Bq40Z80Evm Circuit Module Schematic
The jumpers on the board allow different pin configurations. The pin configuration in the registers must match the jumper configuration on the bq40z80EVM . The Pin Configuration register can be set in the Data Memory section of bqStudio. If a register is set to an undefined setting, the output is configured as high-Z. -
Page 15: Pre-Charge
A chemical fuse can also be soldered to the EVM for in-system testing. When using the chemical fuse, remove the shorting resistor R1 from the board. SLUUBZ5 – November 2018 bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 16: Circuit Module Physical Layouts
This section shows the dimensions, PCB layers (see through ), and assembly drawing for the bq40z80 modules. Figure 8. bq40z80EVM RevB Top Composite bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module SLUUBZ5 – November 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... - Page 17 Circuit Module Physical Layouts www.ti.com Figure 9. bq40z80EVM RevB Bottom Composite SLUUBZ5 – November 2018 bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
- Page 18 Circuit Module Physical Layouts www.ti.com Figure 10. bq40z80EVM RevB Top Layer bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module SLUUBZ5 – November 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
- Page 19 Circuit Module Physical Layouts www.ti.com Figure 11. bq40z80EVM RevB Internal Layer 2 - GND SLUUBZ5 – November 2018 bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
- Page 20 Circuit Module Physical Layouts www.ti.com Figure 12. bq40z80EVM RevB Internal Layer 3 - Signal bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module SLUUBZ5 – November 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
- Page 21 Circuit Module Physical Layouts www.ti.com Figure 13. bq40z80EVM RevB Bottom Layer SLUUBZ5 – November 2018 bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
-
Page 22: Bq40Z80 Revbschematic
Circuit Module Physical Layouts www.ti.com bq40z80 RevBSchematic NOTE: The bq40z80EVM-020 has an incorrect implementation for the reverse polarity circuit. For proper charge and discharge behavior, D3 and R7 should be removed. This will be corrected on a future version of the EVM. - Page 23 Circuit Module Physical Layouts www.ti.com SLUUBZ5 – November 2018 bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
-
Page 24: Bq40Z80Evm Bill Of Materials
87898-0304 Molex J18, J20, J21, J22 Terminal Block, 3.5mm, 8- Terminal Block, 3.5mm, 8-Pos, TH ED555/8DS On-Shore Technology Pos, TH bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module SLUUBZ5 – November 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... - Page 25 Vishay-Dale 0, 0603 RES, 5.1 k, 5%, 0.1 W, AEC-Q200 Grade 0, R22, R27, R34 5.1k 0603 CRCW06035K10JNEA Vishay-Dale 0603 SLUUBZ5 – November 2018 bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
- Page 26 Red Compact Testpoint 5005 Keystone Family 2-5S Overvoltage Protector with U1, U3 DPJ0008A BQ771807DPJR Texas Instruments Internal Delay Timer, DPJ0008A (WSON-8) bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module SLUUBZ5 – November 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
- Page 27 Header, 2.54 mm, 7x1, TH PBC07SAAN Solutions Sullins Connector Header, 100mil, 8x1, Tin, TH Header, 8x1, 100mil, TH PEC08SAAN Solutions SLUUBZ5 – November 2018 bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
-
Page 28: Related Documentation From Texas Instruments
How to Complete a Successful Learning Cycle, SLUA848 • bq771807, BQ7718XY Overvoltage Protection for 2-Series, 3-Series, 4-Series, and 5-Series Cell Li-Ion Batteries with Regulated Output Supply, SLUSBU5 bq40z80EVM Li-Ion Battery Pack Manager Evaluation Module SLUUBZ5 – November 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... - Page 29 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
