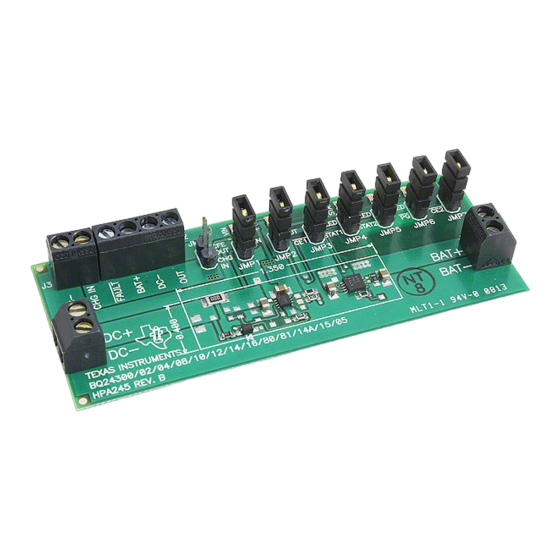

bq2430x/1x/8x DSG EVM (HPA245) for Li+ Charger
The bq2430x/1x/8x evaluation module is a complete charger module for evaluating a charger front-end
protection and charger solution using the bq2430x/1x/8x and bq24080 devices. This user's guide presents
test summary information, printed-circuit board layout guidelines, bill of materials, board layout, and
schematics.
...................................................................................................................
1
2
3
4
1
2
3
...................................................................................................................
4
5
6
7
1
Introduction
1.1
EVM Features
•
Evaluation module for bq2430x, bq2431x, and bq2438x DSG
•
Evaluation module for bq24080 charger integrated circuit (IC)
•
Evaluation module for bq2430x/1x/8x and bq24080 chipset solution
•
Input operating range for bq2430x/1x/8x 4.5 V-26 V
•
Input operating range for bq24080 4.5 V-6.5 V
•
Input overvoltage protection
•
Input overcurrent protection
•
Battery overvoltage protection
•
Input reverse voltage protection for bq2430x
•
LED indication for status signals
•
Test points for key signals available for testing purpose. Easy probe hook-up
•
Jumpers available. Easy to change connections
SLUU291B - August 2007 - Revised November 2016
Submit Documentation Feedback
................................................................................................................
.......................................................................................................
................................................................................................................
..............................................................................................................
...............................................................................................................
bq2430x/1x/8x DSG EVM (HPA245) for Li+ Charger Front-End Protection IC
Copyright © 2007-2016, Texas Instruments Incorporated
SLUU291B - August 2007 - Revised November 2016
Front-End Protection IC
........................................................................
List of Figures
..........................................................
......................................................
..........................................................
User's Guide
1
3
7
8
4
6
6
10
10
10
11
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments BQ2430 Series
Summary of Contents for Texas Instruments BQ2430 Series
-
Page 1: Table Of Contents
Test points for key signals available for testing purpose. Easy probe hook-up • Jumpers available. Easy to change connections SLUU291B – August 2007 – Revised November 2016 bq2430x/1x/8x DSG EVM (HPA245) for Li+ Charger Front-End Protection IC Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated... - Page 2 Charge current, I Battery charge current 0.02–0.07 0.2–0.7 chrg Operating junction °C temperature range, T bq2430x/1x/8x DSG EVM (HPA245) for Li+ Charger Front-End Protection IC SLUU291B – August 2007 – Revised November 2016 Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated...
-
Page 3: Test Summary
(A) Set the power supply #1 for 0 V ± 100 mVDC, 2 ± 0.1-A current limit and then disable the output. (B) Connect the output of power supply #1 to J1 (DC+, DC–) SLUU291B – August 2007 – Revised November 2016 bq2430x/1x/8x DSG EVM (HPA245) for Li+ Charger Front-End Protection IC Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated... -
Page 4: Original Test Setup For Hpa245 (Bq2430X/1X/8X Dsg Evm)
Measure → V(J2(OUT)) = 5 V ± 200 mV (For HPA245-004, -005, -006, -007, -008, -010, -011, 012, - bq2430x/1x/8x DSG EVM (HPA245) for Li+ Charger Front-End Protection IC SLUU291B – August 2007 – Revised November 2016 Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated... - Page 5 7. After the preceding steps, the test setup for HPA245 (bq2430x/1x/8x DSG EVM) is shown in Figure SLUU291B – August 2007 – Revised November 2016 bq2430x/1x/8x DSG EVM (HPA245) for Li+ Charger Front-End Protection IC Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated...
-
Page 6: Charger Ic Test Setup For Hpa245 (Bq2430X/1X/8X Dsg Evm)
Measure → Ibat = 200 mA ±20 mA (For HPA245-001, -002, -003, -004, -013 only). bq2430x/1x/8x DSG EVM (HPA245) for Li+ Charger Front-End Protection IC SLUU291B – August 2007 – Revised November 2016 Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated... -
Page 7: Pcb Layout Guideline
4. Resistors for ILIM and VLIM must be placed close to the corresponding IC pins and the interconnections to the IC made as short as possible. SLUU291B – August 2007 – Revised November 2016 bq2430x/1x/8x DSG EVM (HPA245) for Li+ Charger Front-End Protection IC Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated... -
Page 8: Bill Of Materials, Board Layout, And Schematics
Std in part number column means standard manufacturer’s part number Std in MFR column means standard manufacturer Bill of Materials — bq24380/1/14A/15/05 bq2430x/1x/8x DSG EVM (HPA245) for Li+ Charger Front-End Protection IC SLUU291B – August 2007 – Revised November 2016 Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated... - Page 9 Std in part number column means standard manufacturer’s part number Std in MFR column means standard manufacturer . SLUU291B – August 2007 – Revised November 2016 bq2430x/1x/8x DSG EVM (HPA245) for Li+ Charger Front-End Protection IC Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated...
-
Page 10: Top Layer
Board Layout Figure 4. Top Layer Figure 5. Bottom Layer Figure 6. Top Silkscreen bq2430x/1x/8x DSG EVM (HPA245) for Li+ Charger Front-End Protection IC SLUU291B – August 2007 – Revised November 2016 Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated... -
Page 11: Top Assembly
Bill of Materials, Board Layout, and Schematics www.ti.com Figure 7. Top Assembly Schematics The bq2430x/1x/8x DSG EVM schematic follows. SLUU291B – August 2007 – Revised November 2016 bq2430x/1x/8x DSG EVM (HPA245) for Li+ Charger Front-End Protection IC Submit Documentation Feedback Copyright © 2007–2016, Texas Instruments Incorporated... - Page 12 Revision History www.ti.com Copyright © 2016, Texas Instruments Incorporated Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from A Revision (April 2008) to B Revision ....................Page • Changed pin name for pin 3 in the IC pin names when U1 is: table of the schematics for the bq24312 from 'VLIM' to ............................
